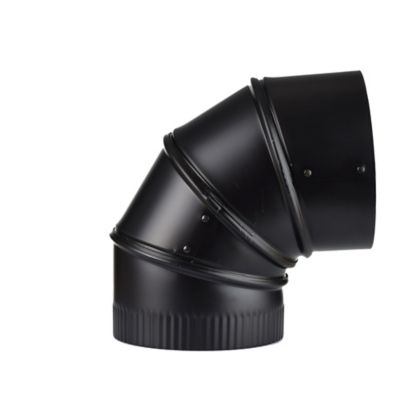

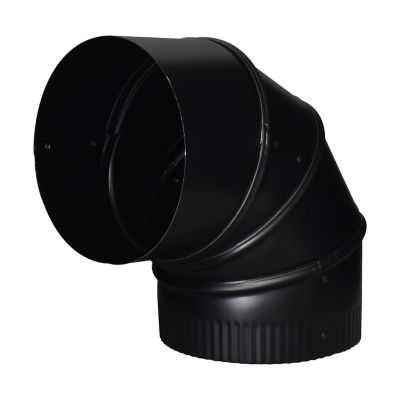

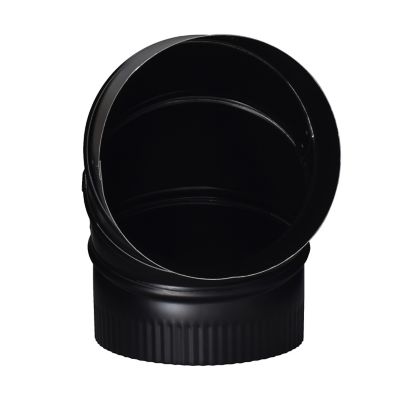

Imperial 6 in. x 90 deg. Black Stove Pipe Elbow, BM0014-C

Product Rating is 4.3
 4.3  (23)
SKU: 319607099
Enter Zip Code for price More Info

Sale Save Up To

See price at checkout
Pricing Display Information

Financing Available Learn More

Use this adjustable elbow to change direction in a wood stove venting system

  • Elbow is adjustable from 0 degrees to 90 degrees
  • Can be used to make angular or gradual turns
  • 24 gauge pre-painted black steel construction
  • Male end is crimped for easy assembly to round pipe or fittings of same diameter
  • Satin Black finish
  • Crimped end should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe
  • Each connection should be secured using minimum of 3 sheet metal screws
  • Unshielded minimum clearance to combustible materials is 18 in.

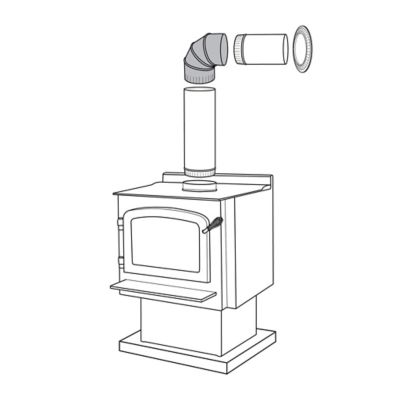

A single-wall black pipe system is an economical way to vent from a woodstove to the entrance of a chimney or where the system breaches a wall or ceiling.

Additional Product Information
The quantity requested exceeds available inventory.
Store:Cape Girardeau MO Change Store
Please lower quantity or check availability at nearby stores
Check availability at nearby stores
Call Store for availability or check availability at nearby stores

Curbside / Pickup In Store

cape girardeau MO Change Store Item is currently not available for Pickup at this store. Check availability at nearby stores

Standard Delivery

Item is not eligible for Standard Delivery.

Standard Delivery

Item is currently not available for Standard Delivery. Check other delivery options.
Curbside / Pickup and Delivery Information Click here for more details...
Add to list

Product Details

Use this adjustable elbow to change direction in a wood stove venting system

  • Elbow is adjustable from 0 degrees to 90 degrees
  • Can be used to make angular or gradual turns
  • 24 gauge pre-painted black steel construction
  • Male end is crimped for easy assembly to round pipe or fittings of same diameter
  • Satin Black finish
  • Crimped end should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe
  • Each connection should be secured using minimum of 3 sheet metal screws
  • Unshielded minimum clearance to combustible materials is 18 in.
A single-wall black pipe system is an economical way to vent from a woodstove to the entrance of a chimney or where the system breaches a wall or ceiling.

Specifications

Specification Description
Brand Imperial
Outer Diameter 6 in.
Thickness 24 gauge
Part Number BM0014-C
Number of Pieces 1
Product Height 9 in.
Country of Origin Made in USA
Product Weight 1.34 lb.
Type Adjustable Elbow
Minimum Product Length 9 in.
Indoor and/or Outdoor Indoor
Finish Satin BLACK
Inner Diameter 6 in. nominal
Installation Orientation Vertical
Maximum Temperature 800
Maximum Diameter 6 in.
Material Steel
Minimum Diameter 6 in.
Product Length 9 in.
Special Feature(s) Segmented for making turns from 0 to 90 degrees
Application/Use Adjustable Elbow can change the direction of a single wall vent system for wood stoves
Compatibility Compatible with 6 in. single wall stove pipe and fittings
Product Width 6 in.
Wall Type Single Wall
Manufacturer Part Number BM0014-C

Reviews

Imperial 6 in. x 90 deg. Black Stove Pipe Elbow, BM0014-C is rated 4.3 out of 5 by 23.
Rated 1 out of 5 by from Help I do not have the 3 pices yet, were they pleasr need them.
Date published: 2020-04-29
Rated 5 out of 5 by from works great Used two of these elbows when installing my wood stove 4 months ago, have had no issues at all.
Date published: 2020-02-24
Rated 5 out of 5 by from Stove pipe Product arrived quickly and was in excellent shape. Worked as they should.
Date published: 2018-12-11
Rated 4 out of 5 by from Stove pipe elbows I have not installed them yet, but they are exactly what I thought. Seems to be heavy duty.
Date published: 2018-12-02
  • y_2020, m_9, d_21, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_16, tr_7
  • loc_en_US, sid_319607099, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

Questions & Answers

Is this adjustable to 45° How does it adjust?

Asked by: Brett23
the elbow is in sections that rotate.
Answered by: Imperial Manufacturing
Date published: 2017-11-15

What gauge (thickness rating) is this stove pipe elbow?

Asked by: DPag
The gauge of the elbow is 24.
Answered by: BrittanyH
Date published: 2016-09-01
  • y_2020, m_9, d_21, h_15CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_en_US, sid_319607099, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • QUESTIONS, PRODUCT

Documents

Attachments (  1 - 1 of 1  )
pdf Imperial BM0014-C Manual 1
