Imperial 6 in. x 24 in. Stove Pipe, Black
Imperial 6 in. x 24 in. Stove Pipe, Black
Item # 319606299
Stocked & Ready
$16.99
Spend $49.99 to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
$16.99
Spend $49.99 to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Lower Price at this Store
Only $7.49
each
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Imperial 6 in. x 24 in. Black Stove Pipe is used to connect your wood stove to entrance of the chimney. This black stove pipe features a 24 gauge pre-painted black steel construction and has a satin black finish. The male end of this high-quality stove pipe is crimped for easy assembly to round pipe or fittings of the same diameter. The crimped end should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe. Our single-wall snap-lock black pipe system is an economical way to vent from a wood stove to the entrance of a chimney or where the system breaches a wall or ceiling
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Features a 24 gauge pre-painted black steel construction

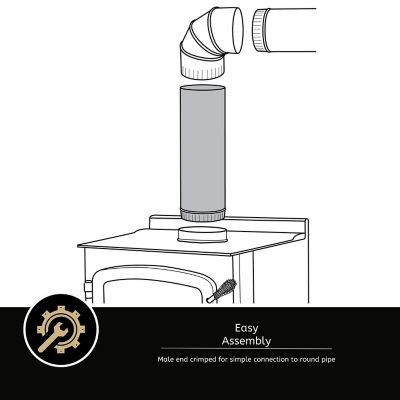

- Male end of this high-quality stove pipe is crimped for easy assembly to round pipe or fittings of the same diameter
- Black stove pipe with satin black finish
- Crimped end should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe
- Each connection should be secured using minimum of 3 sheet metal screws
- Unshielded minimum clearance to combustible materials is 18 in.
- Snap lock assembly
- Imperial single-wall snap-lock black pipe system is an economical way to vent from a wood stove to the entrance of a chimney or where the system breaches a wall or ceiling
| Brand | Imperial |
|---|---|
| Country of Origin | Made in USA |
| Burner System | N/A |
| Cabinet or Housing Material | Steel |
| Coverage Area | 0 N/A |
| Features | Easy Assembly |
| Finish | Satin |
| Fuel Flow Rate | 0 N/A |
| Fuel Type | None |
| Furnace Installation Type | Up-Flow |
| Heater Control | None |
| Heating Unit Type | N/A |
| Ignition Type | None |
| Indoor/Outdoor | Indoor |
| Intended Use Grade | Residential |
| Maximum BTU Heat Output | 0 N/A |
| Mounting Location | Other |
| Number Of Heat Settings | N/A |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 24 in. |
| Product Weight | 3.05 lb. |
| Product Width | 6 in. |
| Run Time | 0 hrs |
| Warranty | N/A |
| Manufacturer Part Number | BM0111-C |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 15 Questions
Newest questions
Q: Can this be used for exterior use for a wood burning stove?
11 months ago1 Answer
- A: Hello, thank you for your question. It is not recommended for outdoor use.11 months agoHelpful?
Q: Can I use this pipe to vent my coal stove?
2 years ago1 Answer
- A: Hi, Here is the information we received from the vendor- "Any of our Black 6” or 8” (24ga) Black Pipe can be used with coal stoves. Our pipe will work as single wall pipe, however with certain types of coal, it may deteriorate much faster than with a wood burning application. I would always still defer to any local codes/ordinances prior to installation."2 years agoHelpful?
Q: Are these Imperial pipes, connectors, compatible w your DuraPlus thimbles? If not which 6” thimble is compatible?
2 years ago1 Answer
- A: Hi KPNC, According to the vendor: Yes, our Imperial stove pipe pairs with the DuraPlus Thimble. Just a reminder, it's crucial that the thimble and the pipe or fitting share the same diameter.2 years agoHelpful?
Q: Does it come in 5”
3 years ago1 Answer
- A: We do not carry this stove pipe in a 5" length.3 years agoHelpful?
Q: Am looking for 6"x48" single wall black stove/flue pipe. Can pickup in your Fayetteville ga store. I need three sections. We have other connectors in shop. Thanks Kelley Philips 7706520674.
4 years ago1 Answer
- A: For special orders, please contact your local TSC store.4 years agoHelpful?
Q: Approximately how high does pipe need to be from roof,above in the air in order for the heater to "draw" properly? And, Does it come in longer pieces?
4 years ago1 Answer
- A: The top of the flue opening should be at least 10 Ft (3.1 m) away from any roof surface as measured by a horizontal line drawn from the top of the chimney flue opening to where it would touch the roof surface. The top of the flue opening should be 3 Ft (0.92 m) above any roof surface.4 years agoHelpful?
Q: Can this be cut to size in the store?
4 years ago1 Answer
- A: You would need to contact the store directly for instore cutting options.4 years agoHelpful?
Q: Iwant to run the pipe thru roof of screened porch, is that possible?
5 years ago1 Answer
- A: This imperial single-wall snap-lock black pipe system is an economical way to vent from a wood stove to the entrance of a chimney or where the system breaches a wall or ceiling.5 years agoHelpful?
Q: Does the seam need to be caulked with high temperature caulking? Also does the collar need to be caulking as well during installation?
5 years ago1 Answer
- A: Caulking should not be needed.5 years agoHelpful?
Q: Can this be buried? So you dont think Im crazy, Im looking for a solution to provide an air duct into the bottom of a fire pit (and allow for water drainage out).
5 years ago2 Answers
- A: Any time steel pipe is buried, it will rust out in a short period of time. This pipe is no different. It is not intended for burial. If you are looking for a short term temporary fix for an event, almost anything will do. l would advise using something like a clay tile pipe for this. It would last a long time.5 years agoHelpful?
1 - 10 of 15 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 15 Questions
Newest questions
Q: Can this be used for exterior use for a wood burning stove?
11 months ago1 Answer
- A: Hello, thank you for your question. It is not recommended for outdoor use.11 months agoHelpful?
Q: Can I use this pipe to vent my coal stove?
2 years ago1 Answer
- A: Hi, Here is the information we received from the vendor- "Any of our Black 6” or 8” (24ga) Black Pipe can be used with coal stoves. Our pipe will work as single wall pipe, however with certain types of coal, it may deteriorate much faster than with a wood burning application. I would always still defer to any local codes/ordinances prior to installation."2 years agoHelpful?
Q: Are these Imperial pipes, connectors, compatible w your DuraPlus thimbles? If not which 6” thimble is compatible?
2 years ago1 Answer
- A: Hi KPNC, According to the vendor: Yes, our Imperial stove pipe pairs with the DuraPlus Thimble. Just a reminder, it's crucial that the thimble and the pipe or fitting share the same diameter.2 years agoHelpful?
Q: Does it come in 5”
3 years ago1 Answer
- A: We do not carry this stove pipe in a 5" length.3 years agoHelpful?
Q: Am looking for 6"x48" single wall black stove/flue pipe. Can pickup in your Fayetteville ga store. I need three sections. We have other connectors in shop. Thanks Kelley Philips 7706520674.
4 years ago1 Answer
- A: For special orders, please contact your local TSC store.4 years agoHelpful?
Q: Approximately how high does pipe need to be from roof,above in the air in order for the heater to "draw" properly? And, Does it come in longer pieces?
4 years ago1 Answer
- A: The top of the flue opening should be at least 10 Ft (3.1 m) away from any roof surface as measured by a horizontal line drawn from the top of the chimney flue opening to where it would touch the roof surface. The top of the flue opening should be 3 Ft (0.92 m) above any roof surface.4 years agoHelpful?
Q: Can this be cut to size in the store?
4 years ago1 Answer
- A: You would need to contact the store directly for instore cutting options.4 years agoHelpful?
Q: Iwant to run the pipe thru roof of screened porch, is that possible?
5 years ago1 Answer
- A: This imperial single-wall snap-lock black pipe system is an economical way to vent from a wood stove to the entrance of a chimney or where the system breaches a wall or ceiling.5 years agoHelpful?
Q: Does the seam need to be caulked with high temperature caulking? Also does the collar need to be caulking as well during installation?
5 years ago1 Answer
- A: Caulking should not be needed.5 years agoHelpful?
Q: Can this be buried? So you dont think Im crazy, Im looking for a solution to provide an air duct into the bottom of a fire pit (and allow for water drainage out).
5 years ago2 Answers
- A: Any time steel pipe is buried, it will rust out in a short period of time. This pipe is no different. It is not intended for burial. If you are looking for a short term temporary fix for an event, almost anything will do. l would advise using something like a clay tile pipe for this. It would last a long time.5 years agoHelpful?
1 - 10 of 15 Questions
Similar Items
Items You May Like
Reviews
Summary of Reviews
The stove pipe is generally considered a high-quality and affordable product that meets customer needs. The majority of customers found the pipe to be easy to install and perform well. However, some customers encountered issues with the pipe being bent or out of round upon delivery, requiring extra ...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
4 out of 5 stars.
long lasting
16 years ago
I have used other brands and gauges of stove pipe before until i purchased imperial. This pipe lasts for several years and is defenitely worth the money. The only drawback is the paint will smoke a little bit if you get a hot spot but it will quit.
18 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
There are Better
12 years ago
The packaging deforms the pipe to the point the seam is near impossible to snap together. Then it must be massaged to make it round enough to fit together. Will never buy again unless store will assemble and true pipe to round before I Buy it. There are other stove pipes available of same quality without all the hassle.
21 people found this helpful
Show Reviews:
- purchase
- price
- quality
- wood
- installation
- fit
- setup
- satisfaction
1 to 4 of 146 Reviews .
1 – 4 of 146 Reviews
Most Recent
Anonymous
West Tennessee
Review 1
5 out of 5 stars.
24 x 6 inch pipe with delivery
8 months ago
Purchased three sections of six inch stove pipe. Had it home delivered. Good pipe for what I needed. Delivery worked well without damage to pipe.
SweepstakesYes
Yes, I recommend this product.
Iowa
Review 1
5 out of 5 stars.
Just a pipe
9 months ago
As described. Comes unattached, you need to put together. That can be a challenge, but works as described.
SweepstakesYes
Yes, I recommend this product.
Reviews 2
5 out of 5 stars.
Good.
a year ago
Works good have had not problems yet.
SweepstakesYes
Yes, I recommend this product.
Westminster, MD
Review 1
5 out of 5 stars.
EASY
a year ago
easy to place the order, and it was a perfect pick up at the store
SweepstakesYes
