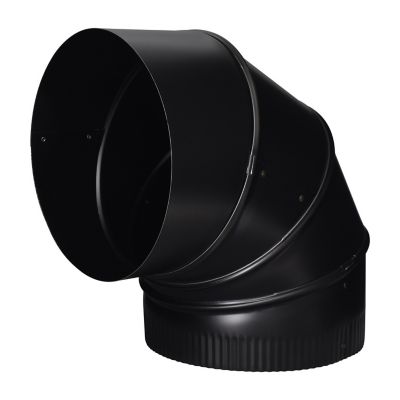

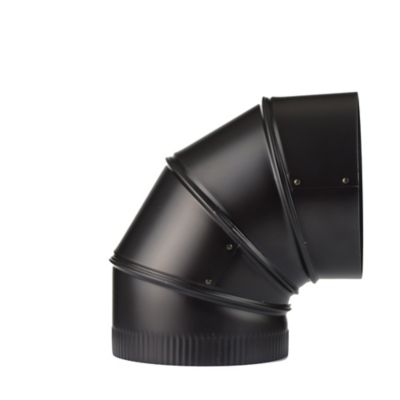

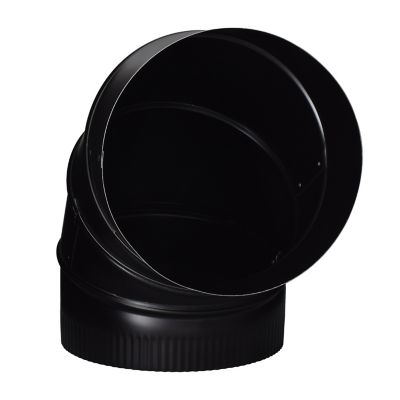

Imperial 8 in. x 90 deg. Black Stove Pipe Elbow, BM0016-C

SKU # 319663099
Product price

Save Up To
See price at checkout Why?
Product Rating is 5.0
5.0
(1)

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

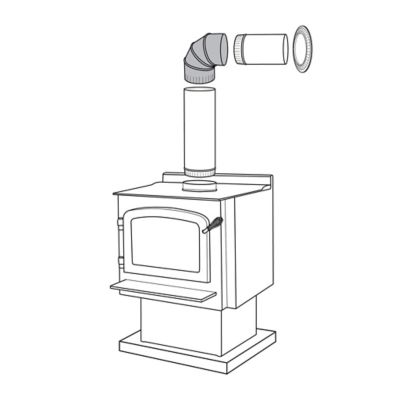

Use this adjustable elbow to change direction in a wood stove venting system

  • Elbow is adjustable from 0 degrees to 90 degrees
  • Can be used to make angular or gradual turns
  • 24 gauge pre-painted black steel construction
  • Male end is crimped for easy assembly to round pipe or fittings of same diameter
  • Satin Black finish
  • Crimped end should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe
  • Each connection should be secured using minimum of 3 sheet metal screws
  • Unshielded minimum clearance to combustible materials is 18"

single-wall black pipe system is an economical way to vent from a woodstove to the entrance of a chimney or where the system breaches a wall or ceiling.

Specification Description
Product Type: Chimney Pipes
Application/Use: Adjustable Elbow can change the direction of a single wall vent system for wood stoves
Brand: Imperial
Compatibility: Compatible with 8" single wall stove pipe and fittings
CountryofOrigin: Made in USA
Finish: Satin Black
Indoor and/or Outdoor: Indoor
Inner Diameter: 8 in. Nominal
Installation Orientation: Vertical
Material: Steel
Maximum Diameter: 8 in.
Maximum Temperature: 800 degrees Fahrenheit
Minimum Diameter: 8 in.
Minimum Product Length: 11 in.
Number of Pieces: 1
Outer Diameter: 8 in.
Part Number: BM0016-C
Product Height: 11 in.
Product Length: 11 in.
Product Weight: 2.1 lb.
Product Width: 8 in.
Special Feature(s): Segmented for making turns from 0 to 90 degrees
Thickness: 24 ga.
Type: Adjustable Elbow
Wall Type: Single Wall
Manufacturer Part Number BM0016-C
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 1ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

can elbow be rotated to 30 degree?

Asked by: pipe
Adjustable from 0 degree to 90 degree.
Answered by: DanielB
Date published: 2017-01-17
