Imperial 6 x 8 in. Black Stove Pipe Increaser, BM0062-C

SKU # 319616999
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Item Information

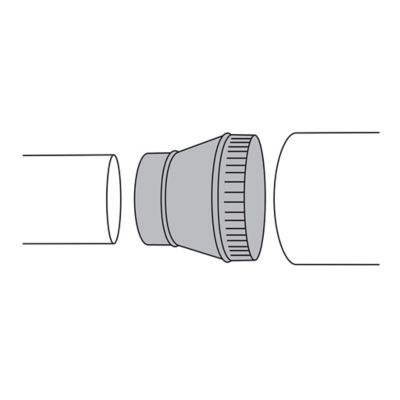

Use this 6" to 8" transition when connecting from a 6" wall or chimney breach to 8" stove pipe

  • 24 gauge pre-painted black steel construction
  • Large end is crimped for easy assembly to round pipe or fittings of same diameter
  • Satin Black finish
  • Crimped end should be oriented toward the stove to allow for condensation and creosote to flow down inside the pipe
  • Each connection should be secured using minimum of 3 sheet metal screws
  • Unshielded minimum clearance to combustible materials is 18"

single-wall black pipe system is an economical way to vent from a woodstove to the entrance of a chimney or where the system breaches a wall or ceiling.

Specification Description
Product Type: Chimney Pipes
Application/Use: Transition from 8" pipe to 6" chimney breach
Brand: Imperial
Compatibility: Compatible with 6" and 8" diameter single wall stove pipe and fittings
CountryofOrigin: Made in USA
Finish: Satin Black
Indoor and/or Outdoor: Indoor
Inner Diameter: 6 in. nominal on non-crimped end; 8 in. nominal on crimped end
Installation Orientation: Horizontal
Material: Steel
Maximum Diameter: 8 in.
Maximum Temperature: 800 degrees Fahrenheit
Minimum Diameter: 6 in.
Minimum Product Length: 8 in.
Number of Pieces: 1
Outer Diameter: 8 in.
Part Number: BM0062-C
Product Height: 7 in.
Product Length: 8 in.
Product Weight: 1.2 lb.
Product Width: 8 in.
Special Feature(s): Tapered transition; Crimped on 8" end
Thickness: 24 ga.
Type: Stove Pipe Transition
Wall Type: Single Wall
Manufacturer Part Number BM0062-C

Dose the 6 inch end fit on any 6 inch stove?

Asked by: Dee 12
yes, it does.
Answered by: Imperial Manufacturing
Date published: 2017-10-27

What is the overall length? Length between flanges?

Asked by: 0702howard
7" in height
Answered by: Imperial Manufacturing
Date published: 2017-11-14
