Tarter Series 6 Automatic Headgate for Cattle Up to 1,400 lb.
$1,299.99
Tarter Series 6 Automatic Headgate for Cattle Up to 1,400 lb.
Tarter Series 6 Automatic Headgate for Cattle Up to 1,400 lb.
Item # 1277557
$1,299.99
or
or
Size: 4
Color:
Get everything you need
Neighbor’s Club Members earn points with purchases.
$1,299.99
or
or
$55/mo.† suggested payments with 24 Months Financing or earn $64 in Rewards+ on this purchase.
Valid 5/15/2026 - 7/5/2026
Valid 5/15/2026 - 7/5/2026
Size: 4
Color:
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.

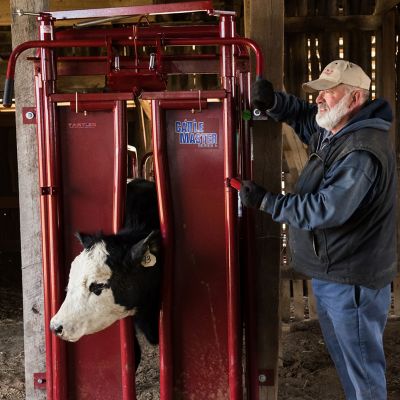

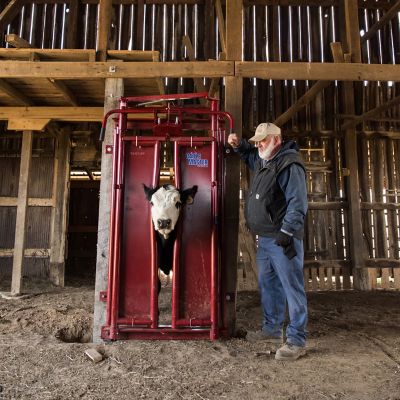

The Tarter Series 6 Automatic Headgate is perfect for medium/large herds. This headgate operates smoothly by a single operator. This headgate adjusts from calves to bulls. There are grease fittings at critical points. This gate has positive latching with in/out rotating door and reversible controls that allow the gate to be operated from either side. The gate has an adjustable bottom to accommodate various animal sizes. This cattle accessory is constructed of quality heavy-duty 2-3/8 in. tubular steel. The overhead bar prevents accidental release of automatic headgate. This product is sold separately or with CattleMaster chute. The headgate is recommended for cattle up to 1,400 lb.
- Automatic headgate is perfect for medium/large herds
- Operates smoothly by a single operator
- Headgate will adjust from calves to bulls
- Grease fittings at critical points
- Positive latching with in/out rotating door
- Reversible controls allow it to be operated from either side
- Adjustable bottom to accommodate various animal sizes
- Constructed of quality heavy-duty 2-3/8 in. tubular steel
- Overhead bar prevents accidental release of automatic headgate
- Cattle accessory is sold separately or with CattleMaster chute
- Headgate is recommended for cattle up to 1,400 lb.
| Brand | Tarter |
|---|---|
| Country of Origin | Made in USA |
| Animal Type | Cattle |
| Features | Operated smoothly by a single operator |
| Primary Material | Steel |
| Product Height | 6 ft. 9-1/2 in. |
| Product Weight | 343 lb. |
| Product Width | 3 ft. 10 in. |
| Warranty | Manufacturer Warranty |
| Color | Red |
| Size | 4 |
| Manufacturer Part Number | CMAH6 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Newest questions
Q: How wide is the headgate to the outside of the 2-3/8 tubing
5 months ago1 Answer
- A: Center of mounting hole to center of the other mounting hole is 42 3/8"5 months agoHelpful?
Q: will the 6 series headgate mount to a 3 series squeeze chute?
8 months ago1 Answer
- A: No, the hole pattern is not the same.8 months agoHelpful?
Q: What is the maximum opening width?
2 years ago1 Answer
- A: Approximately 29 inches.2 years agoHelpful?
Q: I need a heargate for holstein cattle up to 1800 lbs what would you suggest?
4 years ago1 Answer
- A: This headgate has the highest weight capability currently available from this brand on the TSC website. It is designed to handle cattle up to 1,400 lbs.4 years agoHelpful?
Q: Can this also be operated manually if necessary?
4 years ago1 Answer
- A: Yes, this can be operated manually.4 years agoHelpful?
Q: how high is it to the top holes
4 years ago1 Answer
- A: That measurement is 63.25” from the bottom of the frame to the center of the top hole on the mounting bracket.4 years agoHelpful?
Q: how far apart are the mounting tabs?
Anonymous5 years ago1 Answer
- A: The mounting holes are 41-3/4 inches wide from the center of the mounting hole across to the other hole5 years agoHelpful?
Q: With gate closed, how wide is the widest part of the opening? How narrow is narrowest part of the opening with the gate closed? Thanks
5 years ago1 Answer
- A: Without going to measure I can’t remember exactly but it has 3 positions on each side to widen or reduce the opening size. We had no problems holding yearling calves in the middle middle setting and large bulls on the largest.5 years agoHelpful?
Q: How wide is it from the center of the mounting hole across to the other center of the hole?
6 years ago1 Answer
- A: 41-3/4 inches.5 years agoHelpful?
Q: Will this work for cattle with Horns?
6 years ago1 Answer
- A: No.5 years agoHelpful?
1 - 10 of 13 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Newest questions
Q: How wide is the headgate to the outside of the 2-3/8 tubing
5 months ago1 Answer
- A: Center of mounting hole to center of the other mounting hole is 42 3/8"5 months agoHelpful?
Q: will the 6 series headgate mount to a 3 series squeeze chute?
8 months ago1 Answer
- A: No, the hole pattern is not the same.8 months agoHelpful?
Q: What is the maximum opening width?
2 years ago1 Answer
- A: Approximately 29 inches.2 years agoHelpful?
Q: I need a heargate for holstein cattle up to 1800 lbs what would you suggest?
4 years ago1 Answer
- A: This headgate has the highest weight capability currently available from this brand on the TSC website. It is designed to handle cattle up to 1,400 lbs.4 years agoHelpful?
Q: Can this also be operated manually if necessary?
4 years ago1 Answer
- A: Yes, this can be operated manually.4 years agoHelpful?
Q: how high is it to the top holes
4 years ago1 Answer
- A: That measurement is 63.25” from the bottom of the frame to the center of the top hole on the mounting bracket.4 years agoHelpful?
Q: how far apart are the mounting tabs?
Anonymous5 years ago1 Answer
- A: The mounting holes are 41-3/4 inches wide from the center of the mounting hole across to the other hole5 years agoHelpful?
Q: With gate closed, how wide is the widest part of the opening? How narrow is narrowest part of the opening with the gate closed? Thanks
5 years ago1 Answer
- A: Without going to measure I can’t remember exactly but it has 3 positions on each side to widen or reduce the opening size. We had no problems holding yearling calves in the middle middle setting and large bulls on the largest.5 years agoHelpful?
Q: How wide is it from the center of the mounting hole across to the other center of the hole?
6 years ago1 Answer
- A: 41-3/4 inches.5 years agoHelpful?
Q: Will this work for cattle with Horns?
6 years ago1 Answer
- A: No.5 years agoHelpful?
1 - 10 of 13 Questions
Similar Items
-
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
Customers Also Bought
-
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Top Rated
Reviews
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
- weight
- design
- ease of use
- large
- material
- price
- customer service
- repairs
1 to 4 of 30 Reviews .
1 – 4 of 30 Reviews
Most Recent
Anonymous
South central Texas
Review 1
4 out of 5 stars.
Headgate
16 days ago
Front latch to open gate does not open as easily as it should. It hangs and takes another pull.
SweepstakesYes
Yes, I recommend this product.
Fort Collins, CO
Review 1
2 out of 5 stars.
Arrived damaged
3 months ago

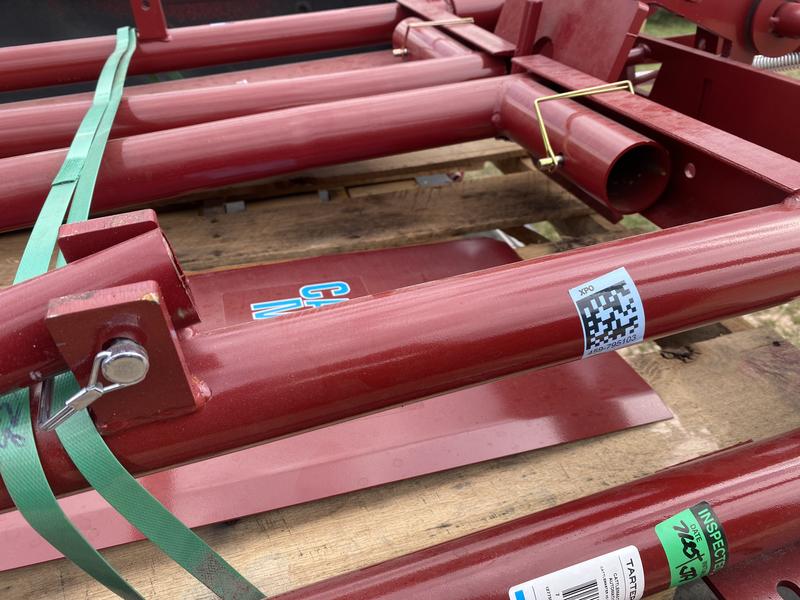

Equipment arrived earlier than expected which was great but the materials were damaged as it was not properly packaged. I was told by Customer Service that they will not supply the necessary materials needed to do the touch-up repairs which is not good service at all.
Texas
Review 1
4 out of 5 stars.
Not bad
4 months ago
Could have come with better handles but not bad at all
Colorado
Review 1
1 out of 5 stars.
Damaged when it arrived. Weak welds
9 months ago

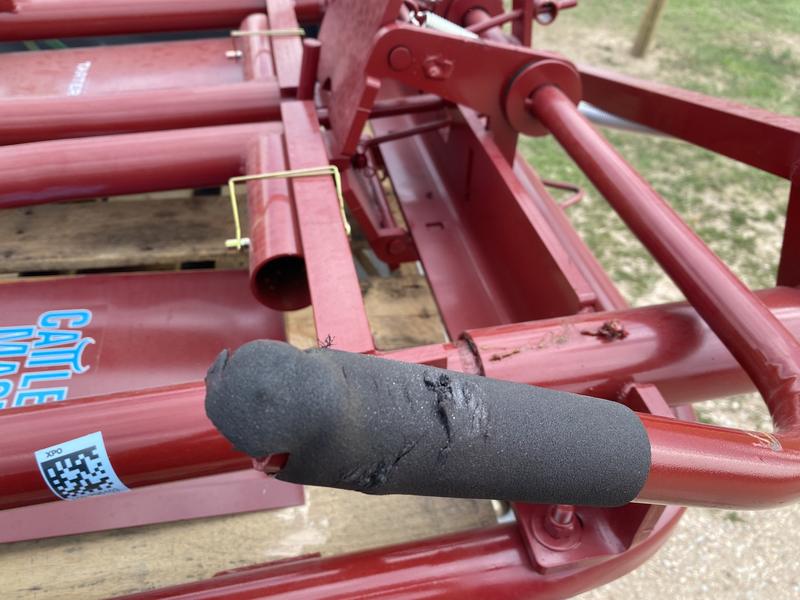

Arrived damaged after a 2 week wait. I run a farm and ranch business and had to accept the order to make deadline tagging, branding and vaccinating cattle. Unfortunately I will need to weld the sheet metal panel into place and get a new foam handle.
No, I do not recommend this product.
