Tarter CattleMaster Series 3 Automatic Headgate for Cattle Up to 1,200 lb., 19-1/2 in. x 41 in. x 72 in., Red, 223 lb.
$999.99
Tarter CattleMaster Series 3 Automatic Headgate for Cattle Up to 1,200 lb., 19-1/2 in. x 41 in. x 72 in., Red, 223 lb.
Tarter CattleMaster Series 3 Automatic Headgate for Cattle Up to 1,200 lb., 19-1/2 in. x 41 in. x 72 in., Red, 223 lb.
Item # 1277559
$999.99
or
or
Size: 6
Color:
Get everything you need
Neighbor’s Club Members earn points with purchases.
Tarter CattleMaster Series 3 Automatic Headgate for Cattle Up to 1,200 lb., 19-1/2 in. x 41 in. x 72 in., Red, 223 lb.
Item # 1277559
$999.99
or
or
$42/mo.† suggested payments with 24 Months Financing or earn $49 in Rewards+ on this purchase.
Valid 5/15/2026 - 7/5/2026
Valid 5/15/2026 - 7/5/2026
Size: 6
Color:
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.

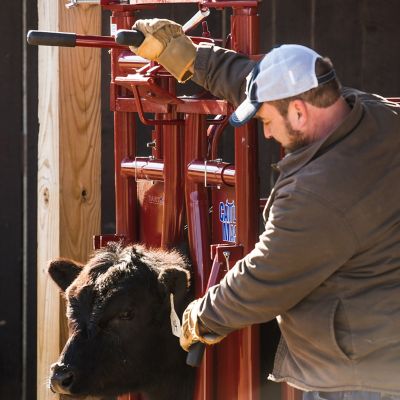

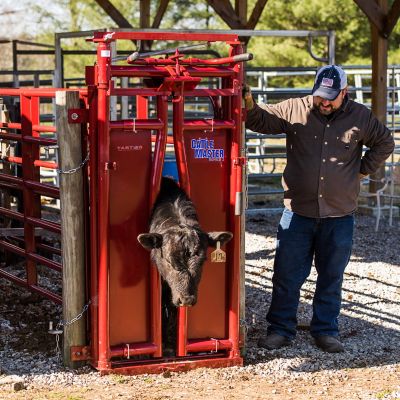

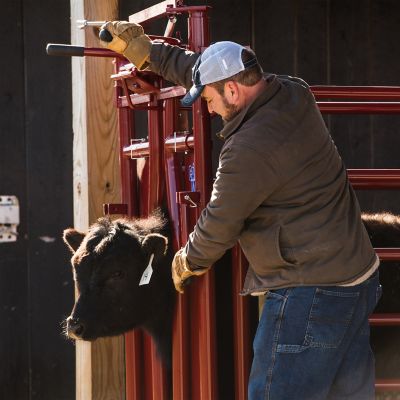

This Tarter Cattlemaster Series 3 Automatic Headgate CAH does the catching for you and is easily adjustable to work with various livestock sizes. for durability, this Tarter headgate has a heavy-duty 2-3/8 in. tubular steel construction. Ideal for small herds, this steel headgate requires only one person to operate. This cattle headgate works with the CattleMaster chute and can be bolted to wooden alley posts if desired.
- This automatic headgate is single-person operated
- Works with the CattleMaster chute
- Can be bolted to wooden alley posts if desired
- Grease fittings are provided at critical points of the Tarter headgate for an easier set-up
- Single pc. top linkage provides a smooth operation
- Quality constructed of heavy-duty 2-3/8 in. tubular steel for durability
- Sold separately or with the CattleMaster Series 3 chute
- Recommended for cattle up to 1,200 lb.
- The corrosion-resistant powder-coat red finish on this steel headgate offers added reinforcement
- Ideal for the small herds
- Dimensions: 19-1/2 in. L x 41 in. W x 72 in. H
- Cattle headgate weight: 223 lb.
| Brand | Tarter |
|---|---|
| Country of Origin | Made in USA |
| Animal Type | Cattle |
| Features | Auto Headgate |
| Primary Material | Steel |
| Product Height | 72 in. |
| Product Length | 19-1/2 in. |
| Product Weight | 223 lb. |
| Product Width | 41 in. |
| Warranty | Manufacturer Warranty |
| Color | Red |
| Size | 6 |
| Manufacturer Part Number | CAH |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 25 Questions
Newest questions
Q: What is the minimum width of the neck bar?
Anonymous2 months ago1 Answer
- A: 4 inches.2 months agoHelpful?
Q: Does this model auto lock when head/neck hit the head gate?Also when released is animal able to walk thru or does it need to reverse out?
2 years ago1 Answer
- A: Yes, and cattle do walk thru when released.2 years agoHelpful?
Q: What should the width of the 6X6's be to bolt or screw the head gate onto?
2 years ago1 Answer
- A: Center to center of bolt hook up is approximately 38".2 years agoHelpful?
Q: What are the dimensions for the bolt holes and recommend bolt size
3 years ago1 Answer
- A: Here is a link to the manufacturers product page for this item. https://tarterusa.com/cattlemaster-series-3-automatic-headgate/3 years agoHelpful?
Q: Can this adjust small enough to work for dexter cattle?
3 years ago1 Answer
- A: Hi, Thank you for reaching out. For such a specific inquiry, please reach out directly to Tarter at https://tarterusa.com/contact/ OR CALL 1.800.733.4283 OR 1-800-RED-GATE HOURS MONDAY 8AM-4:30 PM ET TUESDAY 8AM-4:30 PM ET WEDNESDAY8AM-4:30 PM ET THURSDAY8AM-4:30 PM ET FRIDAY8AM-4:30 PM ET SATURDAY Closed SUNDAY Closed3 years agoHelpful?
Q: Can it easily be bolted to the Tarter sweep tub and alley system?
3 years ago1 Answer
- A: Yes, this has connection points that match the sweep system.3 years agoHelpful?
Q: I am trying to find installation instructions. Specifically, if there is a post size recommended. I am planning on using 4x6 green treated posts with a 3' ground embedment backfilled with concrete.
3 years ago1 Answer
- A: There currently are no installation instructions for this product. The recommended minimum post size would be 6"x6".3 years agoHelpful?
Q: What is the difference in a Series III Size 6 and a Series III Size 8?
3 years ago1 Answer
- A: Please clarify this question as there is no size 6 or 8 in relation to the Series 3 headgates.3 years agoHelpful?
Q: Is it possible to attach this to steel post in a barn?
3 years ago1 Answer
- A: This would be customer preference and ability to attach.3 years agoHelpful?
Q: Can this head gate be attached to the end of a cattle panel alley? Is there any additional equipment necessary to do so?
3 years ago1 Answer
- A: This head gate is designed to bolt onto wooden posts.3 years agoHelpful?
1 - 10 of 25 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 25 Questions
Newest questions
Q: What is the minimum width of the neck bar?
Anonymous2 months ago1 Answer
- A: 4 inches.2 months agoHelpful?
Q: Does this model auto lock when head/neck hit the head gate?Also when released is animal able to walk thru or does it need to reverse out?
2 years ago1 Answer
- A: Yes, and cattle do walk thru when released.2 years agoHelpful?
Q: What should the width of the 6X6's be to bolt or screw the head gate onto?
2 years ago1 Answer
- A: Center to center of bolt hook up is approximately 38".2 years agoHelpful?
Q: What are the dimensions for the bolt holes and recommend bolt size
3 years ago1 Answer
- A: Here is a link to the manufacturers product page for this item. https://tarterusa.com/cattlemaster-series-3-automatic-headgate/3 years agoHelpful?
Q: Can this adjust small enough to work for dexter cattle?
3 years ago1 Answer
- A: Hi, Thank you for reaching out. For such a specific inquiry, please reach out directly to Tarter at https://tarterusa.com/contact/ OR CALL 1.800.733.4283 OR 1-800-RED-GATE HOURS MONDAY 8AM-4:30 PM ET TUESDAY 8AM-4:30 PM ET WEDNESDAY8AM-4:30 PM ET THURSDAY8AM-4:30 PM ET FRIDAY8AM-4:30 PM ET SATURDAY Closed SUNDAY Closed3 years agoHelpful?
Q: Can it easily be bolted to the Tarter sweep tub and alley system?
3 years ago1 Answer
- A: Yes, this has connection points that match the sweep system.3 years agoHelpful?
Q: I am trying to find installation instructions. Specifically, if there is a post size recommended. I am planning on using 4x6 green treated posts with a 3' ground embedment backfilled with concrete.
3 years ago1 Answer
- A: There currently are no installation instructions for this product. The recommended minimum post size would be 6"x6".3 years agoHelpful?
Q: What is the difference in a Series III Size 6 and a Series III Size 8?
3 years ago1 Answer
- A: Please clarify this question as there is no size 6 or 8 in relation to the Series 3 headgates.3 years agoHelpful?
Q: Is it possible to attach this to steel post in a barn?
3 years ago1 Answer
- A: This would be customer preference and ability to attach.3 years agoHelpful?
Q: Can this head gate be attached to the end of a cattle panel alley? Is there any additional equipment necessary to do so?
3 years ago1 Answer
- A: This head gate is designed to bolt onto wooden posts.3 years agoHelpful?
1 - 10 of 25 Questions
Similar Items
-
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Items You May Like
Customers Also Bought
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
-
-
-
Reviews
- installation
- purchase
- large
- price
- quality
- adjustability
- closing
- ease of use
1 to 4 of 62 Reviews .
1 – 4 of 62 Reviews
Most Recent
Reviews 5
5 out of 5 stars.
Built well for the price point
20 days ago
Well built and arrived on a pallet in good condition.
SweepstakesYes
Yes, I recommend this product.
Eastern Washington
Reviews 3
1 out of 5 stars.
Multiple defects in the one I got.
2 months ago
Parts not working before first use. Handle weight holds the back stopper from locking in place. Calves can pull back and not lock in. Then gate bent on the 2nd calf that has ever been through it. Calf only weighs 500lb. Now both doors don’t close evenly so the front stop stops the one door before the back gets past the 2nd door. Not the best of explanation here but I could not finish tagging and branding. Only got through 3 calves and had to stop. Trying to contact Tractor Supply over the multiple defects in the product and also contacting Tarter. Haven’t heard back yet.
SweepstakesYes
No, I do not recommend this product.
Florida
Review 1
5 out of 5 stars.
Small Herd Must Have!
a year ago
Does what it is suppose to do. Catches cows good. Great for small herd. Not good for bulls.
SweepstakesYes
Yes, I recommend this product.
Review 1
5 out of 5 stars.
Perfect! Exactly what we needed
2 years ago
Was exactly as described and worked perfectly for our 5 mini cows for their vaccinations as well as bathing and shaving them to get them ready for this SETX heat
SweepstakesYes
