Grizzly G0953-Portable Hepa Fume Extractor

4.73 Reviews

Item # 229408099

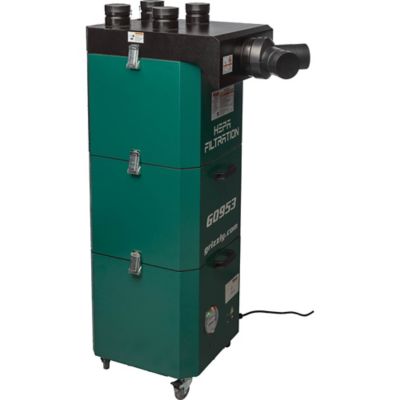

Image showing G0953-Portable Hepa Fume Extractor

$2195^.00See Price at Checkout

Neighbor’s Club Members earn points with purchases.

Shop all Grizzly

Grizzly G0953-Portable Hepa Fume Extractor

4.73 Reviews

Item # 229408099

$2195^.00See Price at Checkout

Neighbor’s Club Members earn points with purchases.

G0953 Portable HEPA Fume Extractor A dual-purpose dedicated machine fume extractor and general air purifier. The G0953 Portable HEPA Fume Extractor pulls smoke, fumes, and fine dust through eight types of filters within three chambers.

Whether you are using a 3D printer, CO2 laser, or fiber laser on wood, plastic, steel, or aluminum projects, the eight filters carry harmful smoke away for a healthy work area.

It can also be used to filter harmful odors from welding booths and chemical hoods.

Opening the upper ports will purify your entire work area.

Filtering laser fumes through an extractor allows the user to retain a heated or cooled environment. This is unlike using dust collectors or blowers that blow valuable heated or cooled air out of a vent.

The HEPA filter in the G0953 collects down to 0.3 microns with a MERV-17 rating at 99.97%.

For reference, a human hair is between 50-70 microns in diameter, meaning the G0953 collects particles 230 times smaller!

The upright design makes for a small footprint along with casters making this machine mobile.

Motor: 1 HP, 110V/220V (prewired for 110V), single-phase, 9A/4.5A
Airflow capacity (6" inlet): 423 CFM @ 0.38" SP
Airflow capacity (4" inlet): 335 CFM @ 0.91" SP
Maximum static pressure: 7.84" at 0 CFM
First-stage filter: Pleated pre-filter, 2-10 microns
Second-stage filter: Bag, 1-micron
Third-stage filter: Pleated polyester, 1-micron
Fourth-stage filter: Activated carbon bag, Type 1000
Fifth-stage filter: Activated carbon bag, Type 3000
Sixth-stage filter: Activated carbon bag, Type 9000
Seventh-stage filter: Pleated prefilter, 2-10 micron
Eighth-stage filter: HEPA, 0.3 microns
Impeller: 12" Aluminum
Overall dimensions: 21-1/2" W x 29" D x 61-1/2" H
Approximate shipping weight: 252 lbs.
Three-piece modular design offers easy access to filter chambers
6" Front inlet for fume extraction
Four 4" top inlets for room filtration
Aluminum mesh spark arrestor
Three activated carbon bags filter harmful chemicals and gas
Built-in pressure gauge indicates when to clean/replace filters
Locking caster wheels allows for quick changes in your shop layout

Items You May Like

Reviews

Rating Snapshot

Select a row below to filter reviews.

2 reviews with 5 stars.

1 review with 4 stars.

0 reviews with 3 stars.

0 reviews with 2 stars.

0 reviews with 1 star.

Overall Rating

4.7

1 out of 1 (100%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

large
powerful
price
value

1 to 1 of 3 Reviews

1 – 1 of 3 Reviews

Stewart

Woodridge, IL

Review 1

4 out of 5 stars.

Great machine, powerful filtration

2 years ago

There is a lot of value for the cost with this, for sure. We have had another laser filter, and the cost to change the filters was very expensive, and the filters were much smaller and would become saturated more quickly. This unit has huge carbon bags, the filters are not priced too expensive, and they last a while. I knocked one star, because of issues with the remote control. I followed the remote control programming instructions twice, and the remote control still only works half of the time. It will mostly turn the machine on, but it will not turn it off. I believe this could be due to electromagnetic interference or "noise" from the machine itself running that the cheap remote control and receiver were not designed to deal with. I don't like bending down to hit the power buttons, so I am disappointed that the remote is basically worthless. I probably would have been happier if it didn't come with a remote, rather than hope for a working remote and not get one. Overall, it's a great machine, just don't count on the remote working.

Yes, I recommend this product.

Originally posted on grizzly.com

Response from grizzly.com:

2 years ago

Grizzly Customer Experience Team

We're sorry to learn about the challenges faced with the remote control. Please contact our Customer Support team for further assistance. We appreciate you choosing our machine, and thank you for taking the time to share your satisfaction with the unit.
