GPI M-3025-AD Fuel Pump, 133240-2TSC

SKU: 395803299
GPI M-3025-AD Fuel Pump, 133240-2TSC
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.4
4.4
 (5)

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

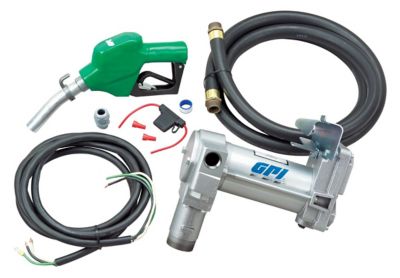

The GPI M-3025-AD 12 V Electric Fuel Pump is durable and reliable. Choose the GPI M-3025-AD when reduced fueling time is key. This 12-volt high performance pump has a U.L. Listed motor to U.S. and Canadian safety standards. Delivers up to 25 GPM. Comes with 12 feet of 1 inch grounded hose and 1 inch U.L. Listed automatic nozzle.

  • Material: Heavy Duty Cast Aluminum
  • Voltage Rating: 12-volt DC
  • Flow Rate: Up to 25 gpm/95 lpm
  • For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
  • Maximum pressure: 20 PSI
  • Inlet port size: 1 in.
  • Outlet port size: 1 in.
  • 16 in. W x 19 in. L x 13 in. H
  • Cast Iron housing
  • 2 year limited warranty

Specification Description
Intended Use Grade: Industrial, Standard, Residential, Commercial
Product Width: 16 in.
Product Weight: 59.3 lb.
Maximum Discharge Pressure: 20 PSI
CountryofOrigin: Made in USA
Power Type: 12 Volt
Nozzle Type: Auto Diesel
Maximum Lift: 15 ft.
Product Length: 19 in.
AC or DC Powered: DC
Housing Material: Heavy Duty Cast Aluminum
Maximum Total Head: 8 ft.
Seal Type: NBR
Inlet Size: 1 in.
Product Height: 13 in.
Part Number: 133240-2TSC
Inlet Diameter: 1 in.
Discharge Diameter: 1 in.
Hose Length: 12 ft.
Compatible Fluids: Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20) and kerosene
Special Feature(s): Choose the GPI M-3025-AD when reduced fueling time is key.
Maximum Flow Rate: 25 GPM
Inlet Connection: Threaded Male
Horsepower: 4/10 HP
Voltage: 12 V
Amperage: 35 Amps
Outlet Size: 1 in.
Maximum Speed: 2,000 rpm
Brand: GPI
Discharge Connection: Threaded Female
Manufacturer Part Number 133240-2TSC
GPI M-3025-AD Fuel Pump, 133240-2TSC is rated 4.4 out of 5 by 5.
Rated 5 out of 5 by from Excellent pump. I love it, saves me lots of time. Easy to use and very convenient to have when filling 200 gallons of diesel every other day.
Date published: 2018-08-17
Rated 5 out of 5 by from Worth The Money We have several of these pumps on transfer tanks throughout our company. They sit in the back of pickups and are exposed to the elements and they continue to perform. The only down side is that I can't find a screw-on particulate/water filter that can keep up with the pump. This pump is rated for 25 gpm and the best filter I can find is rated at 18 gpm. Otherwise I am extremely happy with the pump and its performance. I have used several other brands/styles and this pump is at the top of it's class. Very much worth the $. A+
Date published: 2011-07-19
  • y_2020, m_6, d_1, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_2
  • loc_en_US, sid_395803299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 3ms
  • REVIEWS, PRODUCT

Does this kit come with only a green nozzle cover?  If so, is the cover replaceable to change to red for gasoline?

Asked by: Ricky_t
The nozzle with that pump kit is fitted with a green cover. We do not have a nozzle with a red cover nor do we have replacement nozzle covers.
Answered by: CodyP
Date published: 2020-02-21
