GPI 15 GPM 12V Fuel Transfer Pump, Automatic Nozzle
GPI 15 GPM 12V Fuel Transfer Pump, Automatic Nozzle
Item # 3958139
Get everything you need
Neighbor’s Club Members earn points with purchases.
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at WHITE BLUFF TN(18.7) miles Free
Ship to store at Franklin TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
As the best-selling retail fuel transfer pump, the GPI 15 GPM M-150S-AU Fuel Transfer Pump provides longer run times and award-winning performance year-over-year. It's the fuel pump of choice for agricultural, automotive and construction applications dispensing gasoline, diesel fuel, and kerosene with flow rates up to 15 GPM (57 L/min). The fuel pump features a self-priming rotary gear design, a 12VDC motor, and a lightweight cast aluminum body that resists corrosion. The fuel transfer pump comes with an automatic unleaded nozzle for ease of use, a telescoping suction pipe to fit tank depths between 15 in. and 40 in., convenient spin collar for easy installation, a lockable nozzle holder to deter theft, a fuel hose, and a factory-installed, 18 ft. (5.5 m) power cord.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Independent lab tested, the fuel transfer pump received a Gold Medal Performance award for delivering three times more operating hours than our leading competitor's comparable pump.
- More operating hours means longer pump life and greater value
- Convenient spin collar for easy installation and versatile pump mounting
- Circuit breaker motor protection extends motor life
- Lightweight aluminum fuel transfer pump provides corrosion resistance and reduces tank stress
- Lockable nozzle holder protects your investment and deters theft
- Pump is designed for permanent mounting on vented storage tanks
- UL listed motor and CSA certified
- Aluminum housing protects the fuel transfer pump
- 2 year limited warranty
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 18A |
| Body Materials | Aluminum |
| Compatible Fluids | Kerosene |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. on/off |
| Features | Self-Priming |
| Horsepower | 1/5 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 15 GPM |
| Maximum Head Lift | 5.5 ft. |
| Maximum Operating Pressure | 15 PSI |
| Maximum Operating Temperature | 125 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | -20 deg. F |
| Power Type | 12 Volt |
| Product Height | 9.24 in. |
| Product Length | 19 in. |
| Product Weight | 25.1 lb. |
| Product Width | 16 in. |
| Voltage | 12V |
| Warranty | 2 Year Limited |
| Manufacturer Part Number | 110000-100TSC |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Does the pump fit on 40 gallon Transfer flow tank? The tank has a GPI 8 that needs replacing.
3 months ago1 Answer
- AI-generatedA: This pump features a telescoping suction pipe designed to fit tank depths between 15 inches and 40 inches, making it suitable for various tank sizes. The convenient spin collar allows for easy installation and versatile pump mounting.3 months agoHelpful?
Q: Priming pump how to do this.
7 months ago1 Answer
- A: The GPI 15 GPM 12V Fuel Transfer Pump is designed to be self-priming, meaning it typically does not require manual priming if installed correctly and all connections are tight. The key to successful priming is a sealed system without air leaks on the suction side.7 months agoHelpful?
Q: can i use diesel with this pump? Thank you
a year ago1 Answer
- A: Hello, thank you for your question. Yes, out of the box, the GPI 1/5 HP 12V M-150S-AU Fuel Transfer Pump will be compatible with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene.a year agoHelpful?
Q: Will this tread on a 55gal drum
a year ago1 Answer
- A: Hello, Thank you for your question. Per the vendor, "Most standard 55-gallon drums have a 2” NPT bung which this pump will thread onto."a year agoHelpful?
Q: How many Amps does this pump draw? What size wire do you recommend?
2 years ago1 Answer
- A: Hi Rust. Per the vendor: This pump draws 18 amps and comes with a replaceable fuse (25 amp). Feel free to reach out to our Product Support team at 1-800-835-0113 if you have additional technical questions.2 years agoHelpful?
Q: Bought a Gpi 15gpm in may or June of 2022 and moisture got in the switch housing and everything is corroded so it doesn’t work will tractor supply exchange it?
3 years ago1 Answer
- A: Hey, Sorry to hear this, please call our customer service team directly at 1 (877) 718-67503 years agoHelpful?
Q: What size is the NPT mounting? I have a tank that requires 2" for the pump.
3 years ago1 Answer
- A: Hi, Thanks for reaching out. The NPT Mounting is a spin collar mount that s 2"3 years agoHelpful?
Q: Does this fuel pump require a filter? I was told by TSC it doesn't need one.
3 years ago1 Answer
- A: Hi TmmG, You were told correctly by a TSC team member. Here is what I received from our vendor: A filter is not required for any of our fuel transfer pumps. Filters can be added to your application set up to remove rust, dirt, and dust that can damage your equipment over time and should be replaced depending on how often you run your pump. If you need additional clarification, feel free to reach out to our Product Support team at 1-800-835-0113.3 years agoHelpful?
Q: Says this pump is compatible with Diesel blends up to B20. What pump could be used for B100?
4 years ago1 Answer
- A: Good afternoon, Yes, the M-150S-AU pump is rated for up to B20 fuel grade, however you can purchase the B100 shaft seal kit, and change it in the field, and it will work with B100 at that point. Here is the part number for the shaft seal kit: 110906-03. Please call 1-800-835-0113 to order. GPI4 years agoHelpful?
Q: how long of hose can i add to the pump i need to go about 100 ft will this pump be okay for that
4 years ago1 Answer
- A: Hello, We only recommend using a 20ft hose with this pump. Thanks,4 years agoHelpful?
1 - 10 of 16 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Does the pump fit on 40 gallon Transfer flow tank? The tank has a GPI 8 that needs replacing.
3 months ago1 Answer
- AI-generatedA: This pump features a telescoping suction pipe designed to fit tank depths between 15 inches and 40 inches, making it suitable for various tank sizes. The convenient spin collar allows for easy installation and versatile pump mounting.3 months agoHelpful?
Q: Priming pump how to do this.
7 months ago1 Answer
- A: The GPI 15 GPM 12V Fuel Transfer Pump is designed to be self-priming, meaning it typically does not require manual priming if installed correctly and all connections are tight. The key to successful priming is a sealed system without air leaks on the suction side.7 months agoHelpful?
Q: can i use diesel with this pump? Thank you
a year ago1 Answer
- A: Hello, thank you for your question. Yes, out of the box, the GPI 1/5 HP 12V M-150S-AU Fuel Transfer Pump will be compatible with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene.a year agoHelpful?
Q: Will this tread on a 55gal drum
a year ago1 Answer
- A: Hello, Thank you for your question. Per the vendor, "Most standard 55-gallon drums have a 2” NPT bung which this pump will thread onto."a year agoHelpful?
Q: How many Amps does this pump draw? What size wire do you recommend?
2 years ago1 Answer
- A: Hi Rust. Per the vendor: This pump draws 18 amps and comes with a replaceable fuse (25 amp). Feel free to reach out to our Product Support team at 1-800-835-0113 if you have additional technical questions.2 years agoHelpful?
Q: Bought a Gpi 15gpm in may or June of 2022 and moisture got in the switch housing and everything is corroded so it doesn’t work will tractor supply exchange it?
3 years ago1 Answer
- A: Hey, Sorry to hear this, please call our customer service team directly at 1 (877) 718-67503 years agoHelpful?
Q: What size is the NPT mounting? I have a tank that requires 2" for the pump.
3 years ago1 Answer
- A: Hi, Thanks for reaching out. The NPT Mounting is a spin collar mount that s 2"3 years agoHelpful?
Q: Does this fuel pump require a filter? I was told by TSC it doesn't need one.
3 years ago1 Answer
- A: Hi TmmG, You were told correctly by a TSC team member. Here is what I received from our vendor: A filter is not required for any of our fuel transfer pumps. Filters can be added to your application set up to remove rust, dirt, and dust that can damage your equipment over time and should be replaced depending on how often you run your pump. If you need additional clarification, feel free to reach out to our Product Support team at 1-800-835-0113.3 years agoHelpful?
Q: Says this pump is compatible with Diesel blends up to B20. What pump could be used for B100?
4 years ago1 Answer
- A: Good afternoon, Yes, the M-150S-AU pump is rated for up to B20 fuel grade, however you can purchase the B100 shaft seal kit, and change it in the field, and it will work with B100 at that point. Here is the part number for the shaft seal kit: 110906-03. Please call 1-800-835-0113 to order. GPI4 years agoHelpful?
Q: how long of hose can i add to the pump i need to go about 100 ft will this pump be okay for that
4 years ago1 Answer
- A: Hello, We only recommend using a 20ft hose with this pump. Thanks,4 years agoHelpful?
1 - 10 of 16 Questions
Similar Items
-
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Items You May Like
-
-
-
-
-
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Customers Also Bought
-
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Reviews
- purchase
- installation
- price
- satisfaction
- quality
- reliable
- large
- product availability
1 to 4 of 545 Reviews .
1 – 4 of 545 Reviews
Most Recent
Columbiana, Ohio
Review 1
5 out of 5 stars.
Pumped too expensive
a month ago
Pump is a good solid pump runs great definitely overpriced for what you get way too high
SweepstakesYes
Yes, I recommend this product.
Texas
Review 1
1 out of 5 stars.
Poor Quality Nozzle
6 months ago
The pump is ok. The nozzle is super fragile. Whoever designed this thought it would be a good idea to make a weak point between the hook and the handle. It will break unless you never use it. It’s cast so not repairable. Very disappointed especially since TSC has a ridiculous markup compared to going straight to GPI.
No, I do not recommend this product.
Review 1
1 out of 5 stars.
Cheesy warranty
a year ago

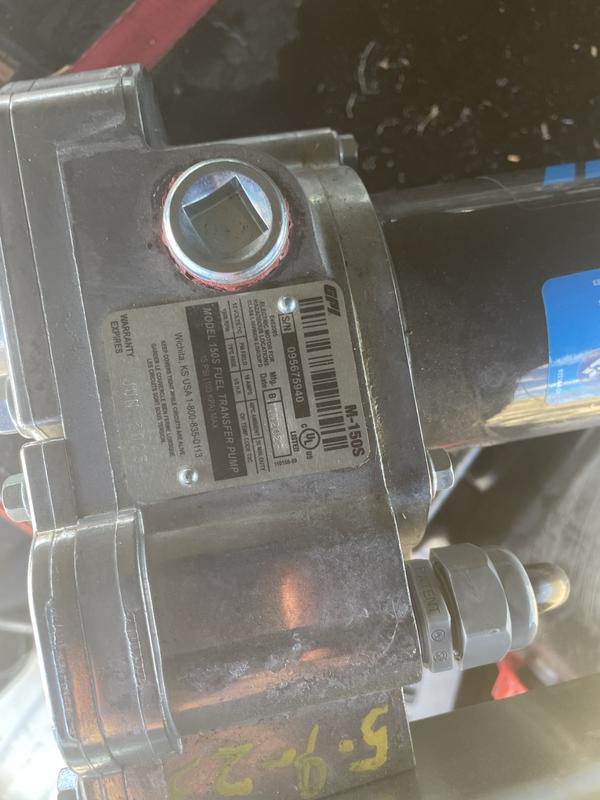

Don’t buy if you want a manufacturers warranty, it if 24 months from date of manufacture and not purchase. I just bought one and warranty started 6 months ago even though the store just got them in stock. I looked at he 8 Tom pump I was replacing and the warranty was expired before I purchased it, it had been manufactured 28 months prior to purchase.
No, I do not recommend this product.
Reviews 2
5 out of 5 stars.
Great pump
a year ago
Great pump. It was easy to install and has worked flawlessly.
SweepstakesYes
Yes, I recommend this product.
