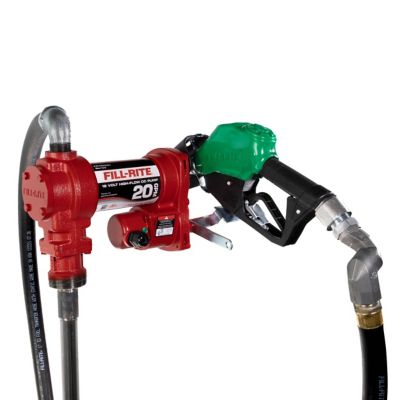

Fill-Rite 12V 20 GPM Fuel Transfer Pump, Suction Pipe, 18 in. Discharge Hose, Automatic Nozzle, & Swivel, FR4220HDSQ
Online Only
Item # 2494593
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 2494593
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The FR4220HDSQ is a 12-Volt 20 GPM fuel transfer pump that comes with a 1 in. x 18 ft. discharge hose, 1 in. ultra-high flow auto nozzle (green cover), 1 in. multi-plane swivel, 1 in. x 34 in. telescoping steel suction pipe, 1 in. elbow, 5 ft. 12-Gauge ground wire and a 18 ft. 12-Gauge 2-wire battery cable. It can be used to pump gasoline, diesel, kerosene, ethanol blends up to 15%, methanol blends up to 15% and bio-diesel up to B20. With a removable junction box, installation of the product has never been easier.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Cast-Iron Construction heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
- Reliable Performance Fill-Rites trusted rotary vane pump technology delivers 20 gallons per minute, perfect for filling equipment with fuel tanks from 20-80 gallons
- Mobile Tanks powered by a 12V motor and equipped with a 2 inch bung mount, this pump is ideal for wiring to 12 volt batteries and installing onto transfer tanks in truck beds
- Fluid Compatibility designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene, and mineral spirits
- Easy Installation adjustable electrical junction box rotates 180 for easier wiring and more flexible installations in tight spaces
- Long Life thermally-protected motor prevents overheating, ensuring your pump performs for years worry free
- Equipment Safeguard built-in mesh strainer filters out particulates in your fuel, preventing damage to your equipment
- Reliable On-Off Switch on-off switch lever features a robust metal stopping arm, preventing premature failure from repeated use
- Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty, protecting your investment
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| Body Materials | Cast iron |
| Compatible Fluids | Diesel, Gasoline, Biodiesel, Kerosene |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min |
| Features | Self Priming |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Standard, Industrial, Commercial, Residential |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 37 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 150 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -40 deg. |
| Power Type | 12 Volt |
| Product Height | 6.5 in. |
| Product Length | 15.5 in. |
| Product Weight | 19.1 lb. |
| Product Width | 13 in. |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR4220HDSQ |
