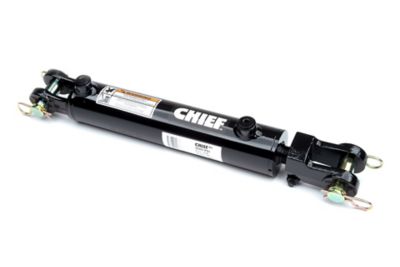

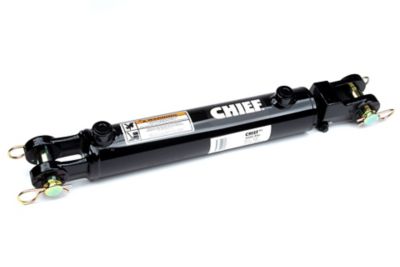

Chief 2.5 in. Bore x 8 ASAE Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
Chief 2.5 in. Bore x 8 ASAE Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
Item # 1307579
$185.12
Chief 2.5 in. Bore x 8 ASAE Stroke WC Welded Cylinder, 1.25 in. Rod Diameter
Item # 1307579
$185.12
The Chief 2.5 in. Bore x 8 ASAE Stroke WC Welded Cylinder is a high-quality welded hydraulic cylinder with a strong forged steel base. This hydraulic cylinder model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. It provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. A base end clevis extends out 2 in. to ensure greater swing radius and maximum flexibility.Note: This product may require up to 2 additional days for order processing prior to shipping
- Intended use: double-acting applications
- Piston: ductile iron
- Gland: ductile iron
- Tube: precision-honed steel
- Rod: hard chrome-plated
- End mounts: ductile iron female clevises with pins and clips included
- Tube seals: Buna O-ring
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seal: Hallite 755 for prolonged wear resistance with wear ring
- All seals are manufactured to US specifications
- Functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability
- Column load: 14,720 lb.
- 3-year limited warranty
- Welded hydraulic cylinder with a 3,000 PSI operating range
- Black paint finish
- Measures 20.25 in. retracted and 28.25 in. extended
- Pin diameter of 1 in. and rod diameter of 1.25 in.
- SAE O-ring ports that allow for easy hookup
- Individually poly bagged hydraulic cylinder works well in agricultural applications
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 28.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 14,720 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 2.5 in. |
| Product Length | 10.25 in. |
| Product Weight | 20 lb. |
| Product Width | 1.2 in. |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 ASAE |
| Warranty | 3 Year |
| Manufacturer Part Number | 287018 |
