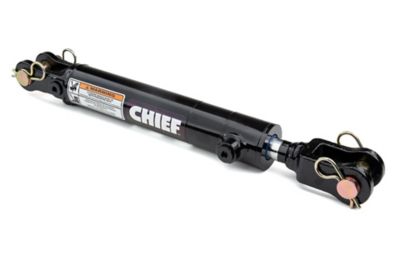

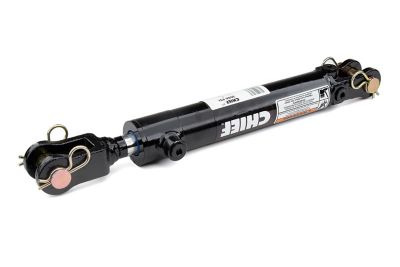

Chief 3 in. Bore x 12 in. Stroke, 1.25 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder

SKU # 130793999
Enter Zip Code for price
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...



Delivery Options for

This item will ship within 0 days.

Item Information

The Chief 3 in. Bore x 12 in. Stroke, 1.25 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the seals. This cylinder provides value pricing without sacrificing quality. Each cylinder undergoes rigorous testing to ensure maximum reliability and performance.

  • Rugged ductile iron welded clevis design
  • Standard SAE #8 ports
  • 3000 PSI seal kits for extended life
  • Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
  • Optional SAE #8 third port location (for 90° use)
  • Hard chrome-plated rod for the most extreme applications
  • Precision-welded piston
  • Gloss black paint finish

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Application: For use in double or single acting hydraulic applications.
Bore Diameter: 3 in.
Includes: Pins and clips
Material: Steel
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 22.7 lb.
Package Quantity: 1
Port Size: SAE 8
Product Type: Hydraulic Cylinders
Product Weight: 22.7 lb.
Special Feature: Snap ring gland
Type: Welded Hydraulic Cylinder
Warranty: 1 Year
Brand: Chief
Pin Diameter: 1 in.
Manufacturer Part Number 297123

What is the overall length with piston fully retracted? What is the pin to pin on-center dimension with piston fully retracted?

Asked by: subcanis
The pin to pin length when fully retracted is 22.25". Overall length when fully retracted is 24.19".
Answered by: MitchellW
Date published: 2018-08-23
