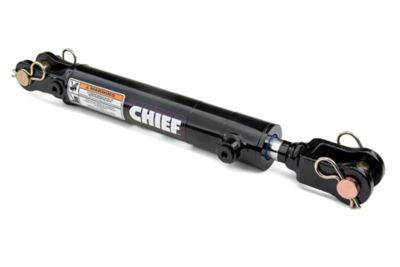

Chief 2.5 in. Bore x 8 in. ASAE Stroke, 1.125 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder

SKU: 130792399
Chief 2.5 in. Bore x 8 in. ASAE Stroke, 1.125 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 5.0
5.0
 (2)

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Chief 2.5 in. Bore x 8 in. ASAE Stroke, 1.125 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the seals. This cylinder provides value pricing without sacrificing quality. Each cylinder undergoes rigorous testing to ensure maximum reliability and performance.

  • Rugged ductile iron welded clevis design
  • Standard SAE #8 ports
  • 3000 PSI seal kits for extended life
  • Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
  • Optional SAE #8 third port location (for 90° use)
  • Hard chrome-plated rod for the most extreme applications
  • Precision-welded piston
  • Gloss black paint finish

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Warranty: 1 Year
Product Weight: 16.1 lb.
Brand: Chief
Maximum Weight Capacity: 16.1 lb.
Special Feature: Snap ring gland
Type: Welded Hydraulic Cylinder
Package Quantity: 1
Material: Steel
Application: For use in double or single acting hydraulic applications.
Includes: Pins and clips
Port Size: SAE 8
Bore Diameter: 2-1/2 in.
Pin Diameter: 1 in.
Maximum Operating Pressure: 3000 PSI
Manufacturer Part Number 297095
Chief 2.5 in. Bore x 8 in. ASAE Stroke, 1.125 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Lift Cylinder Fit perfectly on my new holland mower conditioner.
Date published: 2019-06-05
  • y_2020, m_3, d_27, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_130792399, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • REVIEWS, PRODUCT

Anyone know if this will fit a new holland 488 haybine?

Asked by: Confused369
We would need more information on what cylinder is on this application in order to provide an answer. We are happy to assist further by contacting our Customer Solutions Center at 1-877-718-6750.
Answered by: CodyP
Date published: 2019-06-12

What is the "pin-to-pin" length of this cylinder

Asked by: Joseph64
Retracted length on this one would be 20.25 and extended length would be 28.25.
Answered by: MitchellW
Date published: 2019-03-21
