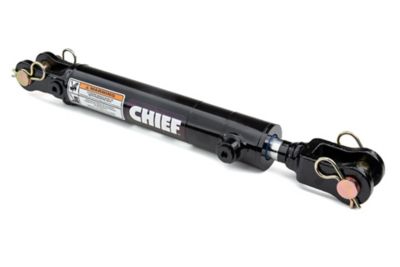

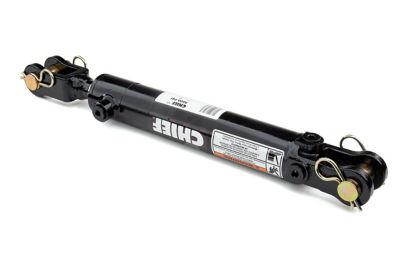

Chief 2.5 in. Bore x 10 in. Stroke, 1.125 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder

SKU: 130792499
Chief 2.5 in. Bore x 10 in. Stroke, 1.125 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Chief 2.5 in. Bore x 10 in. Stroke, 1.125 in. Rod Dia. Chief AT Alternative to Tie-Rod Cylinder features a snap ring on the rod end gland for easy field repair. Unlike a tie-rod, there are no bolts; simply remove the snap ring and you're ready to replace the seals. This cylinder provides value pricing without sacrificing quality. Each cylinder undergoes rigorous testing to ensure maximum reliability and performance.

  • Rugged ductile iron welded clevis design
  • Standard SAE #8 ports
  • 3000 PSI seal kits for extended life
  • Retainer ring (snap ring) head design reduces downtime and allows for quick and easy service
  • Optional SAE #8 third port location (for 90° use)
  • Hard chrome-plated rod for the most extreme applications
  • Precision-welded piston
  • Gloss black paint finish

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Material: Steel
Package Quantity: 1
Brand: Chief
Warranty: 1 Year
Product Weight: 17.2 lb.
Pin Diameter: 1 in.
Application: For use in double or single acting hydraulic applications.
Port Size: SAE 8
Maximum Weight Capacity: 17.2 lb.
Includes: Pins and clips
Special Feature: Snap ring gland
Bore Diameter: 2-1/2 in.
Maximum Operating Pressure: 3000 PSI
Type: Welded Hydraulic Cylinder
Manufacturer Part Number 297096

What are the inside and outside measurements of the end U connections on both ends of cylinder? Thanks

Asked by: dgy87
The space between the ears is 1 3/8" and the outside measurement is 2 1/8".
Answered by: SamW
Date published: 2019-01-29
