Ashley 1200 sq. ft. Wood Stove Insert, AW1820E
Limited Time Deal
Ashley 1200 sq. ft. Wood Stove Insert, AW1820E
Item # 245580299
$124999
Sale
Save(16%)
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Ashley 1200 sq. ft. Wood Stove Insert, AW1820E
Item # 245580299
$124999
Sale
Save(16%)
or
or
$70/mo.† suggested payments with 18 Months Financing or earn $62 in Rewards+ on this purchase.
Valid 8/24/2026 - 9/7/2026
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.

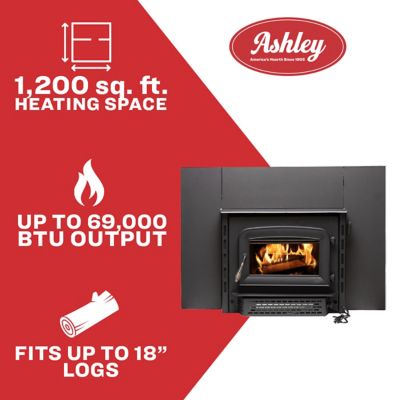

The Ashley Hearth Products AW1820E is an air tight fireplace insert that will greatly improve the efficiency of your fireplace. The AW1820E fireplace insert meets the stringent requirements of the EPA Certification Guidelines. With a heavy cast iron door with a cool touch wood handle, and an air washed ceramic glass that allows a magnificent view of the burning fire, it will be a beautiful addition to your existing hearth. It comes with the hearth surround to fully enclose the existing fireplace, and is equipped with a spring loaded automatic adjustment to make installation a breeze. The insert can accept logs up to 18 in. long. The Ashley AW1820E model replaces the previous Vogelzang model TR004 Colonial fireplace insert and the US Stove Company model 2200IE insert.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Large hearth surround 31 In. x 44 In.
- Over 65.5% efficient heating
- Accepts logs up to 18 in length
- Replaces Vogelzang model TR004 and the US Stove Company 2200IE fireplace insert

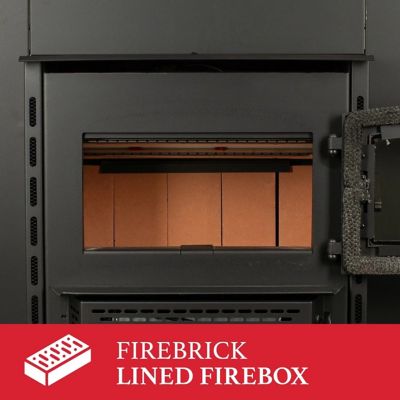

- Heavy 10 gauge reinforced plate steel with firebrick lining
- Cast iron feed door with large 16.5 x 9 ceramic glass window 69,000 BTUs heats up to 1,200 Sq Ft

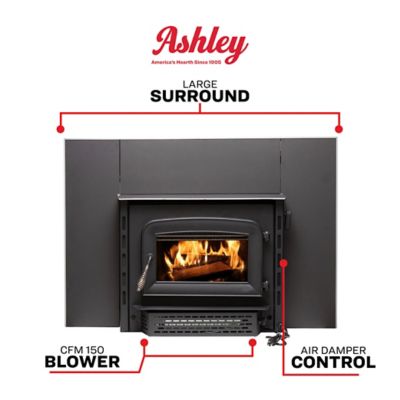

- Adjustable high speed (150 CFM) blower included
| Brand | Ashley |
|---|---|
| Country of Origin | Imported |
| Flue Exit Shape | Round |
| Ignition Type | Manual |
| Indoor/Outdoor | Indoor |
| Intended Use Grade | Standard |
| Maximum BTU Heat Output | 69,000 BTU's |
| Mounting Location | Other |
| Primary Material | Steel |
| Product Height | 22.33 in. |
| Product Length | 20.2 in. |
| Product Weight | 280 lb. |
| Product Width | 27.53 in. |
| Stove Area Heated | 1200 Sq ft |
| Stove Features | N/A |
| Stove Firebox Depth | 18 in |
| Stove Firebox Height | 18.25 in |
| Stove Firebox Width | 18.25 in |
| Stove Maximum BTU Output Range | 60,000 - 80,000 |
| Maximum Log Length | 18 in. |
| Vent Type | N/A |
| Vent Diameter | 6 in. |
| Venting Location | Top |
| Manufacturer Part Number | AW1820E |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 17 Questions
Newest questions
Q: My flue opening is only 4 3/4 inches. What do I do in order to get a 6 inch chimney stack through that space?
a day ago0 Answers

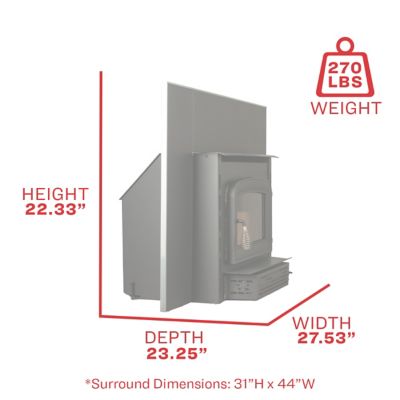

Q: In the Specifications the Height and Width are listed so is the length listed really the depth? And is that the entire unit or is that how deep I need fireplace to be?
a day ago1 Answer
- AI-generated, Human-approvedA: The product length of 20.2 inches refers to the depth of the entire unit. For installation, the firebox itself has a depth of 18 inches.5 hours agoHelpful?
Q: The opening to my fireplace is approximately 24" by 32" will this fit
7 months ago1 Answer
- A: Hello, thank you for your question. The unit insert measures approximately 27.53" (width) x 22.33" (height) x 23.25" (depth).7 months agoHelpful?
Q: This wood stove was shown to me when I looked up hybrid wood stoves near me. I see that this takes 18 inch wood but it doesn't say that it is a hybrid or that it takes pellets also. So was this shown to me incorrectly?
8 months ago1 Answer
- A: The Ashley Hearth AW1820E is a dedicated wood-burning stove insert and is not a hybrid stove in the technical sense. It was likely shown to you because it uses a "non-catalytic secondary burn" system to achieve high efficiency, which is sometimes confused with hybrid technology.8 months agoHelpful?
Q: Can this insert be installed in a pre fab fireplace?
8 months ago1 Answer
- A: Factory built zero clearance fireplaces must be listed and suitable for solid fuel use. Chimneys must be at least 7 inch diameter to accommodate a required, continuous, stainless steel liner from the appliance’s flue collar to the top termination of the chimney.8 months agoHelpful?
Q: Does this require special connection to the chimney ? I have a operational fireplace. It has a operational vent that I open before using my fireplace. It is a rectangular opening vent
8 months ago2 Answers
- A: This unit has a six inch flue which needs to have an air tight connection to the chimney. A 6 inch chimney liner is recommended.8 months agoHelpful?
Q: Hello, does this have a removable ash pan?
8 months ago1 Answer
- A: Hello, thank you for your question. Yes, it has a removable ash pan for easy cleaning.8 months agoHelpful?
Q: Does this have a heat shield you can add on?
10 months ago1 Answer
- A: We do not offer any kind of heat shield that can be added to this heater. There would be no reduction in clearances allowed.10 months agoHelpful?
Q: What chimney pipe should I use for this stove? It says 6 inch but when I look up 6 inch they says double and triple wall and have a diameter of 10-12 inches listed in specifications.
10 months ago1 Answer
- A: You will need to use 6" single wall chimney connector until you penetrate a wall or ceiling. then you will switch to the double or triple wall vent pipe..10 months agoHelpful?
Q: Is there a maximum length the chimney can be? For example I have a 2 story house and it would need to be taller than the 2nd story.
10 months ago2 Answers
- A: Typically anything over 30' is considered excessive. If you can provide some additional information, we would be happy to help. You can give us a call at 423-837-2100.10 months agoHelpful?
1 - 10 of 17 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 17 Questions
Newest questions
Q: My flue opening is only 4 3/4 inches. What do I do in order to get a 6 inch chimney stack through that space?
a day ago0 Answers
Q: In the Specifications the Height and Width are listed so is the length listed really the depth? And is that the entire unit or is that how deep I need fireplace to be?
a day ago1 Answer
- AI-generated, Human-approvedA: The product length of 20.2 inches refers to the depth of the entire unit. For installation, the firebox itself has a depth of 18 inches.5 hours agoHelpful?
Q: The opening to my fireplace is approximately 24" by 32" will this fit
7 months ago1 Answer
- A: Hello, thank you for your question. The unit insert measures approximately 27.53" (width) x 22.33" (height) x 23.25" (depth).7 months agoHelpful?
Q: This wood stove was shown to me when I looked up hybrid wood stoves near me. I see that this takes 18 inch wood but it doesn't say that it is a hybrid or that it takes pellets also. So was this shown to me incorrectly?
8 months ago1 Answer
- A: The Ashley Hearth AW1820E is a dedicated wood-burning stove insert and is not a hybrid stove in the technical sense. It was likely shown to you because it uses a "non-catalytic secondary burn" system to achieve high efficiency, which is sometimes confused with hybrid technology.8 months agoHelpful?
Q: Can this insert be installed in a pre fab fireplace?
8 months ago1 Answer
- A: Factory built zero clearance fireplaces must be listed and suitable for solid fuel use. Chimneys must be at least 7 inch diameter to accommodate a required, continuous, stainless steel liner from the appliance’s flue collar to the top termination of the chimney.8 months agoHelpful?
Q: Does this require special connection to the chimney ? I have a operational fireplace. It has a operational vent that I open before using my fireplace. It is a rectangular opening vent
8 months ago2 Answers
- A: This unit has a six inch flue which needs to have an air tight connection to the chimney. A 6 inch chimney liner is recommended.8 months agoHelpful?
Q: Hello, does this have a removable ash pan?
8 months ago1 Answer
- A: Hello, thank you for your question. Yes, it has a removable ash pan for easy cleaning.8 months agoHelpful?
Q: Does this have a heat shield you can add on?
10 months ago1 Answer
- A: We do not offer any kind of heat shield that can be added to this heater. There would be no reduction in clearances allowed.10 months agoHelpful?
Q: What chimney pipe should I use for this stove? It says 6 inch but when I look up 6 inch they says double and triple wall and have a diameter of 10-12 inches listed in specifications.
10 months ago1 Answer
- A: You will need to use 6" single wall chimney connector until you penetrate a wall or ceiling. then you will switch to the double or triple wall vent pipe..10 months agoHelpful?
Q: Is there a maximum length the chimney can be? For example I have a 2 story house and it would need to be taller than the 2nd story.
10 months ago2 Answers
- A: Typically anything over 30' is considered excessive. If you can provide some additional information, we would be happy to help. You can give us a call at 423-837-2100.10 months agoHelpful?
1 - 10 of 17 Questions
Similar Items
-
Top Rated
-
-
-
-
-
-
-
-
-
Top Rated
-
-
Reviews
1 to 4 of 5 Reviews .
1 – 4 of 5 Reviews
Most Recent
Greensboro nc
Review 1
5 out of 5 stars.
Great customer service
6 months ago
Excellent wood stove.
Heats the whole house easily, solid build quality, and very efficient. Shipping was fast and the staff is always friendly and helpful. Extremely happy with this purchase.
SweepstakesYes
Yes, I recommend this product.
SC
Review 1
2 out of 5 stars.
Would not buy this model again.
6 months ago
Fire box isn't deep so wood has to go in parallel to the mantel. Even with good dry wood, there is a tremendous amount of coal/ash build up when you run the stove constantly. These two things combined cause coal to roll towards the door and then when you open it to refuel, it spills out. If you only build fires occasionally, it's probably a fine stove. If you use it as part of your regular heating, look at other models.
No, I do not recommend this product.
Michigan
Reviews 19
5 out of 5 stars.
Great looking insert
7 months ago
Awesome insert. Great value for extra heat.
SweepstakesYes
Yes, I recommend this product.
Sarahanne
Review 1
5 out of 5 stars.
Super easy set up!
a year ago
We had never installed a woodstove. But the set up was so simple! Easily fit in our existing fireplace and we had it warming our house within a few hours!
