K2 Pumps 3/4 HP 115/230V Electric Thermoplastic Shallow Well Jet Pump, 9.2 GPM, Lead-Free
K2 Pumps 3/4 HP 115/230V Electric Thermoplastic Shallow Well Jet Pump, 9.2 GPM, Lead-Free
Item # 223529999
$219.99
or
or
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.
K2 Pumps 3/4 HP 115/230V Electric Thermoplastic Shallow Well Jet Pump, 9.2 GPM, Lead-Free
Item # 223529999
$219.99
or
or
$37/mo.† suggested payments with 6 Months Financing or earn $10 in Rewards+ on this purchase.
This item is available online only
Out of stock delivering to
37027
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.

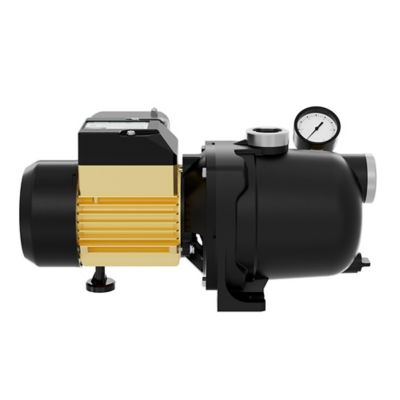

The K2 Pumps 3/4 HP Lead-free shallow well jet pump operates at depths to water up to 25 feet. Maximum pressure shutoff 67 PSI. Constructed of corrosion-resistant reinforced thermoplasic. Pre-installed pressure gauge. Fan cooled motor extends the life of the pump. Self-priming after pump is initially filled.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Installed above ground for shallow wells with depth to water up to 25 ft. deep
- Flow rate of 9.2 GPM at 40 psi
- 115/230V Dual voltage motor, preset at 230V
- Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
- 30/50 Pressure switch
- 1-1/4 in. NPT Suction and 1 in. NPT Discharge
- Pre-installed Pressure Gauge
- 1 Year Warranty
| Brand | K2 Pumps |
|---|---|
| Country of Origin | Imported |
| Amperage | 8 A/4 A |
| Body Material | Thermoplastic |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 0 N/A |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 9.2 GPM |
| Discharge Rate at 25 ft. | 5.8 GPM |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 115/230 Dual voltage motor, preset at 230V |
| Horsepower | 3/4 HP |
| Impeller Material | Thermoplastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Maximum Flow Rate | 9.2 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25 ft. |
| Maximum Operating Temperature | 95 deg. |
| Minimum Operating Temperature | 32 deg. |
| Power Type | Electric |
| Product Height | 7.36 in. |
| Product Length | 7.99 in. |
| Product Weight | 15.7 lb. |
| Product Width | 15 in. |
| Motor Type | Permanent Split Capacitor (PSC) |
| Voltage | 115v/230v |
| Warranty | 1 Year |
| Manufacturer Part Number | WPS07503K |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: I am drawing water from spring fed creek that is approximately 300 feet away from building. Elevation difference of approx 15ft using 1" pvc pipe . would i need shallow well pump or deep well pump?
a year ago1 Answer
- A: Larry Stringham " Thank you for reaching out to technical support team". We strongly encourage you to be as close to the water source as possible. Unless you make the two-pipe conversion the convertible pump will still act in a shallow well capacity. People often find success having one pump draw from the source and another to boost to the location. -GP Supporta year agoHelpful?
Q: Is it self priming
a year ago2 Answers
- A: Mike - Thank you for reaching gout to our Technical Support Team. The pump needs a foot valve at the bottom of the line. This will keep the pump Self -priming. -GP Supporta year agoHelpful?
Q: Will it operate with a yeti 3000 set for 115 volt battery pack?
2 years ago1 Answer
- A: Willie - We can't comment on other products that are not our own. We can Say that this uses 8Amps on 115V and 4Amps on the 220V. The starting Voltage would be 21 Amps and 10 amps respectively. Hopefully this helps in determining if the yeti is appropriate based on it's requirements. -GP Support2 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: I am drawing water from spring fed creek that is approximately 300 feet away from building. Elevation difference of approx 15ft using 1" pvc pipe . would i need shallow well pump or deep well pump?
a year ago1 Answer
- A: Larry Stringham " Thank you for reaching out to technical support team". We strongly encourage you to be as close to the water source as possible. Unless you make the two-pipe conversion the convertible pump will still act in a shallow well capacity. People often find success having one pump draw from the source and another to boost to the location. -GP Supporta year agoHelpful?
Q: Is it self priming
a year ago2 Answers
- A: Mike - Thank you for reaching gout to our Technical Support Team. The pump needs a foot valve at the bottom of the line. This will keep the pump Self -priming. -GP Supporta year agoHelpful?
Q: Will it operate with a yeti 3000 set for 115 volt battery pack?
2 years ago1 Answer
- A: Willie - We can't comment on other products that are not our own. We can Say that this uses 8Amps on 115V and 4Amps on the 220V. The starting Voltage would be 21 Amps and 10 amps respectively. Hopefully this helps in determining if the yeti is appropriate based on it's requirements. -GP Support2 years agoHelpful?
Similar Items
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
-
-
-
Frequently Bought Together
-
-
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Top Rated
-
Customers Also Bought
-
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Reviews
1 to 2 of 2 Reviews .
1 – 2 of 2 Reviews
Most Recent
Napa County, CA
Review 1
4 out of 5 stars.
K2 Shallow Well Pump
a year ago
Package arrived one day early - good, because we were using our backup water storage. Arrived complete and in good condition, with owner’s manual/installation instructions. Installation was straightforward and simple: two pipe connections and three electrical wires. Started right up when primed, and worked as expected. A little noisier than I expected/noisier than the old County Line pump it replaced.
SweepstakesYes
Yes, I recommend this product.
Anonymous
Review 1
5 out of 5 stars.
Satisfied customer
2 years ago
I am completely satisfied with the water pump.
SweepstakesYes
Yes, I recommend this product.
