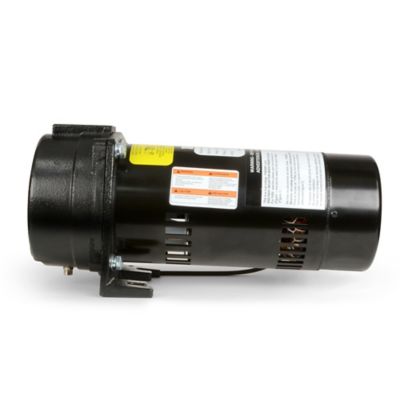

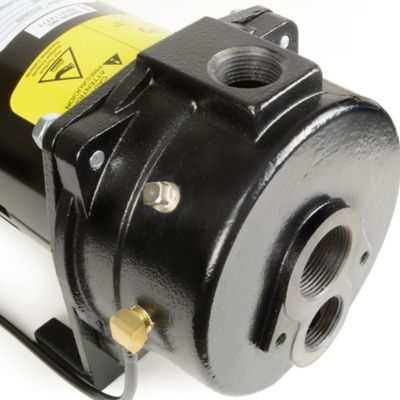

A: No, this specific pump cannot be mounted vertically. The CountyLine 1 HP Cast-Iron Deep/Convertible Well Jet Pump is designed strictly for horizontal installation. While the front bolt pattern on the cast iron volute may look visually similar to your existing vertical pump, standard horizontal jet pumps have internally configured bearing lubrication systems, internal seals, and specific drain/prime port placements that require them to sit flat on a level floor or tank bracket. Flipping it vertically will lead to motor bearing failure, water leaks at the shaft seal, and an inability to properly prime or drain the system

A: Yes, the CountyLine 1 HP Cast Iron Deep/Convertible Well Jet Pump is designed to pull water from a well and supply it to a home. It works for both shallow wells (25 feet deep or less) and deep wells (up to 70 feet deep)

A: Not designed for that but do have people use them that way.

A: A convertible well pump can be adapted to pull water from either a shallow well (0 to 25 feet deep) or a deep well (typically 25 to 70+ feet deep). This is achieved by changing the placement of the "jet" (ejector), which forces water upward

A: 30/50

A: 1” discharge 1 1/4 suction

A: Jet pump delivers superior performance at depths to water of 70 ft. or less

A: No, A pressure tank is usually used after the pump to control water flow

A: Should have been in the box Please call our customer service line to have one sent out if needed 877-326-3571
