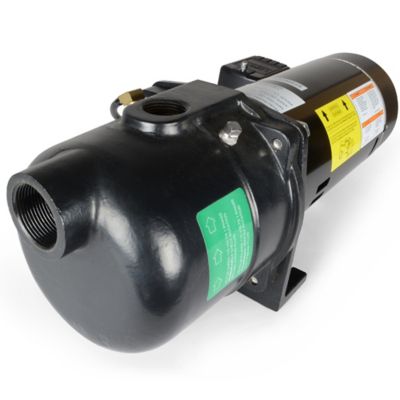

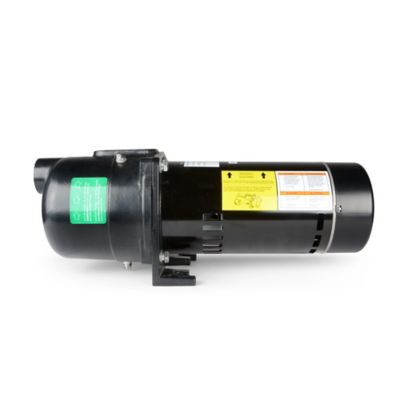

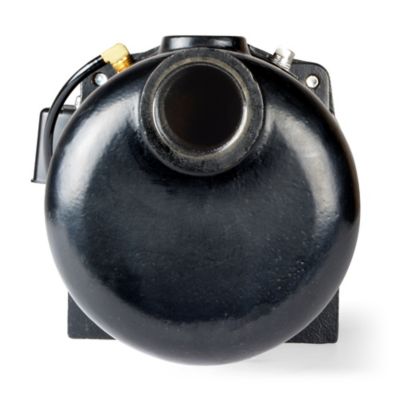

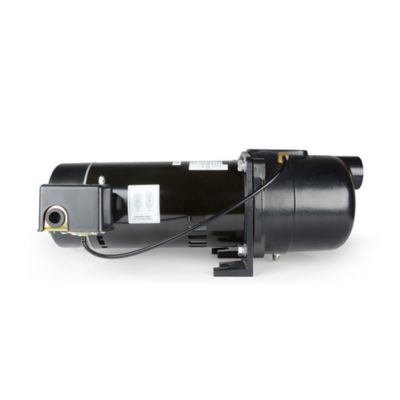

CountyLine 3/4 HP 115/230V Electric Cast Iron Shallow Well Jet Pump, 8.1 GPM
Exclusive
CountyLine 3/4 HP 115/230V Electric Cast Iron Shallow Well Jet Pump, 8.1 GPM
Item # 236234899
Stocked & Ready
$549.99
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Exclusive
CountyLine 3/4 HP 115/230V Electric Cast Iron Shallow Well Jet Pump, 8.1 GPM
Item # 236234899
Stocked & Ready
$549.99
or
or
$42/mo.† suggested payments with 12 Months Financing or earn $24 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Pickup Later at Grassland (franklin) TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The CountyLine 3/4 HP 115/230V Cast-Iron Shallow Well Jet Pump delivers superior performance at depths to water of 25 ft. or less. Featuring rugged cast-iron construction and a heavy-duty, dual-voltage motor, this jet pump is designed for long-lasting, reliable use. It's backed by a 2 year warranty. Plumbing skills are required for installation.To install the jet pump, plumbing skills are required.
- Pumps 11.5 GPM at 0 degrees lift; 9.1 GPM at 10 ft. lift
- Powered by a heavy-duty, 3/4 HP dual-voltage motor
- Shallow well jet pump delivers superior performance at depths to water of 25 ft. or less
- Rugged cast-iron construction ensures lasting use
- Moderate level installation (plumbing skills required)
- For operation, a check valve, hacksaw, screwdriver, fuse box or circuit breaker, adjustable wrench, well seal, pipe wrench, tank tee and PVC cement may be needed (sold separately)
- Backed by a 2-year warranty
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Amperage | 11.1,5.1 Amps |
| Body Material | Cast iron |
| Compatible Pipe Material | Poly, PVC |
| Compatible Well Diameter | 3 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1.14 in. |
| Discharge Rate at 0 ft. | 10.3 GPM |
| Discharge Rate at 25 ft. | 5.5 GPM |
| Discharge Rate at 50 ft. | 0 GPM |
| Features | Capacity to 11.5 GPM; Cast iron pump head; Built-in shallow well jet has corroson-resistant nozzle and venturi; Stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal and insulated windings; 30/50 Presssure switch |
| Head Pressure | 64 PSI |
| Horsepower | 34 HP |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.14 in. |
| Maximum Flow Rate | 8.1 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 32 deg. F |
| Power Type | Electric |
| Product Height | 7.87 in. |
| Product Length | 24 in. |
| Product Weight | 28.2 lb. |
| Product Width | 11.4 in. |
| Motor Type | PSC |
| Voltage | 115V230V |
| Warranty | 2 Year |
| Manufacturer Part Number | CL7SWJ |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: What size is the discharge pipe
8 months ago1 Answer
- A: 1” discharge8 months agoHelpful?
Q: Can I get replacement parts for Countyline pumps
a year ago1 Answer
- A: No replacement parts are available, pumps are to be returned or exchanged at local TSC store.a year agoHelpful?
Q: Does this pump need a pressure tank or will that cause it to cycle more often
a year ago1 Answer
- A: Yes a pressure tank is suggested for potable water to the housea year agoHelpful?
Q: Where does one get a replacement pressure switch for this? Note that the supplied switch has a MALE NPT fitting on the bottom, not female like most.
a year ago1 Answer
- A: Hi Neighbor! Please contact the Tractor Supply Co. Customer Solutions team at 877-718-6750 so they may assist.a year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: What size is the discharge pipe
8 months ago1 Answer
- A: 1” discharge8 months agoHelpful?
Q: Can I get replacement parts for Countyline pumps
a year ago1 Answer
- A: No replacement parts are available, pumps are to be returned or exchanged at local TSC store.a year agoHelpful?
Q: Does this pump need a pressure tank or will that cause it to cycle more often
a year ago1 Answer
- A: Yes a pressure tank is suggested for potable water to the housea year agoHelpful?
Q: Where does one get a replacement pressure switch for this? Note that the supplied switch has a MALE NPT fitting on the bottom, not female like most.
a year ago1 Answer
- A: Hi Neighbor! Please contact the Tractor Supply Co. Customer Solutions team at 877-718-6750 so they may assist.a year agoHelpful?
Similar Items
-
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Reviews
1 to 1 of 2 Reviews .
1 – 1 of 2 Reviews
Most Recent
Indiana
Review 1
5 out of 5 stars.
Needed pump asap
2 years ago
Well pump went out overnight and no plumbers around the area had hours on Saturday so looked up what TSC had available and quickly ran to get this pump. So far so good!
Yes, I recommend this product.
