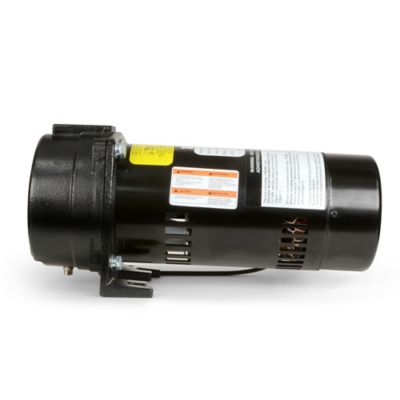

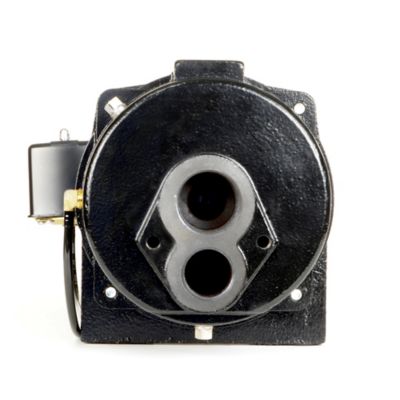

ECO-FLO Products Inc. 1 HP 115/230V Electric Convertible Deep Well Jet Pump, 14.8 GPM
$349.99
ECO-FLO Products Inc. 1 HP 115/230V Electric Convertible Deep Well Jet Pump, 14.8 GPM
ECO-FLO Products Inc. 1 HP 115/230V Electric Convertible Deep Well Jet Pump, 14.8 GPM
Item # 116839399
$349.99
or
or
Neighbor’s Club Members earn points with purchases.
ECO-FLO Products Inc. 1 HP 115/230V Electric Convertible Deep Well Jet Pump, 14.8 GPM
Item # 116839399
$349.99
or
or
$59/mo.† suggested payments with 6 Months Financing or earn $17 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The ECO-FLO Products Inc. Convertible Deep Well Jet Pump can be used in either shallow or deep well installations in 4 in. wells. The well pump replacement helps provide superior performance and high capacities with more pressure for deep water wells at 20 ft. Ideal for shallow well applications with pumping levels to 25 ft., and for deep well applications with pumping levels to 90 ft. The pump has a dual voltage design of 115/230V.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Convertible Well pump with cast-iron construction
- Open drip proof motor protects all electrical components from dust and insects

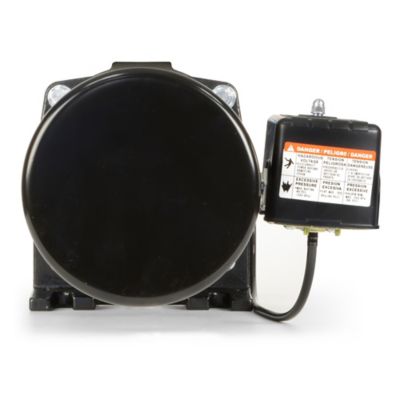

- 30/50 pressure switch
- Motor consists of stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal and insulated windings
- Well ejector kit included
- Dual voltage 115/230V
- 1-1/4 in. suction and 1 in. discharge
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 11.9 Amp -6 Amp |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 14.8gpm |
| Discharge Rate at 25 ft. | 8.7gpm |
| Discharge Rate at 50 ft. | 5gpm |
| Features | 1 HP - pumps up to 9.0-14.8 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor, Well Injector Kit included (Well Injector Casting, Jet Nozzle, Venturi Tubes,and Hardware) 1-1/4 in. Suction, 1 in. Discharge |
| Horsepower | 1hp |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 14.8 GPM |
| Maximum Head Lift | 90 ft. |
| Maximum Operating Depth | 90 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Power Type | Electric |
| Product Height | 13.15 in. |
| Product Length | 21.65 in. |
| Product Weight | 46.74 lb. |
| Product Width | 11.57 in. |
| Motor Type | PSC |
| Voltage | 115-230v |
| Warranty | 2 Year |
| Manufacturer Part Number | EFCWJ10 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 15 Questions
Newest questions
Q: I have a 6" diameter deep well What hospital hp and pump should i use if it is 90 ft
2 years ago1 Answer
- A: Hi Tanya, Please contact the manufacturer for further assistance. ECO-FLO Customer Service at 1-877 326-35612 years agoHelpful?
Q: Does the diamiter of the well matter regarding deep well pumps
2 years ago1 Answer
- A: Hi Tanya, Here is the user manual it provides more information on how properly install this depending on the size of your diameter. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/83/93/1168393_Man1.pdf2 years agoHelpful?
Q: My well casing is 2 1/4 inches......is there a well cap for that?
2 years ago1 Answer
- A: Hi JK10, For this specific inquiry please contact the manufacturer. ECO-FLO Customer Service at 1-877 326-35612 years agoHelpful?
Q: Can it be installed vertically
2 years ago1 Answer
- A: Hi PDawg23, Thank you for your interest in the ECO-FLO Convertible Well Jet Pump. This pump is self-priming after the first initial install priming and it is designed to be installed horizontally to properly hold the prime.2 years agoHelpful?
Q: How do you use on a shallow well? Do you plug one of the intake lines?
2 years ago1 Answer
- A: Hi, Here is the link to the online owner's manual that will explain how to use with a shallow well. Simply copy and paste the link into a browser to view. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/83/93/1168393_Man1.pdf2 years agoHelpful?
Q: Would you need a pressure tank on Efcwj10 deep welll jet pump for a sprinkler system
4 years ago1 Answer
- A: Please refer to the instruction manual, page five 5), which is linked below. Thank you. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/83/93/1168393_Man1.pdf4 years agoHelpful?
Q: What material is the impeller made from, plastic or metal ?
4 years ago1 Answer
- A: It is made from steel.4 years agoHelpful?
Q: Does this pump come with the injector kit
4 years ago1 Answer
- A: This pump does include an ejector kit.4 years agoHelpful?
Q: what is the maximum lift in the convertable configuration
4 years ago1 Answer
- A: The EFCWJ10 convertible jet pump has a max lift of 90 feet in a deep well application.4 years agoHelpful?
Q: Is a repair kit available for an ECO-FLO EFCWJ10 Convertible Deep Well Jet Pump that includes the impeller and diffuser.
4 years ago1 Answer
- A: For a repair kit, please contact 1 (800)-368-8604.4 years agoHelpful?
1 - 10 of 15 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 15 Questions
Newest questions
Q: I have a 6" diameter deep well What hospital hp and pump should i use if it is 90 ft
2 years ago1 Answer
- A: Hi Tanya, Please contact the manufacturer for further assistance. ECO-FLO Customer Service at 1-877 326-35612 years agoHelpful?
Q: Does the diamiter of the well matter regarding deep well pumps
2 years ago1 Answer
- A: Hi Tanya, Here is the user manual it provides more information on how properly install this depending on the size of your diameter. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/83/93/1168393_Man1.pdf2 years agoHelpful?
Q: My well casing is 2 1/4 inches......is there a well cap for that?
2 years ago1 Answer
- A: Hi JK10, For this specific inquiry please contact the manufacturer. ECO-FLO Customer Service at 1-877 326-35612 years agoHelpful?
Q: Can it be installed vertically
2 years ago1 Answer
- A: Hi PDawg23, Thank you for your interest in the ECO-FLO Convertible Well Jet Pump. This pump is self-priming after the first initial install priming and it is designed to be installed horizontally to properly hold the prime.2 years agoHelpful?
Q: How do you use on a shallow well? Do you plug one of the intake lines?
2 years ago1 Answer
- A: Hi, Here is the link to the online owner's manual that will explain how to use with a shallow well. Simply copy and paste the link into a browser to view. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/83/93/1168393_Man1.pdf2 years agoHelpful?
Q: Would you need a pressure tank on Efcwj10 deep welll jet pump for a sprinkler system
4 years ago1 Answer
- A: Please refer to the instruction manual, page five 5), which is linked below. Thank you. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/83/93/1168393_Man1.pdf4 years agoHelpful?
Q: What material is the impeller made from, plastic or metal ?
4 years ago1 Answer
- A: It is made from steel.4 years agoHelpful?
Q: Does this pump come with the injector kit
4 years ago1 Answer
- A: This pump does include an ejector kit.4 years agoHelpful?
Q: what is the maximum lift in the convertable configuration
4 years ago1 Answer
- A: The EFCWJ10 convertible jet pump has a max lift of 90 feet in a deep well application.4 years agoHelpful?
Q: Is a repair kit available for an ECO-FLO EFCWJ10 Convertible Deep Well Jet Pump that includes the impeller and diffuser.
4 years ago1 Answer
- A: For a repair kit, please contact 1 (800)-368-8604.4 years agoHelpful?
1 - 10 of 15 Questions
Similar Items
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
Items You May Like
-
Top Rated
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
Reviews
- closing
- noise level
- price
- turning
1 to 4 of 13 Reviews .
1 – 4 of 13 Reviews
Most Recent
Rural Arkansas
Review 1
4 out of 5 stars.
My experience
a year ago
Easy to install and works great
SweepstakesYes
Yes, I recommend this product.
Orlando fl
Review 1
1 out of 5 stars.
It was bad!
a year ago

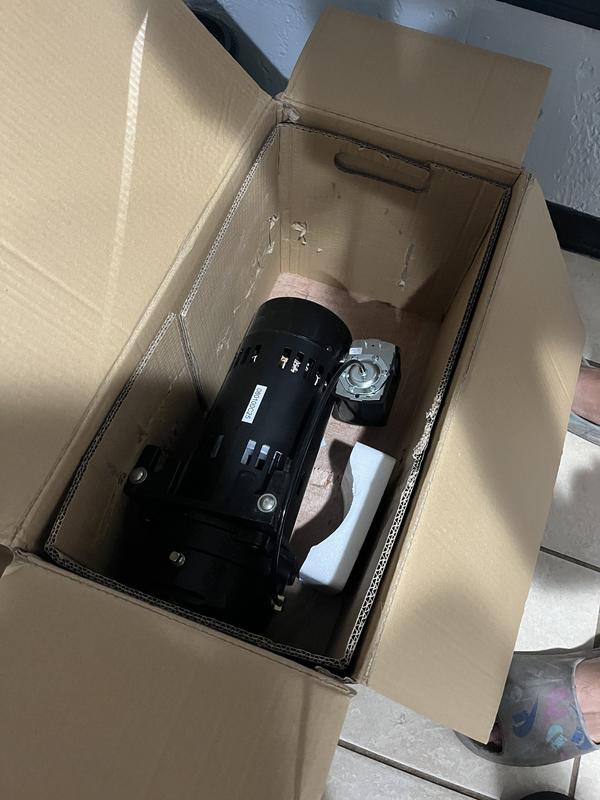

My water pump got bad so decided to order this one as an emergency and it turned out it arrive almost close to 4weeks and to be not the same from the picture and the pieces inside did to came and it was all loss with no support to the motor! I was really dissatisfied and disappointed had to returned it :-(
