Superior Pump 1/2 HP 115/230V Electric 1.25 in. Shallow Well Jet Pump, 12.5 GPM
Superior Pump 1/2 HP 115/230V Electric 1.25 in. Shallow Well Jet Pump, 12.5 GPM
Item # 117648699
Neighbor’s Club Members earn points with purchases.
Item # 117648699
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

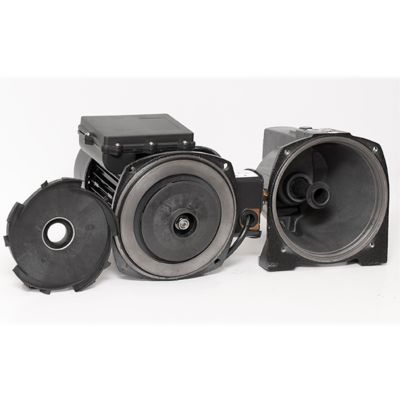

The Superior Pump 1/2 HP 1.25 in. Electric-Powered Shallow Well Jet Pump boasts rugged cast-iron construction. Superior Pump builds pumps that are truly built to last and are 100% factory tested. Superior Pump uses quality components including solid copper motor windings, heavy-duty stainless steel jacketed shaft seals, double O-ring seals on motor plate, and electronically controlled split capacitors. Superior Pump model 94505, 1/2 HP dual voltage cast iron shallow well jet pump, will move water up to 25 ft. of lift. This pump is UL/cu listed and backed by a 3 year warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Rugged cast-iron construction
- Pumps water from well up to 25 ft. of vertical lift
- Dual voltage motor (115/230V)

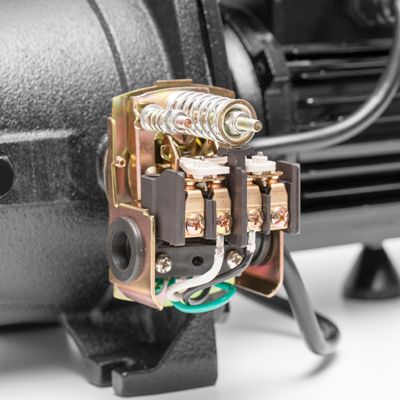

- Pre-mounted fully adjustable pressure switch
- Cast-iron seal plate
- Tough thermoplastic impeller and glass filled thermoplastic diffuser
- For use in shallow well applications up to 25 ft.

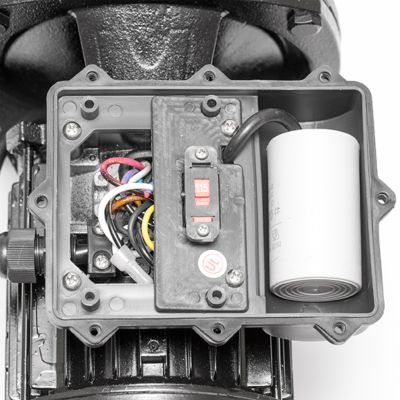

- Continuous duty, thermally protected split capacitor motor
- Prop 65: Vinyl chloride chemical not found in water delivery system
- 3 year warranty
| Brand | Superior Pump |
|---|---|
| Country of Origin | Imported |
| Amperage | 6.4 3.2 |
| Body Material | Cast iron |
| Compatible Pipe Material | ABS |
| Compatible Well Diameter | 24 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. NPT |
| Discharge Rate at 0 ft. | 10 gpm |
| Discharge Rate at 25 ft. | 6.8 gpm |
| Discharge Rate at 50 ft. | 0 GPH |
| Features | 1/2 HP dual voltage motor (115/230v), Rugged cast iron pump body for durability, Tough thermoplastic impeller, Glass filled thermoplastic diffuser, Cast iron seal plate, Pre-mounted, fully adjustable pressure switch, For shallow well applications |
| Head Pressure | 67 PSI |
| Horsepower | 0.5 HP |
| Impeller Material | Thermoplastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1-14 in. |
| Maximum Flow Rate | 12.5 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25 ft. |
| Maximum Operating Temperature | 120 deg. |
| Minimum Operating Temperature | 32 deg. |
| Power Type | Electric |
| Product Height | 8 in. |
| Product Length | 17-14 in. |
| Product Weight | 33.1 lb. |
| Product Width | 10-34 in. |
| Motor Type | Split Capacitor |
| Voltage | 115V230V |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 94505 |
