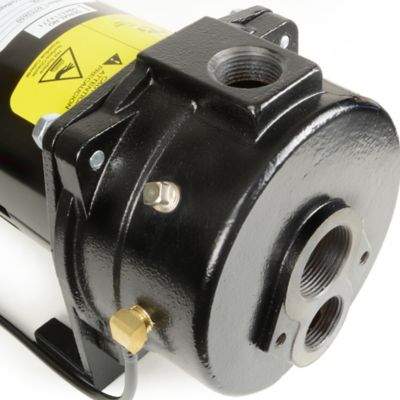

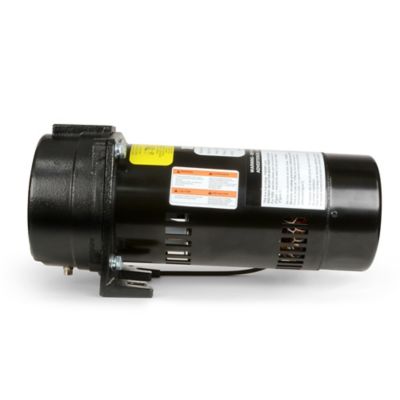

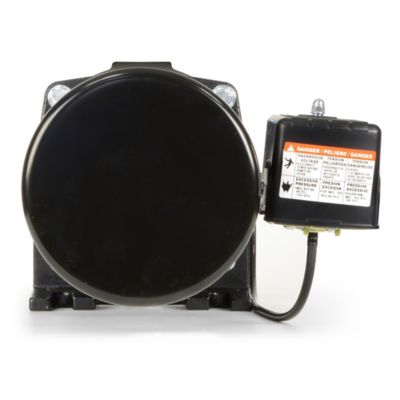

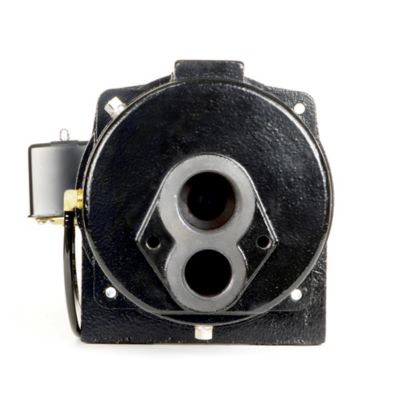

ECO-FLO Products Inc. 1/2 HP 115/230V Electric Convertible Deep Well Jet Pump, 4.5 GPM
ECO-FLO Products Inc. 1/2 HP 115/230V Electric Convertible Deep Well Jet Pump, 4.5 GPM
Item # 116839199
$299.99
or
or
Neighbor’s Club Members earn points with purchases.
ECO-FLO Products Inc. 1/2 HP 115/230V Electric Convertible Deep Well Jet Pump, 4.5 GPM
Item # 116839199
$299.99
or
or
$50/mo.† suggested payments with 6 Months Financing or earn $14 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The ECO-FLO Convertible Deep Well Jet Pump can be used in either shallow or deep well installations in 4 in. wells. The well pump replacement helps provide Superior Performance and High Capacities with more Pressure for Deep Water Wells at 20 ft. Ideal for shallow well applications with pumping levels to 25 ft., and for deep well applications with pumping levels to 90 ft. The pump is rated for 4.5 GPM.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Well pump replacement with cast-iron construction
- 1/2 HP- Pumps up to 4.5 GPM
- Dual Voltage 115/230V (Factory set at 230V)
- 1/4" Suction, 1" discharge
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 108 Amp -5.4 Amp |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 4.5gpm |
| Discharge Rate at 25 ft. | 4 ft. |
| Discharge Rate at 50 ft. | 2.3 ft. |
| Features | 1/2 HP - pumps up to 4.5 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor, Well Injector Kit included (Well Injector Casting, Jet Nozzle, Venturi Tubes,and Hardware) 11/4 in. Suction, 1 in. Discharge |
| Head Pressure | 40 PSI |
| Horsepower | 0.5hp |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 4.5 GPM |
| Maximum Head Lift | 60 ft. |
| Maximum Operating Depth | 60 ft. |
| Maximum Operating Temperature | 0 N/A |
| Minimum Operating Temperature | 0 N/A |
| Power Type | Electric |
| Product Height | 12.6 in. |
| Product Length | 17.13 in. |
| Product Weight | 42.33 lb. |
| Product Width | 8.66 in. |
| Motor Type | PCS |
| Voltage | 115-230v |
| Warranty | 2 Year |
| Manufacturer Part Number | EFCWJ5 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Need to pump water from lake. Shore is 12 ft above water line. Then need to pump water 18 ft up to a storage tank. Which pumps will do this
9 months ago1 Answer
- A: Hello, thank you for your question. Per the vendor, "this pump should work just fine."9 months agoHelpful?
Q: What is gpm
3 years ago1 Answer
- A: GPM means Gallons Per Minute. Also known as "flow rate", GPM is a measure of how many gallons of water flow out of your shower head each minute.3 years agoHelpful?
Q: Is this item available at the hollins store today
4 years ago1 Answer
- A: For instore inventory please contact that store.3 years agoHelpful?
Q: I have a 2" pvc draw pipe in my pond can I connect directly to it? With proper reducers.
4 years ago1 Answer
- A: Yes the EFCWJ convertible jet pump can be used as in a “shallow well” application with the cast iron ejector on front of motor. The suctions has a 1 ¼” inlet.4 years agoHelpful?
Q: can you wire this into a pressure switch so it will work for a well?
Anonymous5 years ago1 Answer
- A: For additional product support, please contact customer service. 877-326-35615 years agoHelpful?
Q: What does total head mean. This model indicates 140 feet whereas the 1 hp ew10 says 122 feet.
Anonymous5 years ago1 Answer
- A: Thank you for your question! Total head means the sum of the elevation head, pressure head, and velocity head of a liquid. For this model it is 140 Ft.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: Need to pump water from lake. Shore is 12 ft above water line. Then need to pump water 18 ft up to a storage tank. Which pumps will do this
9 months ago1 Answer
- A: Hello, thank you for your question. Per the vendor, "this pump should work just fine."9 months agoHelpful?
Q: What is gpm
3 years ago1 Answer
- A: GPM means Gallons Per Minute. Also known as "flow rate", GPM is a measure of how many gallons of water flow out of your shower head each minute.3 years agoHelpful?
Q: Is this item available at the hollins store today
4 years ago1 Answer
- A: For instore inventory please contact that store.3 years agoHelpful?
Q: I have a 2" pvc draw pipe in my pond can I connect directly to it? With proper reducers.
4 years ago1 Answer
- A: Yes the EFCWJ convertible jet pump can be used as in a “shallow well” application with the cast iron ejector on front of motor. The suctions has a 1 ¼” inlet.4 years agoHelpful?
Q: can you wire this into a pressure switch so it will work for a well?
Anonymous5 years ago1 Answer
- A: For additional product support, please contact customer service. 877-326-35615 years agoHelpful?
Q: What does total head mean. This model indicates 140 feet whereas the 1 hp ew10 says 122 feet.
Anonymous5 years ago1 Answer
- A: Thank you for your question! Total head means the sum of the elevation head, pressure head, and velocity head of a liquid. For this model it is 140 Ft.5 years agoHelpful?
