The ECO-FLO Products Inc. 1 HP 115/230V Electric Shallow Well Jet Pump provides superior performance and a higher capacity with more pressure for shallow wells of 25 ft. or less. This shallow well pump delivers a strong flow rate of up to 14.7 GPM for reliable water system performance. The sturdy cast-iron pump head provides lasting durability for demanding applications. A built-in overload motor helps protect the pump during operation, while the corrosion-resistant nozzle and Venturi provide reliable performance. The motor features a stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal and insulated windings for dependable operation. The included pressure gauge and switch make it easy to monitor and control system pressure. With 1-1/4 in. suction and 1 in. discharge connections, this pump is designed for compatible water system installations. A dual-voltage 115/230V design provides flexible installation options for residential water systems.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Moves water up to 14.7 GPM
- Sturdy cast-iron pump construction withstands rigorous use
- Motor features stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal, and insulated windings

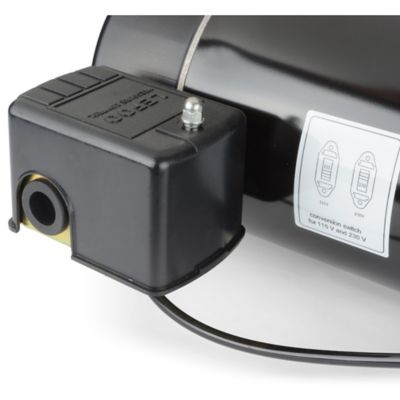

- Pressure gauge and switch included with the jet pump
- 1-1/4 in. suction, and 1 in. discharge
- Dual voltage of 115/230V
- 1 HP power rated
- Built-in overload protection
- Recommended to use this pump with shallow wells of 25 ft. or less
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 11.4 Amp -5.7 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 3 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 14.7gpm |
| Discharge Rate at 25 ft. | 8.7gpm |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 1 HP - pumps up to 13.6 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor has Corrosion-resistant Nozzle and Venturi 1-14 in. Suction, 1 in. Discharge |
| Horsepower | 1hp |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 14.7 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Power Type | Electric |
| Product Height | 13.15 in. |
| Product Length | 21.65 in. |
| Product Weight | 41 lb. |
| Product Width | 11.57 in. |
| Motor Type | PSC |
| Voltage | 115v -230v |
| Warranty | 1 Year |
| Manufacturer Part Number | EFSWJ10 |
