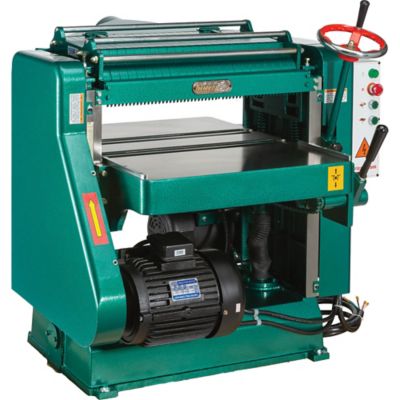

Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer

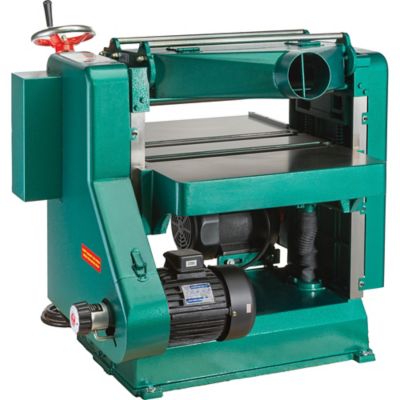

Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
$7875.00
See Price at Checkout

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Grizzly G7213Z-24 in. 7-1/2 HP 3-Phase Planer

Item # 229411899

Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
Image showing  G7213Z-24 in. 7-1/2 HP 3-Phase Planer
$7875.00
See Price at Checkout

This item is available online only

Delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Wide, solid wood panels? No problem! Durability, dependability and capacity are the hallmarks of this massive machine.

If you're looking for an industrial-duty planer that will outlast the building you put it in, the G7213Z 24" Planer is the one!

The 7-1/2 HP, 3-phase motor powers through the toughest hardwoods with ease as expected of any production shop.

Planing capacity is 24" thanks to the four high-speed steel knives (HSS) on the 3-1/8" cutterhead.

The HSS knives have been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The built-in chip deflector leads directly into the dust hood with a 5" dust port to help ensure the work area stays as clear as possible.

The G7213Z manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your planer.

*This machine is prewired for 220V. We can rewire to 440V in a few days' time for a fee. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.



For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Main motor: 7-1/2 HP, 220V/440V* (prewired 220V), 3-phase, 20A/10A
  • Feed motor: 2 HP, 6A/3A
  • Maximum stock width: 24"
  • Maximum stock thickness: 7"
  • Minimum stock thickness: 1/4"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Cutterhead diameter: 3-1/8"
  • Cutterhead type: 4-knife
  • Knife size & type: 24" x 1" x 1/8", HSS, single-sided, solid
  • Cutterhead speed: 5200 RPM

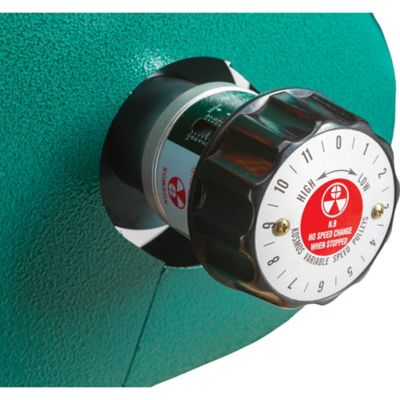

  • Feed rate: Variable, 17-26 FPM
  • Table size with extensions: 24-1/8" x 31-1/8"
  • Dust port size: 5"
  • Footprint: 20-1/2" x 24-1/2"
  • Overall dimensions: 42" W x 40-1/2" D x 37" H
  • Approx. shipping weight: 1130 lbs.
  • Board return rollers
  • Precision-ground cast-iron table
  • Grease fittings for cutterhead ball bearings
  • Heavy-duty cast-iron construction throughout
  • Magnetic switch with thermal overload protection
  • Lever-adjustable bed rollers
  • Handwheel table height adjustment
  • Segmented chip breaker and infeed roller
  • Finely finished steel outfeed roller
  • Inch and metric scale increments
  • Dust covers protect vertical support columns and leadscrews
  • 1-year limited warranty
