If you are looking for a highly sophisticated combination milling drilling machine with all the bells and whistles, look no further than the G0935 1-1/2 HP Mill/Drill. This machining center incorporates high-level features such as a 3-axis digital DRO, Z-axis spindle DRO, a variable-speed X-axis power feed, and a powered head for quickly setting the desired Z-height.
Electronic variable speed (EVS) allows for on-the-fly speed adjustments-no need for belt changes.
This Mill/Drill is also equipped with a variable-speed 1-1/2 HP hi-torque motor with a digital RPM readout, an R-8 spindle, and a fine feed depth control.
The G0935 features a spindle-depth DRO for accurate and repeatable cuts.

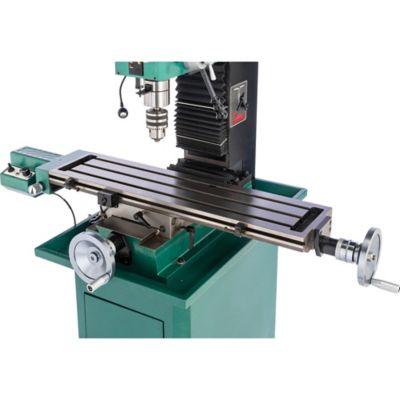

The 7"" x 29"" milling table allows ample room for projects of all sizes, while a 1-1/8" drilling capacity provides stout cutting capability.
Like all Grizzly mills, the G0935 comes with a 1-year limited warranty.
The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the milling machines may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:Made in an ISO 9001 factory
- 3-Axis DRO with quill DRO and 0.001"" resolution
- Variable-speed spindle with digital RPM display
- Variable-speed X-axis power feed table
- 3" Spindle stroke with fine downfeed
- Forward/reverse spindle control
- 1-16mm JT6 drill chuck
- Cabinet stand with built-in storage
- LED work light
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 1-1/2 HP, 110V, single-phase, 12A
- Spindle taper: R-8
- Spindle Speed: Variable, 80-1700 RPM low, 280-5000 RPM high
- Max. distance spindle to column: 9-1/16""
- Max. distance spindle to table: 12-5/8""
- Spindle travel: 3-5/64""
- Drilling capacity: 1- 1/8""
- Head travel: 13-3/8""
- Table size: 29-1/8"" x 7-1/16""
- Longitudinal travel: 19-11/16""
- Cross travel: 7-7/8""
- T-slots: 3 @ 2-1/16 centers, 15/32"" W
- End milling capacity: 3/4""
- Face milling capacity: 1-15/16""
- Footprint: 20-1/2"" x 11-1/2""
- Overall dimensions: 37-1/2"" W x 32"" D x 36"" H
- Approximate shipping weight: 574 lbs.
