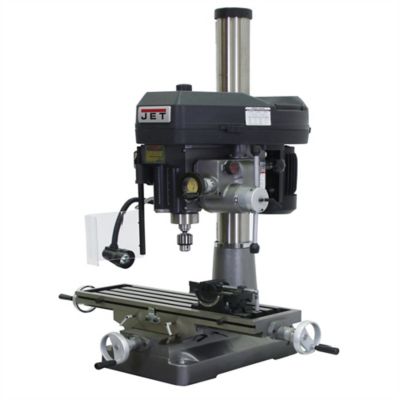

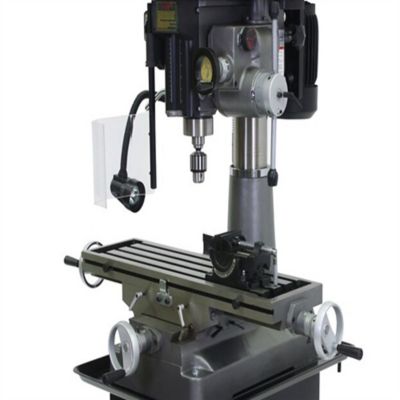

JET 15.875 in. Swing Variable Speed JMD-18PFN Mill/Drill with Power Downfeed, 115/230V, 1 Phase
Item # 1893914
Neighbor’s Club Members earn points with purchases.
JET 15.875 in. Swing Variable Speed JMD-18PFN Mill/Drill with Power Downfeed, 115/230V, 1 Phase
Item # 1893914
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
The JET 15.875 in. Swing Variable Speed JMD-18PFN Mill/Drill with Power Downfeed has a one-piece cast iron column for support and features large hand wheel knobs, a large worktable, and a highly versatile 360-degree head swivel. Innovative base-taper allows for easier cleanup, and the belt cover has a quick slide latch that allows for faster belt adjustment to change spindle speeds. The heavy-duty tapered roller bearings support the spindle resulting in greater tolerance and more accurate drilling depth. The JMD-18PFN also features a forward and reverse switch. Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD milling/drilling machine possess the advantages of space-saving versatility, affordability, and light machining capability.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Drilling capacity 1-1/4 inch Face mill capacity 3 inches, End mill capacity 3/4-inch Swing 15-7/8 inches Maximum distance, spindle to table 26 inches, Spindle taper R-8, Spindle travel, manual 5 inches, Spindle travel, auto 4-1/4 inches, Quill diameter 3 inches, Column diameter 4-1/2 inches, Number of spindle speeds 12, 150 to 3,000 RPM, Table travel, maximum 20-1/2 inches, Cross travel 6-1/2 inches, Table working surface 9-1/2 x 32-1/4 inches, T-slots 4, 5/8-inch,T-slot centers 1-13/16 inches, Base dimensions 15-3/4 x 23-3/4 inches, Motor 2 HP, 1 phase, 230-volt, Overall dimensions 47 x 40 x 51 inches. Weight 600 pounds
- 2 Year Warranty
