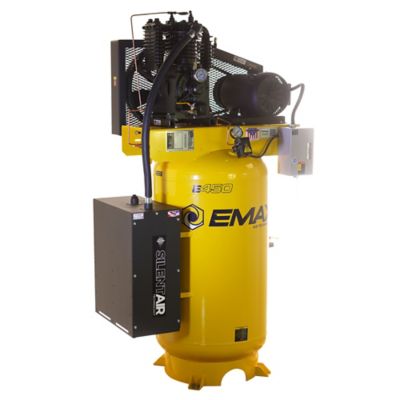

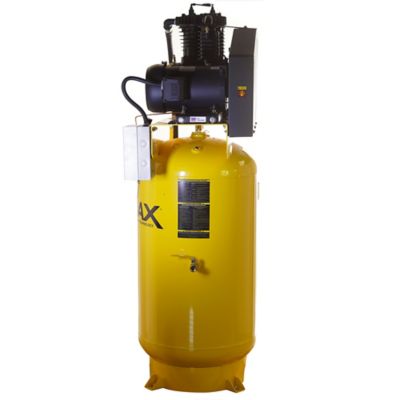

This EMAX 5 HP 80 gal. Industrial Air Compressor is a 2-stage, single-phase INLINE pressure lubricated Pump. EMAX Plus silent air compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This air compressor is paired with SOLID cast iron, patented pressure lubricated reciprocating pump. dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 19 CFM at 100 PSI, Maximum PSI of 175. The unit features industrial grade electric motors at 1750 maximum RPM and 24 running AMPS, Condor pressure switch, and powder coated ASME tank rated 200PSI, approved in all 50 states. The MADE IN THE USA SILENT AIR SILENCER system, dissipates air compressor intake noise by channeling the intake air through a series of baffle plates. Reducing decibel level by more than 35%. Also ETL,UL,CSA, ASME Certified, and backed by the best warranty in the industry! 1 Year Standard, 5 Year Extended. Eligible for Lifetime Warranty.

• MADE IN USA
• Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based
• Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
• Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
• Extended manual tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy draining
• SILENT AIR SILENCER system dissipates air compressor intake noise by channeling the intake air through a series of baffle plates
• Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
• Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operation
• All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
• Removable 100% cast iron cylinders do not warp from heat
• All cast iron cylinder heads are durable and dependable
• Disc valve design intake and exhaust valves can be serviced in minutes
• Top quality compression and oil rings ensure performance with low oil carry over
• Precision ground pistons are machined to tight tolerances that ensure low oil carry over
• Premium non-absorbent gaskets prevent oil seepage from the pump
• Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
• Built-in inter-cooler and after-coolers
• Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
• Large 1-3/8 in. output shaft on the motor
• Motor can be pulled 15% over full load for more break horsepower
• Dynamically balanced armature for low vibration levels
• Belt guard is made from 13-ga. steel and premium grade expanded metal
• Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
• All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
• 100% brass ASME safety valves are preset and sealed for correct settings
• Certifications: ETL, UL, CSA, ASME
• Maximum Pump RPM: 800, for extended life
• Running Amperage: 24
• 19CFM @ 100 PSI
• Heavy duty name brand Industrial low 1750 RPM open drip electrical motor
• MADE IN USA
• Pump oil capacity: 2.5 qt., reusable oil filter
• Solid Cast Iron Crankcase with oil sight glass
• Discovery Channel Innovations: https://www.youtube.com/watch?v=EuWepRdjD4w
