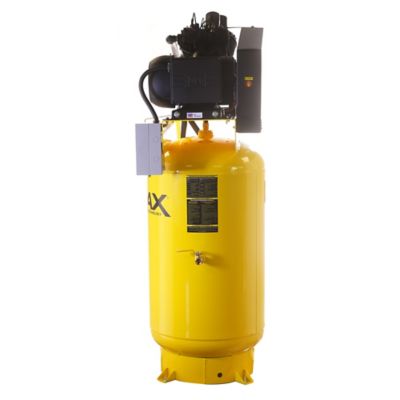

EMAX 10 HP 80 gal. 2-Stage Industrial V4 Pressure Lubricated Pump SILENT Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI

This EMAX 10 HP 80 gal. 2-Stage Industrial V4 Pressure Lubricated Pump SILENT Air Compressor is a 2-stage, single-phase SILENT Air V4 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours. This EMAX air compressor delivers 38 CFM at 100 PSI, with a top PSI of 175. The unit features an industrial electric motor at 1,750 maximum RPM and 40 running AMPS, magnetic starter, Automatic Tank drain, powder-coat ASME tank with a 200 PSI rating and maximum 800 RPM pump. This air compressor is paired with a solid cast iron 70,000 hour rated patented pressure lubricated reciprocating V4 pump. Top quality pressure switches with an adjustable screw for adjusting your pressure higher or lower. This industrial compressor includes our patented MADE IN THE USA, SILENT AIR system, which is 35% more quite. ETL, UL, CSA, ASME certified.

• MADE IN USA
• Patented Pressure Lubricated Pump
• Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
• Belt tension adjuster for fast, easy one-turn design reduces vibration and extends belt life
• Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
• Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining
• Certified: ASME, CSA, UL, ETL
• SILENT AIR system dissipates air compressor intake noise by channeling the intake air through a series of baffle plates
• Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
• Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth operation
• All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
• Re-usable oil filter, Heavy Duty Steel Belt guard
• Removable 100% cast iron cylinders do not warp from heat
• All cast iron cylinder heads are durable and dependable
• Disc valve design intake and exhaust valves can be serviced in minutes
• Top quality compression and oil rings ensure performance with low oil carry over
• Precision ground pistons are machined to tight tolerances that ensure low oil carry over
• Premium non-absorbent gaskets prevent oil seepage from the pump
• All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motor
• Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
• Built-in inner-cooler and after-coolers
• Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
• Name brand electric motor meets all UL and CSA requirements
• Large 1-3/8 in. output shaft on the motor
• Large starting and running capacitors
• Motor can be pulled 15% over full load for more break horsepower
• Dynamically balanced armature for low vibration levels
• Belt guard is made from 13-gauge steel and premium grade expanded metal
• Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
• All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
• 100% brass ASME safety valves are preset and sealed for correct settings
• 35% more quiet
• Eligible for EXTENDED lifetime pump warranty
• Heavy Duty Steel Belt guard
• Maximum Pump RPM: 800, for extended life
• Running Amperage: 40
• 38 x 42 x 72 in. (LxWxH) 810lbs
• Maximum PSI: 175
• Industrial Motor RPM: 1750
• Oil Capacity: 2.5 quarts
