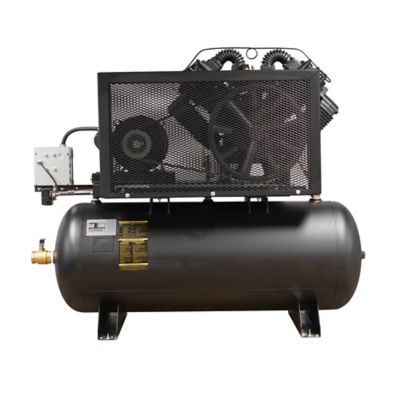

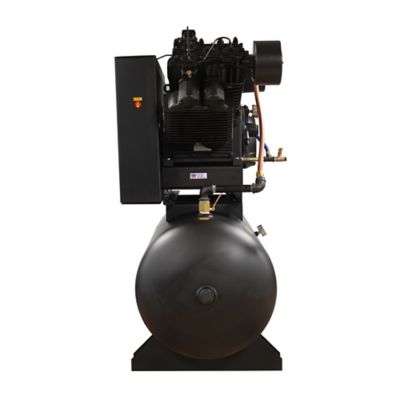

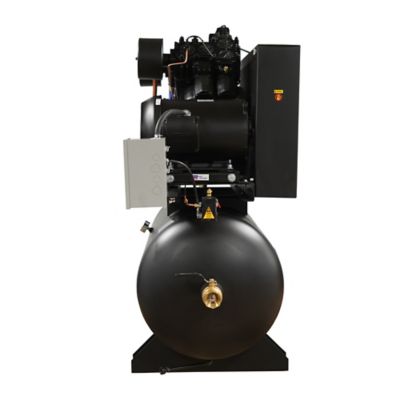

EMAX Industrial 20 hp V4 76CFM 3 Phase 230V 2-Stage 120 Gal. Horizontal Stationary Electric Air Compressor
Item # 149618799
Neighbor’s Club Members earn points with purchases.
Item # 149618799
Valid 5/11/2026 - 7/5/2026Apply now
This item is available online only
Delivery to
37027
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.

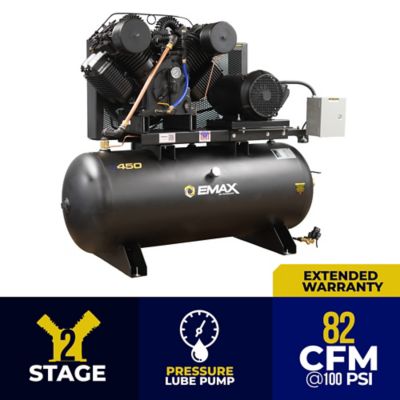

This EMAX Plus 20 HP 120 gal. 2 Stage 3-Phase 208/230V Industrial Electric Air Compressor is a V4 piston air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This EMAX air compressor delivers 82 SCFM at 100 PSI, top PSI of 175. Our unit features industrial electric motor, magnetic starter, automatic tank drain, powder coated ASME tank 200 PSI rating in all 50 states, along with our continuous run functionality all paired with all cast iron 70,000 Hr. rated pressure lubricated reciprocating pump. Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes. It's backed by the best warranty in the industry!1 Year Standard, 5 Year Extended, Lifetime Extended eligible warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- MADE IN USA
- Pressure Lubricated Pump
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
- Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
- All steel connecting rods with replaceable rod bearing inserts can be rebuilt
- Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat
- All cast iron cylinder heads are more durable and dependable
- Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
- Precision ground pistons machined to tight tolerances ensures low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from air compressor pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
- Built-in head unloaders
- Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank
- Large 1-3/8 in. output shaft
- Dynamically balanced armature for low vibration levels
- Maximum PSI: 175
- Pump RPM: 640
- Motor RPM: 1750
- Pump Oil Capacity: 4 quarts
- 3-Phase electric Motor: 208/230 set up
- Tank outlet size: 2 in.
- Continuous run kit, Industrial grade motor, Air stream technology
- Certifications: ASME, ETL
- Dimensions: 30 in. x 75 in. x 61 in. (LxWxH)
- Weight: 1636 lbs
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Gate valve oil drain provides quick, clean oil changes
- Re-usable oil filter, Oil Pressure Gauge
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 82 CFM |
| Air Outlet Size | 1 in. |
| Amperage | 331 Amp |
| Compressor Horsepower | 20 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Constant |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Decibel Rating | 78 dBA |
| Drain System | Automatic |
| Drive Type | Electric Motor |
| Features | Heavy duty steel belt guard, Raised pump mounting brackets for air flow, oil site glass, pump oil drain valve |
| Fuel Tank Capacity | 0 gal. |
| Maximum RPM | 640 CFM |
| Phase | Double |
| Nozzle Fitting Size | 2 in. |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 61 in. |
| Product Length | 74 in. |
| Product Weight | 950 lb. |
| Product Width | 30 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 4 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 5.3 minutes |
| Tank Style | Horizontal |
| Warranty | 1 year Standard, 5 year extended, lifetime pump extended eligible with maintenance kit |
| Manufacturer Part Number | EP20H120V3 |
