SCHULZ 5 hp 1 Phase 80 gal. 20CFM 175 PSI 230 V, 932.9339-0
$2868.99

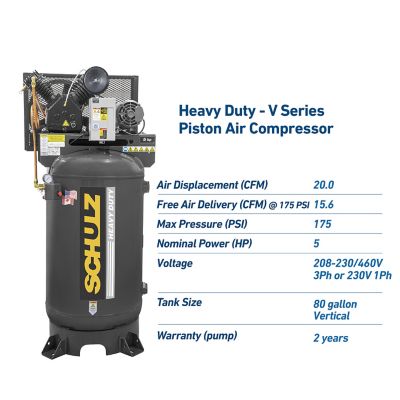

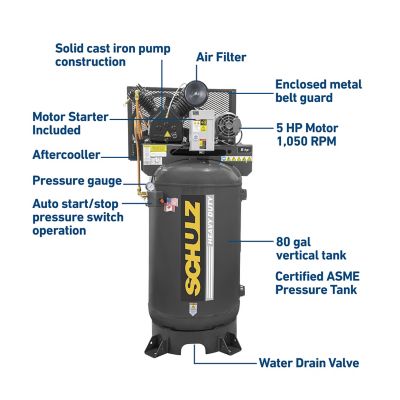

AIR COMPRESSOR - 5HP- SINGLE PHASE - 80 GALL VERTICAL - 20CFM - 175 PSI
- V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the products high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor. The ASME certified safety valve and air receiver and high efficiency motors make Heavy Duty V-Series compressors the best choice for your company.
| Brand | SCHULZ |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 20 CFM |
| Air Outlet Size | 34 in. |
| Amperage | 21 Amp |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 208V/230V |
| Drain System | Drain at the bottom of the tank |
| Drive Type | N/A |
| Features | V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design always been associated with quality |
| Maximum RPM | 1,050 rpm |
| Phase | Single |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Gray |
| Primary Material | Cast Iron |
| Product Height | 78 in. |
| Product Length | 32 in. |
| Product Weight | 480 lb. |
| Product Width | 53 in. |
| Pump Life | 5,000 hours with oil change proper maintenance and |
| Pump Material | Cast iron |
| Tank Style | Vertical |
| Warranty | 1 YEAR FOR THE PRODUCT AND 2 YEARS ON THE PUMP |
| Manufacturer Part Number | 932.9339-0 |
