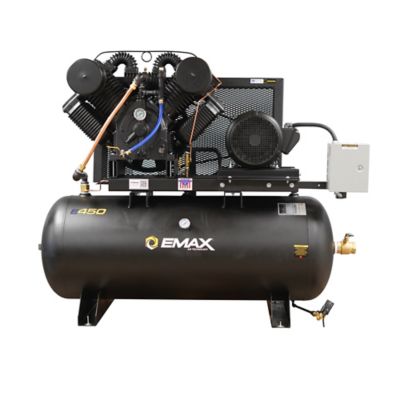

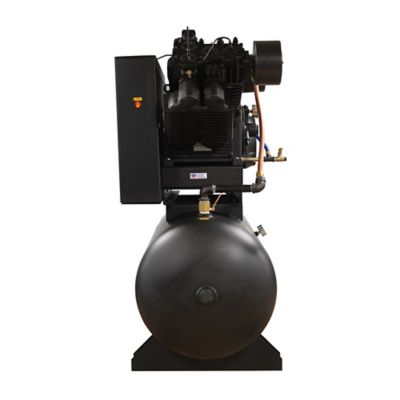

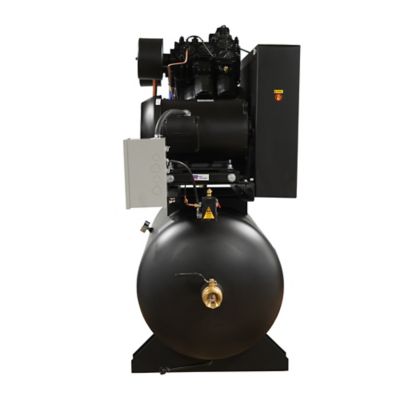

EMAX Industrial 25 hp V4 96CFM 3 Phase 230V 2-Stage 120 Gal. Horizontal Stationary Electric Air Compressor
Item # 149618899
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 149618899
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
The EMAX Plus 25 HP 120 Gal. 2-Stage 3-Phase 208/230V Industrial V4 Pressure Lubricated 96 CFM at 100 PSI Electric Air Compressor is a 2-stage piston air compressor designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This EMAX air compressor delivers big air with 89 CFM at 100 PSI, with a 175 PSI maximum. Our Industrial Plus air compressor features industrial-grade motors, magnetic starters, automatic timed tank drain and powder coated ASME tank with 200 PSI rating, along with continuous run functionality all paired with our all cast iron 70,000-hour-rated reciprocating pressure lubricated pump. It's backed by the best warranty in the industry! Made in the USA, the steel construction of this air compressor offers strength and long-lasting use.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Made in the USA
- Pressure lubricated 2-stage all cast iron pump
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy, one-turn design reduces vibration and extends belt life
- Auto tank drain 110V dual timer controlled; eliminates daily maintenance
- All steel connecting rods with replaceable rod bearing inserts can be rebuilt
- Removable 100% cast iron cylinders are more stable under heavy workloads and do not warp from heat
- All cast iron cylinder heads are more durable and dependable
- Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
- Top-quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
- Precision-ground pistons machined to tight tolerances ensure low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from air compressor pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
- Built-in head unloaders
- Inter-cooler allows air to be cooled between stages while the air cooled after-cooler provides a second cooling stage that cools the air before it goes into the tank
- Large 1-3/8 in. output shaft
- Dynamically balanced armature for low vibration levels
- 60A at 208/230V
- ETL certified
- Industrial-duty, 1,750 RPM (not 3,450 RPM) name brand motor UL and CSA
- Steel crankshaft with tapered roller bearings for solid pump support
- Backed by a 1-year standard, 5-year extended and lifetime extended eligible
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 89 CFM |
| Air Outlet Size | 1/2 in. |
| Amperage | 60 Amps |
| Compressor Horsepower | 25 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Constant |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Decibel Rating | 79 dBA |
| Drain System | Timed Automatic |
| Drive Type | Belt Driven |
| Features | Certifications: ETL, UL,CSA, ASME in all 50 states |
| Fuel Tank Capacity | 0 gal. |
| Hose Fitting Size | 2 in. |
| Maximum RPM | 740 RPM Pump |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 61 in. |
| Product Length | 30 in. |
| Product Weight | 1,636 lb. |
| Product Width | 74 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 4 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 7.3 min. |
| Tank Style | Horizontal |
| Warranty | 1 Year Standard Warranty, 5 Year Extended, Extended Lifetime Pump Warranty |
| Manufacturer Part Number | EP25H120V3 |
