EMAX 14 hp 20 gal. 2-Stage Industrial 3-in-1 Air Compressor, Generator and Welder, 175 PSI, KOHLER C.PRO Engine
Item # 149621099
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 149621099
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
This EMAX Electric start 14 HP 20G KOHLER Command PRO Gas Engine Industrial 3-in-1 Air Compressor, Generator and Welder is powered by a 14HP CH440 Commercial Command PRO series gas engine and a 5HP two-stage all cast iron pressure lubed inline pump. This unit will provide compressed air, three 120 and 240V power outlets and a DC 190A welder. The two-stage all cast iron pressure lubed pump delivers high 17 CFM output, reliability. The DUAL (2 x 20 gal.) ASME horizontal twin tanks provides a total of 40 gal. of air storage, quick disconnect, rubber isolator pads and liquid filled gauges, plus a heavy-duty steel belt guard to make this air compressor. It's backed by a 3-year KOHLER command pro gas engine warranty, 1-year standard, 5-year pump extended and lifetime pump extended optional warranty with maintenance kit, and ASME certified 20 gallon tank in all 50 states. The steel construction of this air compressor offers strength and long-lasting use.Commercial KOHLER 14HP CH440 Gas Engine with 3 year Commercial gas engine warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 14HP KOHLER Command PRO Commercial Series engine CH440
- 17 CFM at 100 PSI air compressor; 5,000W generator; 190A DC welder
- Three 120V outlets and 240V outlet make the air compressor suitable for any job site
- 2-stage solid cast iron pressure lubricated inline pump in the 3-in-1 air compressor delivers high CFM output and reliability
- ASME twin tanks provide 20 gal. of air storage and quick disconnect
- 1-year standard; 5-year extended; lifetime pump extended
- Heavy-duty steel belt guard makes the air compressor durable to withstand any task
- ASME certified
- Maximum 175 PSI at 17 CFM
- 3-in-1 air compressor
- 5,000W continuous run generator/6,000 surge watts

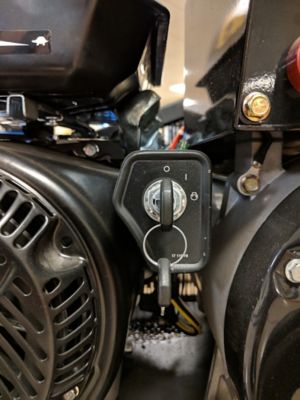

- Includes: SLA Battery for electric start
- Air power: 17 CFM at 100 PSI
- Stationary truck mounted
- Pressure lubricated two-stage pump delivers a continuous flow of oil to critical engine components
- Two 120V, 20A outlets; one 240V outlet
- 5 HP two-stage pump features industrial disc valves for extended life and easy maintenance and site oil glass
- Solid cast-iron pump provides maximum durability
- Liquid led gauges
- Rubber vibration isolator pads

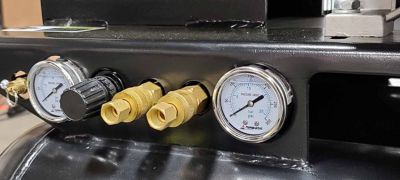

- Liquid filled built-in gauges on the regulator
- Heavy-duty steel belt guard
- DC (Direct Current) 190A stick welder with 50 leads
- DC jump starter
- 3-year warranty on Kohler Command Pro CH440 gas engine
- Includes a welding mask and 50 welding leads
- Dimensions: 45 in. L x 36.5 in. W x 25 in. H; 570 lb.
- 2-stage inline pump
- 1-year standard; 5-year extended; eligible extended and lifetime warranty plan on Pump
| Brand | EMAX |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 17 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 17A |
| Compressor Horsepower | 14 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Constant |
| Compressor Tank Capacity | 20 gal |
| Compressor Voltage | 120V/240V |
| Connection Type | NPT |
| Drain System | Manual |
| Drive Type | Belt Drive |
| Engine Brand | KOHLER Command Pro Gas |
| Features | Regulator Included |
| Fuel Tank Capacity | 1.5 gal. |
| Hose Fitting Size | 3/4 in. |
| Maximum RPM | 650 RPM |
| Phase | Single |
| Nozzle Fitting Size | 3/4 in. |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Gas |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 36 1/2 in. |
| Product Length | 45 in. |
| Product Weight | 570 lb. |
| Product Width | 25 ft. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 2.5 min. |
| Tank Style | Horizontal |
| Warranty | 1 Year Standard, 5 Year extended, Lifetime Pump Extended warranty eligible with maintenance kit |
| Manufacturer Part Number | EGES14020T |
Q: How thick a metal can you weld with this welder?
a year ago- A: Hello, Thank you for your question. Per the vendor, "The 190A stick welder is rated for welding up to 5/16 thick mild steel."a year agoHelpful?
Q: I need size (L W H)
2 years ago- A: 34″ x 42″x 38″2 years agoHelpful?
Q: Want to order can’t talk to anyone need info for availability in Tennessee
4 years ago- A: Item is available to purchase online only.4 years agoHelpful?
Q: If something were to break or malfunction, how hard is it to get parts for this product?
5 years ago- A: We stock replacement parts here in our Ohio warehouse. We can get you parts in as little as a day. Thanks!5 years agoHelpful?
Q: WHAT IS THE Cubic Feet per Minute (CFM) for this compressor?
5 years ago- A: 17 @ 100 PSI5 years agoHelpful?
Q&As
Q: How thick a metal can you weld with this welder?
a year ago- A: Hello, Thank you for your question. Per the vendor, "The 190A stick welder is rated for welding up to 5/16 thick mild steel."a year agoHelpful?
Q: I need size (L W H)
2 years ago- A: 34″ x 42″x 38″2 years agoHelpful?
Q: Want to order can’t talk to anyone need info for availability in Tennessee
4 years ago- A: Item is available to purchase online only.4 years agoHelpful?
Q: If something were to break or malfunction, how hard is it to get parts for this product?
5 years ago- A: We stock replacement parts here in our Ohio warehouse. We can get you parts in as little as a day. Thanks!5 years agoHelpful?
Q: WHAT IS THE Cubic Feet per Minute (CFM) for this compressor?
5 years ago- A: 17 @ 100 PSI5 years agoHelpful?
