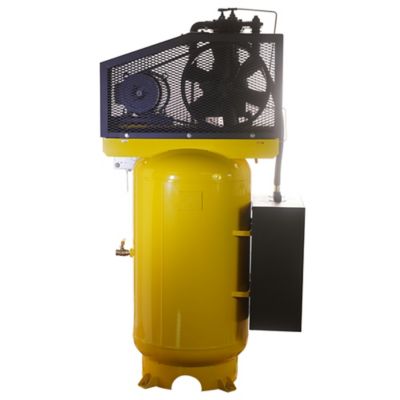

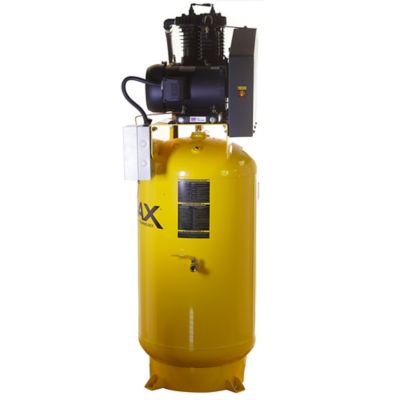

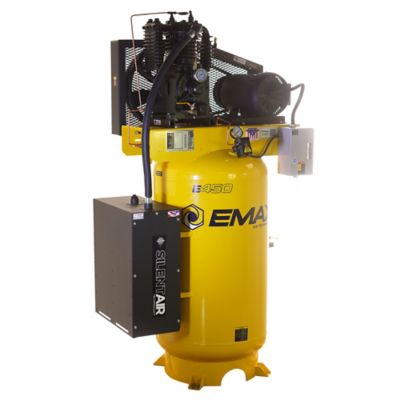

EMAX Silent Air Industrial 5 hp 19 CFM 3 Phase 230 V 2-Stage 80 gal. Vertical Electric Air Compressor
Item # 149619399
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 149619399
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
Industrial Power. Quiet Performance. Built for the Long Haul. The EMAX Industrial Plus 5 HP 2-Stage Inline Vertical 80-Gallon Piston Air Compressor is engineered for demanding commercial and industrial applications where performance, durability, and reliability matter. With proper maintenance, the EMAX Industrial Plus reciprocating pump is designed for up to 70,000 hours of service life. Delivering 19 CFM at 100 PSI with a maximum pressure of 175 PSI, this compressor provides dependable compressed air for a wide range of professional applications. An industrial-duty electric motor, magnetic starter, automatic tank drain, and ASME-rated powder-coated steel tank come standard for long-lasting performance and easy operation. At the heart of the compressor is EMAX's patented pressure-lubricated, all-cast-iron reciprocating pump, engineered to run cooler and provide exceptional durability. The continuous-run functionality allows the compressor to keep up with demanding applications without sacrificing performance. The EMAX Patented Silent Air System comes factory-installed and is designed to dramatically reduce compressor intake noise. The system channels incoming air through a series of internal baffle plates that dissipate intake noise while providing four levels of air filtration. The result is a quieter, cleaner-running compressor with more than 35% lower operating noise compared to conventional compressor intake systems.* From the heavy-duty cast-iron pump to the advanced Silent Air System, every component is designed with long-term performance and reliability in mind. The EMAX Industrial Plus delivers the power, durability, and features professionals expect from an industrial-grade air compressor all backed by one of the industry's strongest warranties. *Noise reduction is dependent on application, installation, and operating conditions.12 Month Parts + Labor, 5YR Parts Extended, 5YR Parts + Lifetime Pump Extended Options
- MADE IN USA
- Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

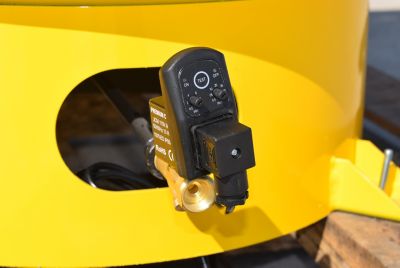

- Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
- Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
- Patented Silent Air Technology w/5 Stage Filtration
- All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
- Removable 100% cast iron cylinders do not warp from heat
- Disc valve design intake and exhaust valves can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over
- Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
- Built-in inter-cooler and after-coolers
- Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
- Name brand electric motor meets all UL and CSA requirements
- Large 1-3/8 in. output shaft on the motor
- Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
- All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
- 100% brass ASME safety valves are preset and sealed for correct settings
- ETL, ASME Certified
- Maximum Pump RPM: 800, for extended life
- Running Amperage:40
- 44SCFM: @ 40PSI, 41SCFM: @ 90PSI
- Motor RPM:1750
- 3- Phase 208/230 set up
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 19 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 13A 208,230V |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Drain System | Automatic tank drain |
| Drive Type | Electric Motor |
| Engine Brand | N/A |
| Features | Patented Silent air technology, 35% quieter, Industrial 1750 RPM motor, Solid cast iron Pump with max 800 RPM |
| Fuel Tank Capacity | 0 N/A |
| Hose Fitting Size | 3/4 in. |
| Maximum RPM | 1,750 Electric Motor RPM |
| Phase | Triple |
| Nozzle Fitting Size | 3/4 in. |
| Number Of Power Speeds | Variable |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 75 in. |
| Product Length | 31 in. |
| Product Weight | 576 lb. |
| Product Width | 33 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4.5 minutes |
| Tank Style | Vertical |
| Warranty | 1 Year Standard Warranty, 5 Year Extended, Extended Lifetime Pump Warranty with Maintenance kit |
| Manufacturer Part Number | ESP05V080I3 |
