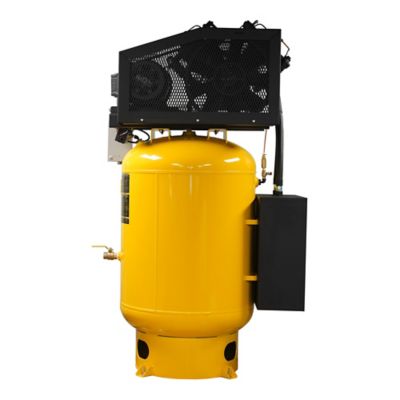

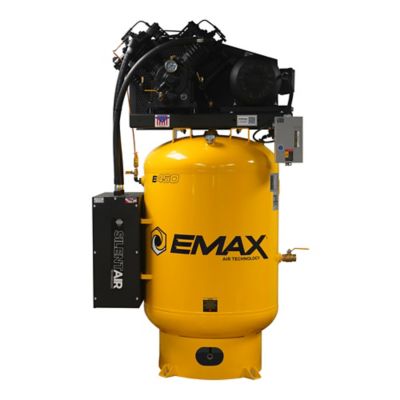

This EMAX 10 HP 120 gal. 3-Phase 208/230V Plus Silent Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This silent compressor delivers 38 CFM at 100 PSI, with a top PSI of 175. Our compressor features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank, and a 200 PSI rating, along with our continuous run functionality. All of this is paired with an all-cast iron 70,000 hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds four levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the best warranty in the industry!Patented Silent Air technology, Magnetic starter, Automatic Tank drain, Eligible for Lifetime Pump warranty with Maintenance kit
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- MADE IN USA
- Patented pressure lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
- Continuous mode functionality on the silent compressor is for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

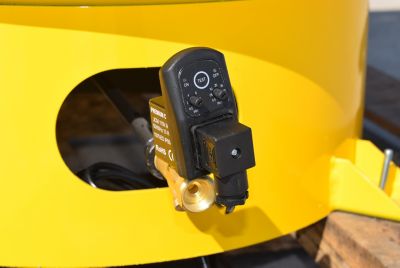

- Auto tank drain 110-volt dual is timer controlled and eliminates daily maintenance
- Silent air technology dissipates compressor intake noise by channeling the intake air through a series of baffle plates
- ETL Certified
- 208/230 Volt options
- 3-phase compressor delivers 38 SCFM at 100 PSI with a top PSI of 175
- Powder-coated ASME tank in the compressor is weather resistant
- Low-profile design adds 4 levels of air filtration
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 38 CFM |
| Air Outlet Size | 1 in. |
| Amperage | 171 Amp |
| Compressor Horsepower | 10 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Decibel Rating | 50% lower decibels |
| Drain System | Auto tank drain |
| Drive Type | Belt Drive |
| Engine Brand | Heavy duty Industrial Brand |
| Features | Patented Silent Air technology, Magnetic starter, Automatic Tank drain, Eligible for Lifetime Pump warranty with Maintenance kit, ASME, ETL, CSA, UL Certified |
| Fuel Tank Capacity | 0 gal. |
| Maximum RPM | 800 RPM |
| Phase | Double |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 78 in. |
| Product Length | 41 in. |
| Product Weight | 1020 lb. |
| Product Width | 43 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4.5 minutes |
| Tank Style | Vertical |
| Warranty | 1 Year Standard, 5 Year EXTENDED warranty available, Eligible for lifetime pump warranty with maintenance kit |
| Manufacturer Part Number | ESP10V120V3 |
