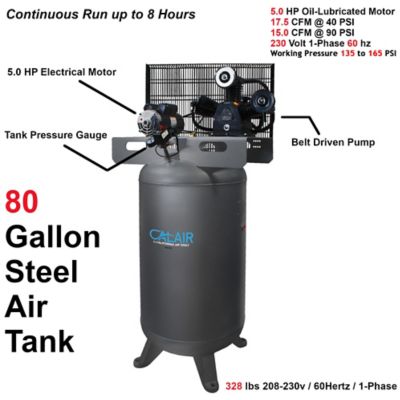

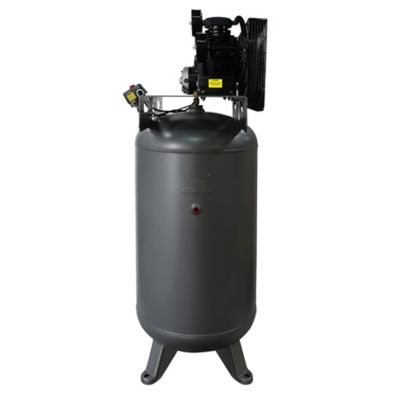

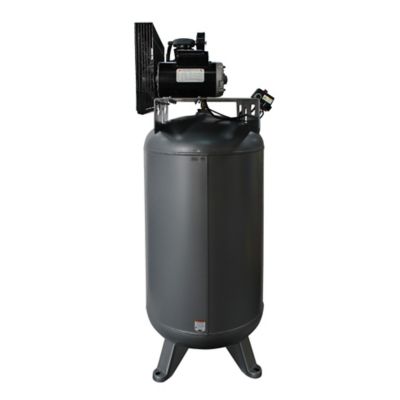

California Air Tools CALAIR 80050BD 80 gal. 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor
Item # 251831199
Neighbor’s Club Members earn points with purchases.
California Air Tools CALAIR 80050BD 80 gal. 5.0 hp One-Stage Oil-Lubricated Belt Driven Air Compressor
Item # 251831199
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
The CALAIR 80050BD Continuous Run 5.0 Hp Air Compressor is designed for CONTINUOUS RUNNING up to 8 hours at 90 PSI. The CALAIR 80050BD Air Compressor has a Pump System that is designed to have a life cycle before maintenance/service of 5,000 to 10,000 hours of usage. The large 80 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory Ideal for Air Brushing, Bolting, Brad Nailing, Cutting, Drilling, Grinding, Finish Nailing, Framing Nailing, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Trim & Impacting/Wrenching. Designed for people looking for reliable air flow in commerical and industrial environments. Backed by a 1 year limited warranty.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.

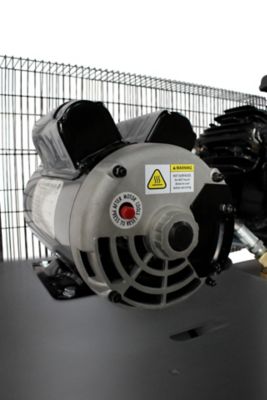

- 5.0 Hp Motor w/Reset Switch (1072 RPM)
- Belt-Driven Pump (Oil Type ISO 68 / LDAB68). 5000 to 10000 hour life. Single Stage Pump (3 cylinders)
- Pressure Gauge
- "1/2"" NPT Output Valve Port NOTE: 1/2"" Output Ball Valve & 125 PSI Pressure Regulator NOT included Air Ouput Ball Valve, 1/2"" NPT, available separately 5-125 PSI Pressure Regulator available separately
- Power On/Pressure Switch
- Motor Thermal Overload Protector (Trips @135C)
- Working Pressure - 135 - 165 PSI
- 208 Volt (200v-216v) to 230 Volt (220v-240v) / 60 Hertz / Single Phase
- 15.0 CFM @90 PSI, 17.5 CFM @40 PSI
- Continuous Run up to 8 hours (10 hours maximum)
- 24 Amp Draw
- Power Requirements: Dedicated 30 amp outlet
- Plug Type: NEMA L6-30P Receptacle: NEMA L6-30R
- Maximum Operating (ambient) Temperatures: 36 to 108F
- Time to fill tank from empty to full (155 PSI) - 7 min 50 seconds
- Recovery time from 135 PSI to 165 PSI - 1 min 19 seconds
- 80 Gallon ASME Certified Steel Air Tank
- "Manual Ball Drain Valve * 200 PSI Safety Relief Valve * L (35"") x W/D (28"") x H (68"") * 328 lbs (416 lbs on shipping pallet) * 90 Decibel Noise Level * Commercial Use: Refer to State & City Codes * 2 Year Limited Warranty on Pump; 1 Year Limited Warranty on all other components * Assembled in Mexico with global components"
- Limited Warranty 1 Year
