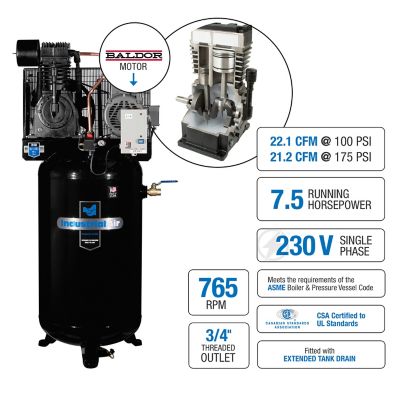

The Industrial Air 80 Gal. compressor provides great performance. The 7.5 HP electric motor features a pre-wired and mounted magnetic starter to help save time and money and the 2-stage compressor pump provides enough power to operate more than 1 device at a time. The pump features hardened disc valves, oversize taper roller bearings, a fully balanced cast iron flywheel and splash-type lubrication and the metal belt guard helps cool the pump.
Specification | Description |
---|---|
Brand | Industrial Air Contractor |
Country of Origin | Made in USA |
Airflow Volume | 22.1 CFM @ 100 PSI, 21.2 CFM @ 175 PSI |
Air Outlet Size | 3/4 in. |
Amperage | 31A |
Compressor Horsepower | 7.5 HP |
Compressor Maximum PSI | 175 PSI |
Compressor Tank Capacity | 80 gal |
Compressor Type | Vertical |
Compressor Voltage | 230V |
Decibel Rating | 86 dBA |
Drain System | Manual |
Drive Type | Belt |
Number Of Power Speeds | Single |
Power Type | Electric |
Primary Color | Black |
Product Height | 76 in. |
Product Length | 38 in. |
Product Weight | 623 lb. |
Product Width | 29 in. |
Pump Material | Cast iron |
Stage Type | Two-Stage |
Tank Fill Time | 5.23 minutes |
Tank Orientation | Vertical |
Manufacturer Part Number | IV7518075 |
