Mega 10 hp Horizontal 35 CFM, 175 PSI, 200 PSI Max, 3 Phase Power 208/230 V Two Stage

Shop all Mega

New Arrival

Item # 615224299

$4,709.99

Add this item to unlock free delivery!

Add a protection plan

Powersport plans are not available in CA & MD.

Neighbor’s Club Members earn points with purchases.

Shop all Mega

New Arrival

Mega 10 hp Horizontal 35 CFM, 175 PSI, 200 PSI Max, 3 Phase Power 208/230 V Two Stage

Item # 615224299

$4,709.99

$99/mo.^† for 48 months at 0% APR or earn $235 in Rewards⁺ on this purchase.
Valid 8/24/2026 - 9/7/2026

Add this item to unlock free delivery!

This item is available online only

Delivery to

For delivery, this item requires a Big & Bulky handling fee.Learn more

Add a protection plan

Powersport plans are not available in CA & MD.

Neighbor’s Club Members earn points with purchases.

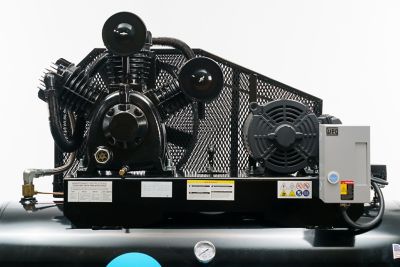

The MEGA Compressor 120-gal., 10 HP, two-stage air compressor is ideal for operating multiple air tools and industrial work. This air compressor features a high air flow of 35 CFM at 90 PSI and a maximum 200 PSI to power a wide variety of air tools, and a 3-phase magnetic starter. The heavy-duty, cast iron pump is splash lubricated for a long lifespan. The 120-gallon horizontal tank provides convenient access for routine maintenance.

Cast iron, W cylinder, oil lubricated pump
Heavy duty induction motor for maximum performance and efficiency
120 gallon Horizontal Tank
230V/460V Three Phase Motor
Shipped with 100% full synthetic air compressor oil for optimum performance and long life
Build In USA

Brand	Mega
Country of Origin	Made in USA
Airflow Volume	35 CFM
Air Outlet Size	0.75 in.
Amperage	11.9 A
Compressor Horsepower	10 HP
Lubrication Type	Oil
Compressor Maximum PSI	200 PSI
Compressor Operation	Automatic start/stop
Compressor Tank Capacity	120 gal
Compressor Voltage	208V/230V
Connection Type	FNPT
Drain System	Manual Drain
Drive Type	Belt Drive
Features	10 HP induction motor with magnetic starter, 1740 RPM, 37 CFM @ 90 PSI, 200 PSI max, cast iron splash-lubricated pump, 120-gallon horizontal ASME tank, enclosed belt guard, stainless steel reed valves and oil sight glass.
Phase	Triple
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Black
Primary Material	Cast Iron
Product Height	60 in.
Product Length	75 in.
Product Weight	980 lb.
Product Width	36 in.
Pump Material	Cast iron
Stage Type	Two-Stage
Tank Style	Horizontal
Warranty	1
Manufacturer Part Number	MP-10120H3-U
