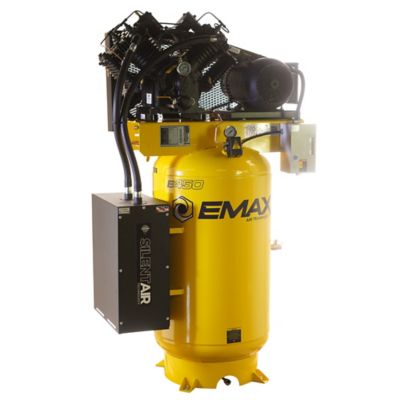

EMAX Silent Air Industrial 7.5HP 31CFM 3Phase 230V 2-Stage 80Gal. Vertical Electric Air Compressor
Item # 149619599
Neighbor’s Club Members earn points with purchases.
Item # 149619599
Valid 5/11/2026 - 7/5/2026Apply now
This item is available online only
Delivery to
37027
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.
This EMAX 7.5 HP 80 gal. 3 Phase 208/230V Industrial V4 Pressure lubricated Pump Plus Patented SILENT air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This air compressor delivers 31 CFM at 100 PSI, with a top PSI of 175. Our silent air compressor features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank with a 200 PSI rating, along with our continuous run functionality. All of this is paired with an all cast iron 70,000 hour rated patented pressure lubricated reciprocating pump. This air compressor features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds four levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the best warranty in the industry!1 Year Standard, 5 Year Extended, Eligible Lifetime Pump with maintenance kit
- MADE IN USA
- Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
- Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

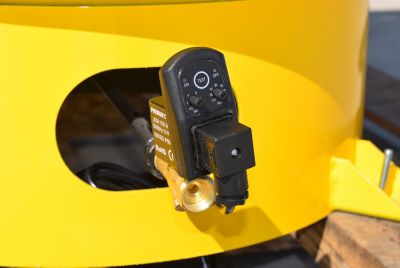

- Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
- Extended tank water drain pipe plumbed out the front of the silent air compressor with 1/4 in. ball valve handle for easy tank draining
- CERTIFICATIONS: ETL, UL, ASME, CSA
- Patented SILENT air system dissipates air compressor intake noise by channeling the intake air through a series of baffle plates
- Solid cast iron crankcase ensures stable crankshaft alignment and can handle a heavy work load
- Precision balanced solid cast iron crankshaft with Timken-Style stainless steel roller bearings on the front and rear for a smooth and efficient operation
- All steel connecting rods with replaceable rod bearing inserts allows rods to be rebuilt
- Re-usable oil filter
- Removable 100% cast iron cylinders do not warp from heat
- All cast iron cylinder heads are durable and dependable
- Disc valve design intake and exhaust valves can be serviced in minutes
- Top quality compression and oil rings ensure performance with low oil carry over
- Precision ground pistons are machined to tight tolerances that ensure low oil carry over
- Premium non-absorbent gaskets prevent oil seepage from the pump
- All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke, which results in fewer loads on the electric motor
- Built-in head unloaders are built into the intake valve assembly on the air compressor head, reducing internal pump heat
- Built-in inter-cooler and after-coolers
- Raised pump platform design lifts the pump 2 in. off the mounting base plate, allowing for 100% constant flow of cool air from the flywheel fan to circulate
- Name brand electric motor meets all UL and CSA requirements
- Large 1-3/8 in. output shaft on the motor
- Large starting and running capacitors
- Motor can be pulled 15% over full load for more break horsepower
- Dynamically balanced armature for low vibration levels
- Belt guard is made from 13-gauge steel and premium grade expanded metal
- Top quality pressure switches with an adjustable screw which allows you to adjust your pressure higher or lower
- All check valves on the air compressor are brass with a Teflon seating to reduce tank noise
- 100% brass ASME safety valves are preset and sealed for correct settings
- Pump oil capacity: 2.5 Quarts
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 31 CFM |
| Air Outlet Size | 3/4 in. |
| Amperage | 18A 208,230V |
| Compressor Horsepower | 7.5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | NPT |
| Drain System | Electric Auto drain 110V dual timer controlled |
| Drive Type | Belt Drive |
| Features | Magnetic starter, Belt Tension Adjuster, Automatic Tank Drain, Air stream Technology, Continuous Run Kit, Industrial Grade Motor, Patented Silent Air System noise suppression system |
| Fuel Tank Capacity | 0 gal. |
| Maximum RPM | 640 Pump RPM |
| Phase | Triple |
| Number Of Power Speeds | Variable |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 72 in. |
| Product Length | 38 in. |
| Product Weight | 743 lb. |
| Product Width | 42 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4 minutes |
| Tank Style | Vertical |
| Warranty | 1 Year Standard Warranty, 5 Year Extended, Extended Lifetime Pump Warranty |
| Manufacturer Part Number | ESP07V080V3 |
