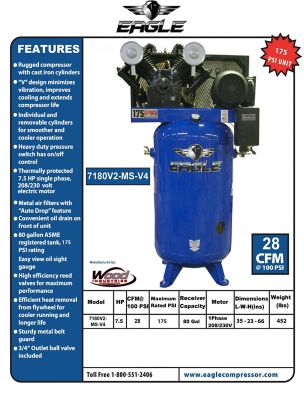

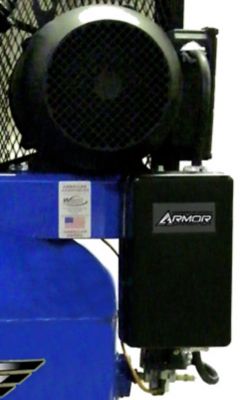

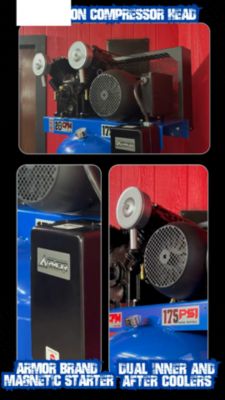

The Eagle Upright 2-Stage Stationary Air Compressor is a reliable unit with an 80 gal. tank. The upright air compressor features a 7.5 HP single-phase electric motor that is thermally protected for powerful performance.
Specification | Description |
---|---|
Brand | Eagle |
Country of Origin | Made in USA |
Air Delivery SCFM At 90 PSI | 32 CFM |
Airflow Volume | 28 CFM @ 100 PSI |
Air Outlet Size | 3/4 in. |
Compressor Horsepower | 7.5 HP |
Compressor Maximum PSI | 175 PSI |
Compressor Tank Capacity | 80 gal |
Compressor Type | Vertical |
Compressor Voltage | 208V/230V |
Drain System | Manual |
Drive Type | Belt |
Features | Thermally protected 7.5hp single phase electric motor, ASME registered tank, sturdy metal belt guard, 3/4 in. outlet ball valve included |
Number Of Power Speeds | Single |
Number Of Wheels | 0 |
Power Type | Electric |
Primary Color | Blue |
Primary Material | Steel |
Product Height | 66 in. |
Product Length | 23 in. |
Product Weight | 452 lb. |
Product Width | 35 in. |
Pump Material | Cast iron |
Stage Type | Two-Stage |
Tank Orientation | Vertical |
Warranty | 1 Year |
Manufacturer Part Number | 7180V2-MS-V4 |
