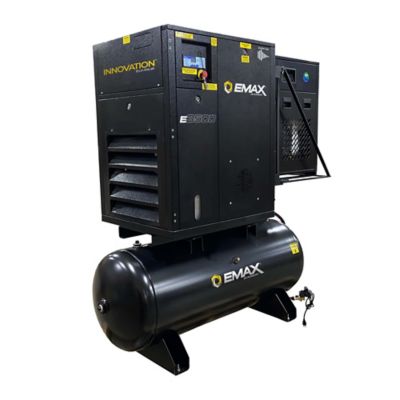

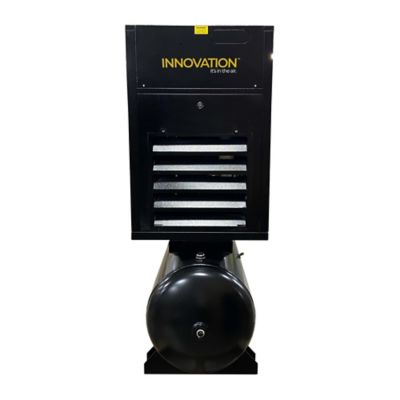

EMAX 10HP 1PH 45CFM@100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor-ERIK100001
Item # 234326999
Neighbor’s Club Members earn points with purchases.
Item # 234326999
This item is available online only
Out of stock delivering to
37027
This item will be sent to the store for Pickup and will require a Big & Bulky handling fee.Learn more
Get it by Mon, Aug 31 if ordered within the next 7 hours and 15 minutes
Neighbor’s Club Members earn points with purchases.

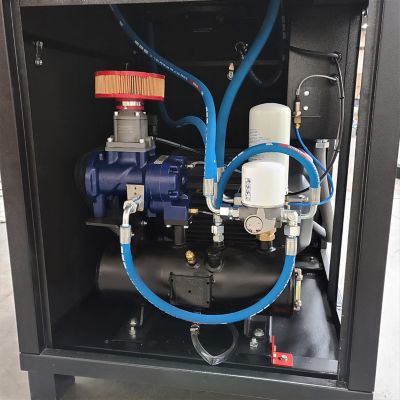

EMAX Compressors 10HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a receiving tank with a patented swingarm mounted air dryer for small foot print and easy maintenance. 1 Year Standard, extended 5 Year with maintenance kit
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Cabinet: Made in Italy
- Air end pump life expectancy: 60,000 hours
- 39.9 CFM @ 100 PSI, 30.01 CFM @ 145 PSI
- Dimensions: 82" x 45" x 80" (LxWxH)
- Weight: 467 lbs
- Start Type: DOL
- Drive type: Belt Drive
- Controller Type: Logik 9
- Inlet valve type: Poppet Valve
- Motor RPM: 1750
- Industrial electric Motor: 10HP
- Outlet connection: 3/4 in. NPT
- Drain type: Ball valve
- Dryer: 58CFM 115volt refrigerated air dryer, Environmentally friendly 134A refrigerant, Built in coalescing filter, Dew point: 37-50, pipe size: 1-1/2", Max rated inlet temp:140
- Dryer weight: 120 lbs
- Dryer mount: Swingarm Hinge-Easy Access
- Dryer Pipe size: 3/4"
- Dryer Dew point: 37-50
- Dryer Max Ambient Temp: 122
| Brand | EMAX |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 145 PSI |
| Air Outlet Size | 0.75 in. |
| Amperage | 38.3 FLA AMP |
| Compressor Horsepower | 10 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 145 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 230V |
| Connection Type | NPT |
| Drain System | Auto Tank drain |
| Drive Type | Belt |
| Engine Brand | Industrial USA |
| Features | Logik 9 controller, Low 1750RPM industrial motor, 60,000 pump lifetime hours |
| Maximum RPM | Motor 1,750 rpm |
| Phase | Single |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 104 in. |
| Product Length | 106 in. |
| Product Weight | 900 lb. |
| Product Width | 45 in. |
| Pump Life | 60,000 hr. |
| Pump Material | Steel |
| Stage Type | N/A |
| Tank Style | Horizontal |
| Warranty | 1 Year Standard, extended 5 Year with maintenance kit |
| Manufacturer Part Number | ERIK010001 |
