ECO-FLO EFSUB15-123 4 in. Submersible Deep Well Pump

SKU # 116837899
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

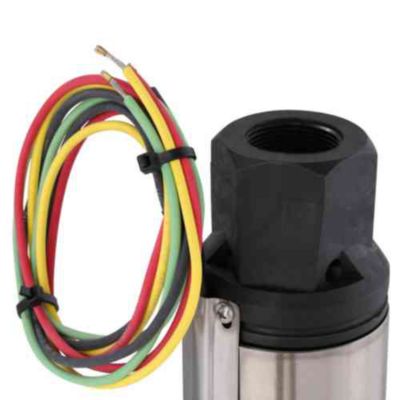

The ECO-FLO EFSUB15-123 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency.

  • Stainless steel pump shaft is precision-ground for exact bearing fit and straightness
  • Precision-molded impellers and diffusers
  • Stainless steel pump housing for maximum protection against corrosion
  • Stainless steel splined shaft
  • Hermetically sealed windings
  • Self-healing resin system
  • Integrated check valve
  • Kingsbury-type thrust bearing
  • Pressure equalizing diaphragm
  • Removable water-bloc lead connector
  • NEMA mounting dimensions

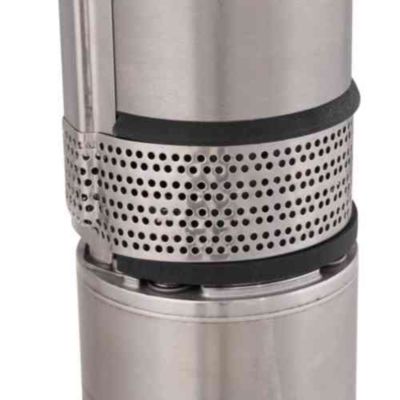

  • Stainless steel inlet screen
  • 2 year limited warranty

Specification Description
Brand: ECO-FLO Products Inc.
Hertz: 60 Hz
Material: Stainless Steel
Product Type: Well Pumps
Discharge Size: 1-1/4 in.
Engine Specifications: 1-1/2 HP
Thread: 1-1/4 in. FNPT
Voltage: 230 V
Warranty: 2 Year
Watts: 1,102 W
Power Type: Electric
Manufacturer Part Number EFSUB15-123

Is this a 2 wire

Asked by: Will82
Will82 Thanks for your question. The EFSUB15-123 is a 3 wire pump, which requires a control box to run. If you have any questions please call customer service at 877-326-3561 Thanks Customer Service
Answered by: ECO-FLO Products
Date published: 2018-06-22

how deep is this pump rated to push water , I have a three hundred foot well

Asked by: d duck
The EFSUB15-123 will produce water at a rate of roughly 1.8 Gallons Per Minute when pumping from a depth of 300 Feet.
Answered by: ECO-FLO Products
Date published: 2017-09-25

I would like to know what is the pumping rate into a storage tank from 400' I have a water system with a 2700 gal main tank that my well pump goes into well is 450 ' with pump set at.400' water level is somewhere between 300 350 ft

Asked by: Andrew66
Andrew66 Thanks for your question. I would not recommend this pump at a water level of 300 ft. This would be operating at the limits for this pump and only pump 1.8 gpm. Our pumps will only pump at a depth of 250' and produce 10 gpm Thanks Customer Service 877-326-3561
Answered by: ECO-FLO Products
Date published: 2018-06-22
