CountyLine 3/4 HP 230V Electric 2-Wire Series 4 in. Submersible Pump, 14.8 GPM
$629.99
CountyLine 3/4 HP 230V Electric 2-Wire Series 4 in. Submersible Pump, 14.8 GPM
CountyLine 3/4 HP 230V Electric 2-Wire Series 4 in. Submersible Pump, 14.8 GPM
Item # 102814899
$629.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
CountyLine 3/4 HP 230V Electric 2-Wire Series 4 in. Submersible Pump, 14.8 GPM
Item # 102814899
$629.99
or
or
$48/mo.† suggested payments with 12 Months Financing or earn $28 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The CountyLine 2-Wire 3/4 HP 10 GPM Series 4 in. Submersible Pump is ideal for residential water systems and agricultural applications to 200 ft. depth to water or less. Made of heavy duty steel and featuring a proven floating stack impeller design, this sand resistance pump is built for high performance. The pump is rated for 230V and is backed by a 3 year limited warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 3/4 HP
- Maximum depth to water: 200 ft.
- 230V
- 4 in. x 4-3/4 in. x 34-1/4 in.
- 32 lb.
- Stainless steel body
- CSA approved
- Tractor Supply is proud to introduce CountyLine, our brand of high quality, competitively priced agricultural products; with a full line of 3-point equipment for your tractor, as well an assortment of sub-compact pieces
- 3 year limited warranty
| Brand | CountyLine |
|---|---|
| Country of Origin | Made in USA |
| Amperage | 6 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | Other |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1.25 in. |
| Discharge Rate at 0 ft. | 14.8 GPM |
| Discharge Rate at 25 ft. | 14.8 GPM |
| Discharge Rate at 50 ft. | 14 GPM |
| Features | N/A |
| Head Pressure | 87 PSI |
| Horsepower | 3/4 HP |
| Impeller Material | Engineered thermoplastic |
| Inlet Connection | None |
| Inlet Diameter | 0 N/A |
| Maximum Flow Rate | 14.8 GPM |
| Maximum Head Lift | 0 N/A |
| Maximum Operating Depth | 200 ft. |
| Maximum Operating Temperature | 86 degrees F |
| Minimum Operating Temperature | 32 degrees F |
| Power Type | Electric |
| Product Height | 35 in. |
| Product Length | 5 in. |
| Product Weight | 32 lb. |
| Product Width | 5 in. |
| Motor Type | Submersible |
| Voltage | 230V |
| Warranty | 3 Year Limited Warranty |
| Manufacturer Part Number | CLA202 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 37 Questions
Newest questions
Q: I plan on using thisin a 36in dia. Well thats 45 ft deep. Its @30 ft to the surface of the water. My question is what kind of torque aresster do i use? And is schedule 40 pvc pipe ok? If it is can i use glued on fitting or the metal threaded connector
22 days ago1 Answer
- A: For a 36-inch diameter well that is 45 feet deep using a CountyLine 3/4 HP Submersible Pump, you must use a standard 4-inch to 6-inch rubber torque arrestor expanded to its maximum setting, Schedule 80 PVC (not Schedule 40), and threaded connections (never glued fittings).Because your well casing is exceptionally wide (36 inches) compared to a standard 4-to-6-inch well casing, a torque arrestor will not actually reach the well walls to stabilize the pump. However, you must still guide and protect your equipment properly under these specific conditions. If you need further assistance please contact us at 800-535-4950 so we can better assist.20 days agoHelpful?
Q: Does this pump have a check valve?
a month ago1 Answer
- A: Yes, the CountyLine 3/4 HP 230V 2-Wire Submersible Pump features a built-in check valve. This internal, spring-loaded valve helps maintain system pressure and prevents backflow, which protects the motor and pump components. It is recommended to also install an external check valve above ground near the pressure tank.a month agoHelpful?
Q: What does the 3 year limited warranty cover
3 months ago1 Answer
- A: Contact CountyLine Customer Service at 800-535-4950. for warranty.2 months agoHelpful?
Q: How many stages does pump have?
3 months ago1 Answer
- A: Contact Customer Service at 800-535-4950 to better assist you.3 months agoHelpful?
Q: Will this pump work with 208 volts?
6 months ago1 Answer
- A: The pump is rated for 230V6 months agoHelpful?
Q: What gauge 3 wire with ground do they recommend?
6 months ago1 Answer
- A: Below are common wire sizes for copper submersible pump cable at 240 volts ¾ HP pump • 0–150 ft: 12 AWG • 150–300 ft: 10 AWG • 300–500 ft: 8 AWG • These values assume 240V and typical pump amp-draw curves. • Always use UF-B, THHN in conduit, or submersible pump cable specifically rated for wet environments. • If your pump is 120V, the required wire will be larger (lower gauge number). • Local electrical codes may require upsizing based on derating factors.6 months agoHelpful?
Q: Can this pump freeze
a year ago1 Answer
- A: No, a submersible well pump typically will not freeze because it is located deep within the well where the water temperature remains above freezing, making it highly unlikely to encounter freezing conditionsa year agoHelpful?
Q: What's the 3 year warranty cover?
2 years ago1 Answer
- A: Contact Pentair at 262-728-5551 for support.2 years agoHelpful?
Q: Will this fit into a 4”sch80 casing or 4” sch 40
3 years ago1 Answer
- A: Please contact Pentair Customer Service at 262-728-55513 years agoHelpful?
Q: Will the pump shutoff if the well runs dry?
4 years ago1 Answer
- A: Please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST), so we can better assist you.4 years agoHelpful?
1 - 10 of 37 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 37 Questions
Newest questions
Q: I plan on using thisin a 36in dia. Well thats 45 ft deep. Its @30 ft to the surface of the water. My question is what kind of torque aresster do i use? And is schedule 40 pvc pipe ok? If it is can i use glued on fitting or the metal threaded connector
22 days ago1 Answer
- A: For a 36-inch diameter well that is 45 feet deep using a CountyLine 3/4 HP Submersible Pump, you must use a standard 4-inch to 6-inch rubber torque arrestor expanded to its maximum setting, Schedule 80 PVC (not Schedule 40), and threaded connections (never glued fittings).Because your well casing is exceptionally wide (36 inches) compared to a standard 4-to-6-inch well casing, a torque arrestor will not actually reach the well walls to stabilize the pump. However, you must still guide and protect your equipment properly under these specific conditions. If you need further assistance please contact us at 800-535-4950 so we can better assist.20 days agoHelpful?
Q: Does this pump have a check valve?
a month ago1 Answer
- A: Yes, the CountyLine 3/4 HP 230V 2-Wire Submersible Pump features a built-in check valve. This internal, spring-loaded valve helps maintain system pressure and prevents backflow, which protects the motor and pump components. It is recommended to also install an external check valve above ground near the pressure tank.a month agoHelpful?
Q: What does the 3 year limited warranty cover
3 months ago1 Answer
- A: Contact CountyLine Customer Service at 800-535-4950. for warranty.2 months agoHelpful?
Q: How many stages does pump have?
3 months ago1 Answer
- A: Contact Customer Service at 800-535-4950 to better assist you.3 months agoHelpful?
Q: Will this pump work with 208 volts?
6 months ago1 Answer
- A: The pump is rated for 230V6 months agoHelpful?
Q: What gauge 3 wire with ground do they recommend?
6 months ago1 Answer
- A: Below are common wire sizes for copper submersible pump cable at 240 volts ¾ HP pump • 0–150 ft: 12 AWG • 150–300 ft: 10 AWG • 300–500 ft: 8 AWG • These values assume 240V and typical pump amp-draw curves. • Always use UF-B, THHN in conduit, or submersible pump cable specifically rated for wet environments. • If your pump is 120V, the required wire will be larger (lower gauge number). • Local electrical codes may require upsizing based on derating factors.6 months agoHelpful?
Q: Can this pump freeze
a year ago1 Answer
- A: No, a submersible well pump typically will not freeze because it is located deep within the well where the water temperature remains above freezing, making it highly unlikely to encounter freezing conditionsa year agoHelpful?
Q: What's the 3 year warranty cover?
2 years ago1 Answer
- A: Contact Pentair at 262-728-5551 for support.2 years agoHelpful?
Q: Will this fit into a 4”sch80 casing or 4” sch 40
3 years ago1 Answer
- A: Please contact Pentair Customer Service at 262-728-55513 years agoHelpful?
Q: Will the pump shutoff if the well runs dry?
4 years ago1 Answer
- A: Please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST), so we can better assist you.4 years agoHelpful?
1 - 10 of 37 Questions
Similar Items
-
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
Items You May Like
-
-
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
-
Top Rated
Customers Also Bought
-
Top Rated
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Subscription Eligible
-
Top Rated
-
Top Rated
Reviews
- purchase
- price
- installation
- satisfaction
- product availability
- warranty
- quality
- packaging
1 to 4 of 198 Reviews .
1 – 4 of 198 Reviews
Most Recent
mississippi
Review 1
5 out of 5 stars.
good pump
a month ago
good product at a great price. I did have some issues with the first one i purchased, but the return exchange went smooth and the new one worked flawlessly.
Yes, I recommend this product.
August, WV
Review 1
4 out of 5 stars.
Excellent product
3 months ago
Very simple and easy install. Works as it should.
SweepstakesYes
Yes, I recommend this product.
Middletown NY
Review 1
5 out of 5 stars.
Thanks TSC
a year ago

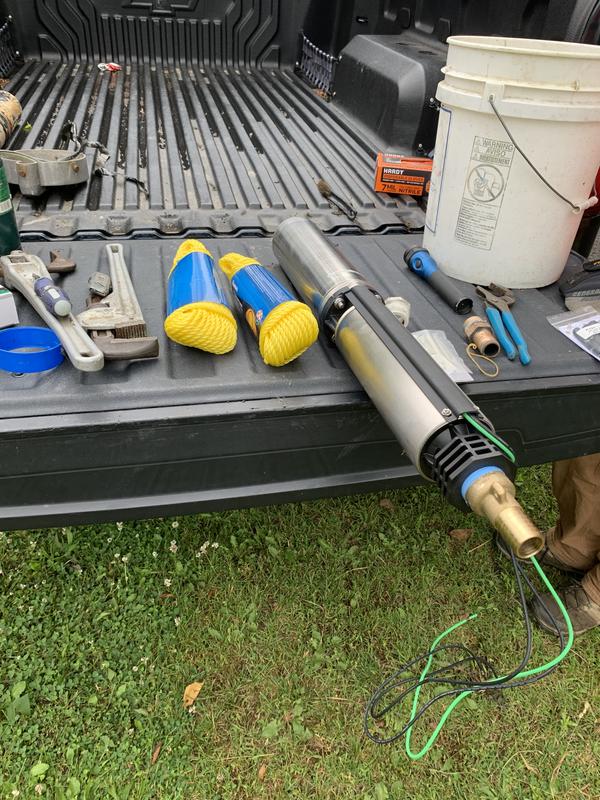

I’m not a plumber, and replaced with my son helping pull 250 ft of line , by ourselves
SweepstakesYes
Yes, I recommend this product.
Leominster, Massachusetts
Review 1
5 out of 5 stars.
Good quality part for a good price
2 years ago
this pump definately works as intended.
The store employees were very helpful in helping me find and select the proper pump.
This pump is made by Pentair which has been very good for my applications in the past.
I'm looking to get many years of good service.
SweepstakesYes
Yes, I recommend this product.
