ECO-FLO Products Inc. 1 hp 230 V Electric Submersible Deep Well Pump, 20 gal./min., 4 in., 3-Wire
$599.99
ECO-FLO Products Inc. 1 hp 230 V Electric Submersible Deep Well Pump, 20 gal./min., 4 in., 3-Wire
ECO-FLO Products Inc. 1 hp 230 V Electric Submersible Deep Well Pump, 20 gal./min., 4 in., 3-Wire
Item # 116835399
$599.99
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.
ECO-FLO Products Inc. 1 hp 230 V Electric Submersible Deep Well Pump, 20 gal./min., 4 in., 3-Wire
Item # 116835399
$599.99
or
or
$50/mo.† suggested payments with 12 Months Financing or earn $29 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA.
Neighbor’s Club Members earn points with purchases.

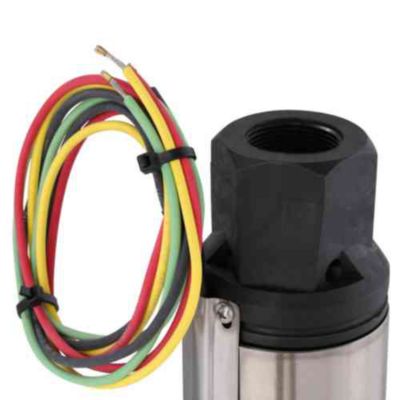

The ECO-FLO Products Inc. 1 HP 230V Electric Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. The submersible well pump offers a self-healing resin system and hermetically sealed windings for reliable performance. The stainless-steel pump housing offers maximum protection against corrosion for lasting durability. A precision-ground stainless-steel pump shaft provides an exact bearing fit and improved straightness for dependable operation. Precision-molded impellers and diffusers are designed to provide consistent pumping performance. The stainless-steel splined shaft adds strength and durability to the pump assembly. A pressure-equalizing diaphragm helps maintain proper internal pressure during operation. Built with durable components and thoughtful design features, this ECO-FLO submersible deep well pump is a reliable choice for residential water systems.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Stainless steel deep well pump shaft is precision-ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless steel pump housing for maximum protection against corrosion
- Stainless steel splined shaft
- Submersible well pump offers hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Removable water-bloc lead connector
- Powered by a high-performing 1 HP 230V electric motor
- Moves water up to 20 GPM
- Backed by a 3-year warranty
- 4 in. diameter well pump with a 3-wire control system
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 9.3 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | Poly, Galvanized, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 22.7 gpm |
| Discharge Rate at 25 ft. | 20 gpm |
| Discharge Rate at 50 ft. | 20 gpm |
| Features | 1 1/4 in. FNPT discharge connection includes built-in check valve. Stainless steel pump shaft is precision ground for exact bearing fit and straightness. Precision molded impellers and diffusers. Kingsbury type thrust bearing. |
| Head Pressure | 8.66 PSI |
| Horsepower | 1 hp |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 20 GPM |
| Maximum Head Lift | 125 ft. |
| Maximum Operating Depth | 125 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 32 deg. F |
| Power Cord Length | 0 ft. |
| Power Type | Electric |
| Product Height | 26 in. |
| Product Length | 30 in. |
| Product Weight | 31 lb. |
| Product Width | 4 in. |
| Motor Type | CSIR motors |
| Voltage | 230 v |
| Warranty | 3 Year |
| Manufacturer Part Number | EFSUB10-253 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 13 Questions
Newest questions
Q: what gauge wire does the pump have coming out
4 months ago1 Answer
- A: Howdy neighbor! The ECO-FLO 1 HP 230V 3-Wire Submersible Deep Well Pump comes equipped with a short, built-in 14 AWG (American Wire Gauge) motor lead extending from its removable Water-Bloc connector.4 months agoHelpful?
Q: How long do we’ll pumps last?
10 months ago1 Answer
- A: The ECO-FLO Products Inc. Electric Submersible Deep Well Pump is a quality-made pump that, with proper installation and maintenance in clean water conditions, can last for an average of 8 to 15 years. Some homeowners have reported their submersible pumps lasting 20 years or more.10 months agoHelpful?
Q: I ordered EFSYB10-203 It is supposed to be a 3 wire but it has 4 wires???
3 years ago1 Answer
- A: Hi, If you have an issue with your order, please call our customer service team at ***Tractor Supply Customer Service*** 877-718-6750 Monday - Saturday 7am-9pm CST Sunday 8am-7pm CST Closed Easter Sunday and Christmas Day3 years agoHelpful?
Q: what pump do I need to deliver from 200 feet
4 years ago1 Answer
- A: The max depth of this pump is 125 ft. You would need to contact Eco - Flow directly for assistance at 419-281-6571.4 years agoHelpful?
Q: Where is this pump made?
5 years ago1 Answer
- A: Ashland, OH5 years agoHelpful?
Q: Which model do I need for a 400 ft. well? Volume doesn't matter
5 years ago1 Answer
- A: The max depth of this pump is 125 ft. You would need to contact Eco - Flow directly for assistance at 419-281-6571.5 years agoHelpful?
Q: How far can this pump push water?
5 years ago1 Answer
- A: The water output distance is between 32 and 33 feet.5 years agoHelpful?
Q: Will any 1 hp pump control box work with EFSUB10-253?
5 years ago1 Answer
- A: Yes, it should.5 years agoHelpful?
Q: What is the water output distances
5 years ago1 Answer
- A: The water output distance is between 32 and 33 feet.5 years agoHelpful?
Q: Does the deep well pump EFsub10-253 1 horse come with control box?
7 years ago1 Answer
- A: Jacksom, The EFSUB10-253 does NOT include the control box. Thank you for your question.7 years agoHelpful?
