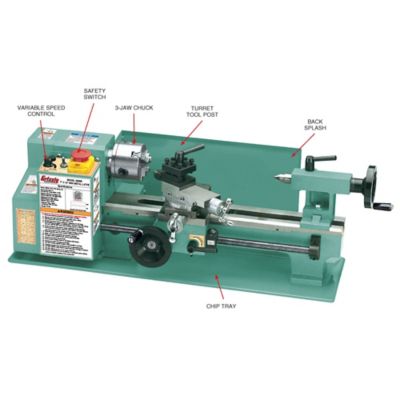

A great starter lathe offered at an incredibly low price! Powered by a 1/3 HP motor, the 7" x 12" Mini Metal Lathe cuts right-handed and left-handed threads while easily fitting on your bench so you can machine your own parts.

The G8688 is equipped with features found on larger lathes including inch and metric dials, a turret tool post, and 3" three-jaw chuck with external jaws.

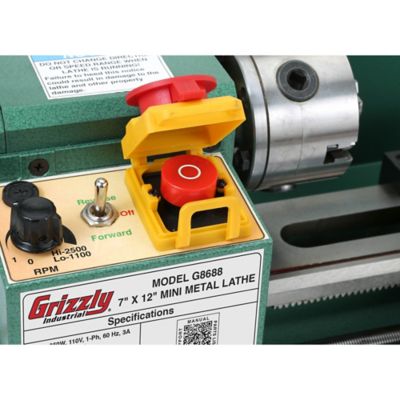

The variable speed spindle control allows you to quickly set the spindle speed within the available range of 0–2500 RPM.

The chip tray and splash guard on the spindle keeps debris contained.

Like all Grizzly lathes, the G8688 comes with a 1-year warranty. Parts for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

The complete and easy-to-read G8688 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

Made in an ISO 9001 factory

SPECIFICATIONS: FEATURES:

• Variable-speed spindle
• 16-TPI reversible leadscrew
• Cuts RH and LH threads
• Forward and reverse in all speeds
• Chip tray and backsplash
• Thread dial indicator
• Inch and metric handwheel graduations

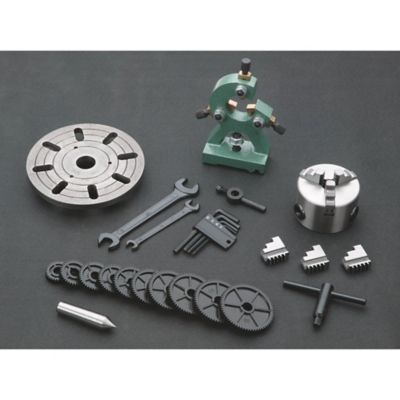

INCLUDES:

• 3" 3-Jaw chuck with external jaws
• 6-1/4"Face plate
• Steady rest

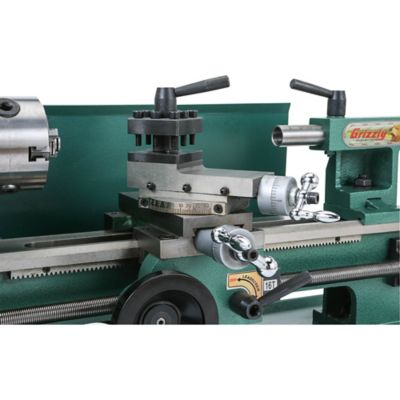

• Four-position turret post
• Complete set of change gears
• MT#2 dead center
• Service wrenches

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
