Grizzly 8 x 16in. Variable-Speed Benchtop, G0768
Grizzly 8 x 16in. Variable-Speed Benchtop, G0768
Item # 229400699
$2,009.99
or
or
Neighbor’s Club Members earn points with purchases.
$2,009.99
or
or
$60/mo.† for 36 months totaling $2160 at 3.99% APR or earn $100 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

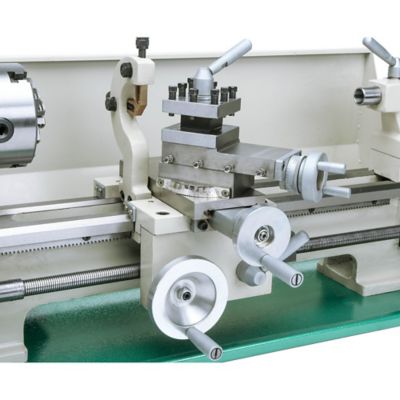

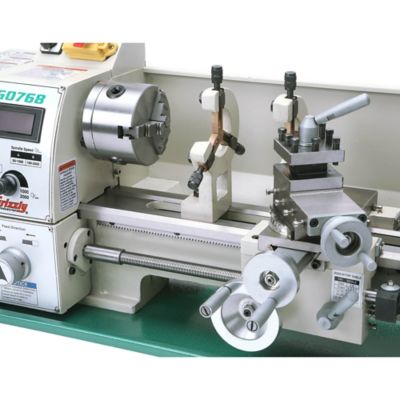

The Grizzly G0768 8" x 16" Variable-Speed Lathe is perfect for a sturdy workbench or as a stand-alone unit when mounted on the T26599 Optional Stand. Features variable-speed spindle with high/low speed ranges, convenient quick-lock tailstock, reverse feed for cutting left-hand threads and a great selection of included standard equipment. Like all Grizzly lathes, the G07658 comes with a 1-year warranty that covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.) The G0768 manual was written by our U.S. based Documentation Department is packed with useful information.
Made in an ISO 9001 factory
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 3/4 HP, 110V, single-phase, 10A
- Swing over bed: 8-1/4"
- Swing over cross slide: 4-5/8"
- Swing over saddle: 6-7/8"
- Distance between centers: 15-3/4"
- Bed width: 4"
- Spindle bore: 0.787" (20mm)
- Spindle type: Intrinsic back plate
- Spindle taper: MT#3
- Tailstock taper: MT#2
- Tailstock quill travel: 2"
- Cross slide travel: 3"
- Compound travel: 2-1/8"
- Spindle speeds: Variable, 50-2000 RPM
- Longitudinal feeds: (2) 0.0037, 0.0068 in./rev.
- Inch thread range: (15) 9-44 TPI
- Metric thread range: (12) 0.4-3.0mm
- Footprint: 10-1/2" x 31-1/2"
- Overall dimensions: 36" W x 16" D x 14" H
- Approximate shipping weight: 166 lbs.

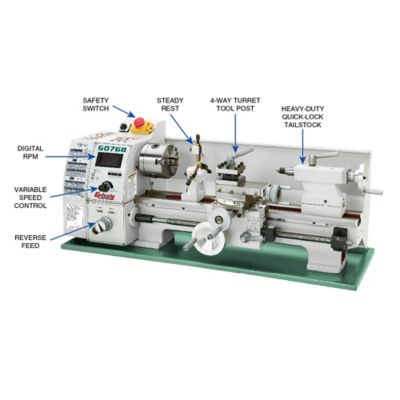

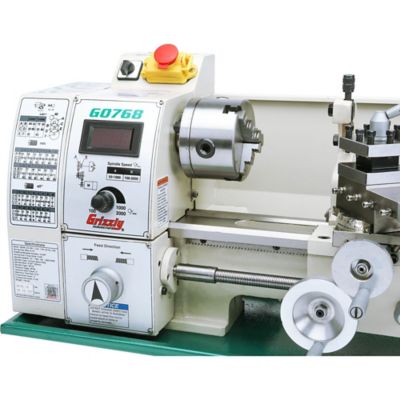

- Electronic variable-speed spindle control with digital readout
- High and low variable spindle speed ranges
- Chip tray and backsplash guard
- Thread dial indicator
- Inch/metric dials
- Emergency stop button
- Quick-locking tailstock
- 4" three-jaw scroll chuck with two sets of jaws
- 4" four-jaw independent chuck with reversible jaws
- 6-3/4" faceplate
- 4-way turret tool post
- Follow rest
- Steady rest
- Tool box with service tools
- Bottle for oil
- Replacement fuse
- MT#2 and MT#3 dead centers
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 10A |
| Bed Length | 15.75 in. |
| Chuck Capacity | 0- See chuck specs |
| Chuck Size | 4 in. |
| Cord Length | 6 ft. |
| Decibel Rating | 0 N/A |
| Features | Variable Speed |
| Horsepower | 0.75 hp |
| Material Compatibility | Metal |
| Maximum Speed | 2000 RPM |
| Minimum Speed | 50 RPM |
| Power Type | Electric |
| Product Height | 14 in. |
| Product Length | 36 in. |
| Product Weight | 144 lb. |
| Product Width | 16 in. |
| Table Length | 0 in. |
| Table Width | 0 in. |
| Variable Speed | Variable Speed |
| Voltage | 110 V |
| Warranty | 1 |
| Manufacturer Part Number | G0768 |
No questions have been asked about this product.
No questions have been asked about this product.
Q&As
No questions have been asked about this product.
No questions have been asked about this product.
Similar Items
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
Items You May Like
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
Reviews
- satisfaction
- purchase
- metal
- cleaning
- price
- adjustability
- results
- accuracy
1 to 4 of 31 Reviews .
1 – 4 of 31 Reviews
Most Recent
NeverAgain
Review 1
1 out of 5 stars.
Do not waste your money, go get a real lathe
a year ago
I bought this machine expecting a capable little lathe, boy was I wrong. This machine has no torque, no locks on any of the axis and is poorly thought through. They give you a 4 jaw chuck but not the bolts to install it. They don't give you a jacobs chuck, and the end stop doesn't have a way to secure a Jacob's chuck. it will not remove steel at any usable rate. I'm so disappointed with this machine the parts I was going to make on it I will now get shipped out. It's a terrible experience to use this machine. No locks means the machine spits hot chips on your arm as you try to hold it steady to get a strait cut.
No, I do not recommend this product.
Originally posted on grizzly.com
Response from grizzly.com:
a year ago
Grizzly Customer Experience Team
We appreciate receiving your review. We're sorry to hear about the problems you've encountered. We'll have a Product Specialist reach out to discuss this with you to see if we can help get this working better for you.
Lathe
NH
Review 1
5 out of 5 stars.
Bench top lathe
a year ago
Very nice and accurate. Love this bench top machine
Yes, I recommend this product.
Originally posted on grizzly.com
Response from grizzly.com:
a year ago
Grizzly Customer Experience Team
We're pleased to hear that you're enjoying the benchtop lathe. Enjoy your time in the shop, and thank you for choosing Grizzly.
Anonymous
Review 1
4 out of 5 stars.
Good starter metal lathe
4 years ago
It came in a good, protective crate with no complaints. Set up was relatively easy, a good learning experience as to how everything works. Motor was quiet and powerful. As my first metal lathe I'm satisfied this will be very useful learning machining. Biggest complaint is the compound. Ruff machining, very time consuming to change the angle and keep it tight. Definitely needs a quick change tool post also. Still, I'm glad I made the purchase and can see lots of learning and projects in the future.
Originally posted on grizzly.com
Anonymous
Review 1
5 out of 5 stars.
6 years ago
Used this lathe has soon as I got it . It has lots of power able to get very good results love it
Originally posted on grizzly.com
