Grizzly G0568-24 in. 5 HP Industrial Bandsaw, G0568
Item # 229395699
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

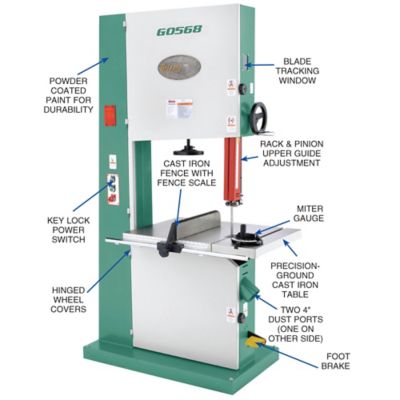

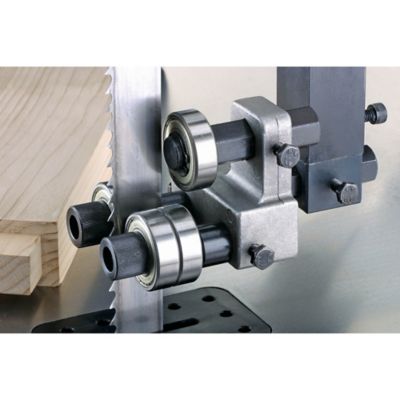

Our 24 in. Industrial Bandsaws are loaded with features not found in saws costing much more. You will appreciate the two 4 in. dust ports when you put the power and speed of this saw to the test. The ball-bearing blade guides ensure accurate cutting, and the quick-release blade tension makes changing blades a breeze. Our exclusive rack-and-pinion table tilt makes accurate angle cuts easy, while also adding additional support to the table for those really big workpieces. The conveniently mounted foot brake, blade guard with scale, and removable safety key are features you will be glad to have.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

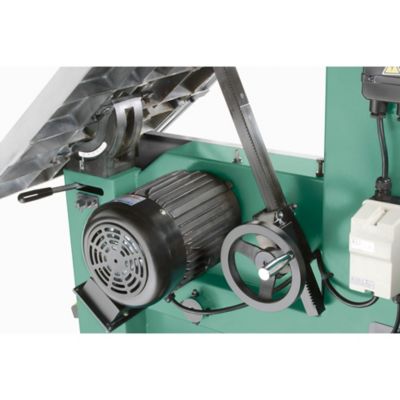

- Motor: 5 HP, 220-Volt, single-phase
- Precision-ground cast-iron table
- Table size: 33-1/2 in. x 23-5/8 in. x 2 in.
- Table tilts 45° for bevel cuts
- Floor-to-table height: 32-1/2 in.
- Table height with included riser: 34-1/2 in.
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 23 A |
| Blade Change Type | Keyless |
| Cord Length | 6 ft. |
| Cut Through | Wood |
| Dust Collection Method | 4 in. dust port |
| Features | Dust Collection |
| Horsepower | 5 HP |
| Housing Material | Steel |
| Maximum Blade Length | 181.5 in. |
| Maximum Blade Width | 1.5 in. |
| Maximum Cutting Width | 23.25 in. |
| Maximum Speed | 5300 FMP |
| Minimum Blade Length | 180 in. |
| Minimum Blade Width | 0.25 in. |
| Minimum Speed | 5300 FMP |
| Number of Speeds | 1 |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 83.5 in. |
| Product Length | 32 in. |
| Product Weight | 836 lb. |
| Product Width | 48 in. |
| Rectangle Length Capacity | 23.25 in. |
| Rectangle Width Capacity | 23.25 in. |
| Round Capacity | 23.25 in. |
| Table Height From Floor | 34.5 in. |
| Table Length | 23.63 in. |
| Table Tilt Range | 0 N/A |
| Table Width | 33.5 in. |
| Variable Speed | Single Speed |
| Voltage | 220 V |
| Warranty | 1 |
| Manufacturer Part Number | G0568 |
