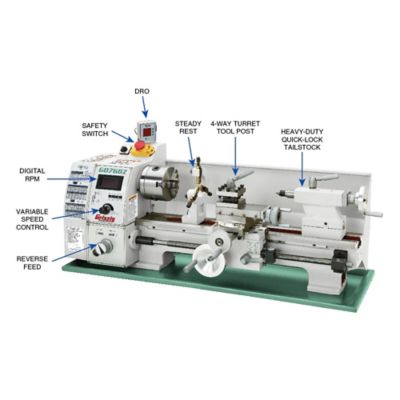

Grizzly 8 x 16in. Variable-Speed Lathe with DRO, G0768Z
Item # 229400799
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
A versatile and precise lathe for making parts. The Grizzly G0768Z features an electronic variable-speed spindle control that ensures cutting precision on every project. Take advantage of the high/low speed ranges and digital RPM readout to increase your efficiency.

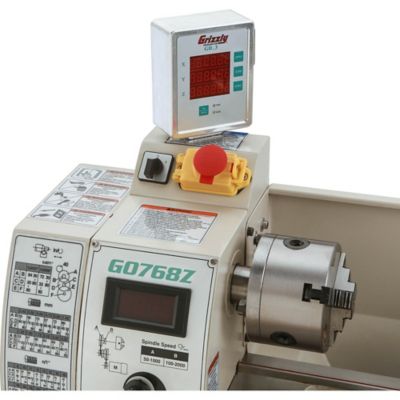

And, with a Fagor X/Z-Axis DRO, you can closely monitor cross slide and carriage travel for the accuracy needed for each step.
This specialized lathe is also equipped with a quick-lock tailstock for smooth and easy adjustments; keep your productivity up while on the job site or in your home workshop!
The G0768Z works perfectly on sturdy workbench or as a stand-alone unit when mounted on the T26599 Optional Stand.
Additionally this lathe has a convenient quick-lock tailstock, reverse feed for cutting left-hand threads, and a great selection of included standard equipment.
The G0768Z manual was written by our U.S.-based Documentation Department is packed with useful information.
Parts for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS:Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 3/4 HP, 110V, single-phase, 10A
- Swing over bed: 8-1/4"
- Swing over cross slide: 4-5/8"
- Swing over saddle: 6-7/8"
- Distance between centers: 15-3/4"
- Bed width: 4"
- Spindle bore: 0.787" (20mm)
- Spindle taper: MT#3
- Tailstock taper: MT#2
- Tailstock quill travel: 2"
- Cross slide travel: 3"
- Compound travel: 2-1/8"
- Spindle speed: Variable, 50-2000 RPM
- Longitudinal feeds: (2) 0.0037, 0.0068 in./rev.
- Inch thread range: (15) 9-44 TPI
- Metric thread range: (12) 0.4-3.0mm
- Footprint: 10-1/2" x 31-1/2"
- Overall dimensions: 36" W x 16" D x 18" H
- Approximate shipping weight: 166 lbs.
- Magnetically mounted X/Z-Axis DRO
- Electronic variable-speed spindle control with digital readout
- High and low variable spindle speed ranges
- Chip tray and backsplash guard
- Thread dial indicator
- Emergency stop button
- Quick-locking tailstock
- 1-year limited warranty
- 4" Three-jaw scroll chuck with two sets of jaws
- 4" Four-jaw independent chuck with reversible jaws
- 6-3/4" Faceplate

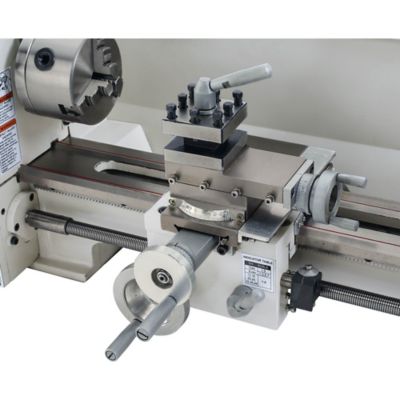

- 4-Way turret tool post
- Follow rest
- Steady rest
- Tool box with service tools
- Bottle for oil
- Replacement fuse
- MT#2 and MT#3 dead centers
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 10A |
| Bed Length | 15.75 in. |
| Chuck Capacity | 0- See chuck specs |
| Chuck Size | 4 in. |
| Cord Length | 6 ft. |
| Decibel Rating | 0 N/A |
| Features | Variable Speed |
| Horsepower | 0.75 hp |
| Material Compatibility | Metal |
| Maximum Speed | 2000 RPM |
| Minimum Speed | 50 RPM |
| Power Type | Electric |
| Product Height | 18 in. |
| Product Length | 36 in. |
| Product Weight | 144 lb. |
| Product Width | 16 in. |
| Table Length | 0 in. |
| Table Width | 0 in. |
| Variable Speed | Variable Speed |
| Voltage | 110 V |
| Warranty | 1 |
| Manufacturer Part Number | G0768Z |
