Grizzly G0694 20 x 43in. Heavy-Duty Variable-Speed
Item # 229398399
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

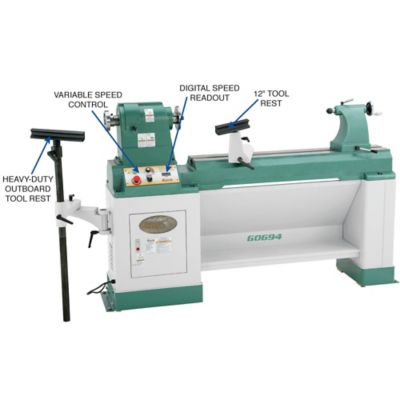

The G0694 20"" x 43"" Variable-Speed Wood Lathe was built for heavy-duty use from the ground up. Starting with its massive cast-iron construction, this lathe will minimize vibration.
The variable-speed control knob and digital RPM readout make it easy to dial in the perfect spindle speed between 100 and 3000 RPM.

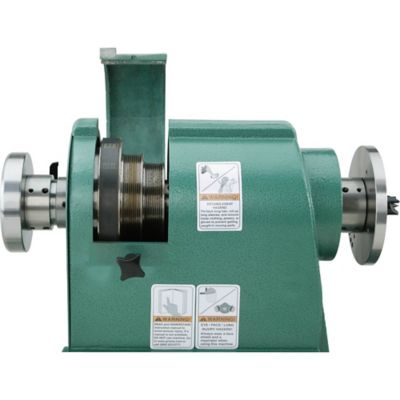

The outboard tool rest and double-sided spindle allows for the turning of workpieces with diameters larger than 20"" on the outboard side of the lathe.
A forward/reverse switch and floor-supported cast-iron outboard tool rest also provide full flexibility for any outboard turning job.
Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.
Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0694 comes with a 1-year warranty.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Motor: 3 HP, 220V, 3-phase (with inverter for single-phase power), 9A
- Required power supply: 220V, single-phase, min. 20A circuit
- Swing over bed: 20"
- Swing over tool rest base: 16-1/4"
- Distance between centers: 43"
- Spindle speed: Variable, 100-3000 RPM
- Spindle threads: 1-1/4" x 8 TPI
- Spindle taper: MT#2
- Tailstock taper: MT#2
- Tool rest width: 13-13/16"
- Tool rest post diameter: 1-1/4"
- Footprint: 16-1/2" x 77"
- Overall dimensions: 103" W x 25" D x 49-1/2" H
- Approximate shipping weight: 814 lbs.
- Precision-ground cast-iron bed
- Single-phase inverter for 3-phase variable-speed motor
- Low speed range of 100-1000 RPM
- Mid speed range of 1000-2000 RPM
- High speed range of 2000-3000 RPM

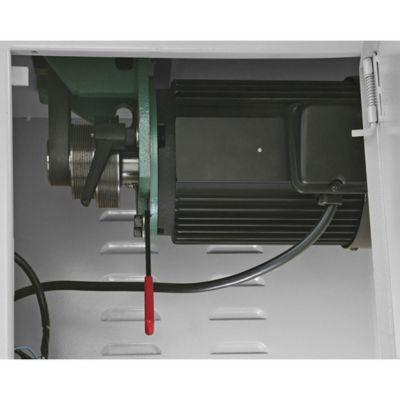

- Quick-release belt tension lever for easy spindle speed range changes
- Digital spindle speed readout
- Forward/reverse spindle control
- 13-3/4" wide outboard tool rest
- Spindle indexed every 15°
- Includes MT#2 live and spur centers
- 1-year limited warranty
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 20 A |
| Bed Length | 43 in. |
| Chuck Capacity | 0 in. |
| Chuck Size | 0 in. |
| Cord Length | 6 ft. |
| Decibel Rating | 0 - Not rated |
| Features | Variable Speed |
| Horsepower | 3 hp |
| Material Compatibility | Wood |
| Maximum Speed | 3000 RPM |
| Minimum Speed | 50 RPM |
| Power Type | Electric |
| Product Height | 49.5 in. |
| Product Length | 103 in. |
| Product Weight | 578 lb. |
| Product Width | 13.75 in. |
| Table Length | 5.125 in. |
| Table Width | 13.8125 in. |
| Variable Speed | Variable Speed |
| Voltage | 220 V |
| Warranty | 1 |
| Manufacturer Part Number | G0694 |
