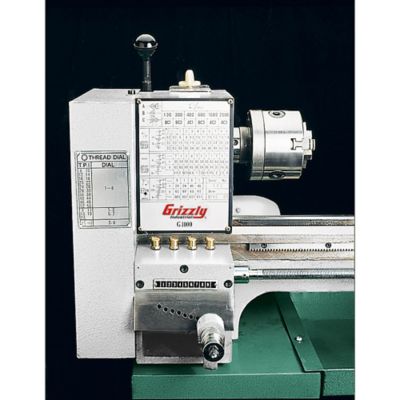

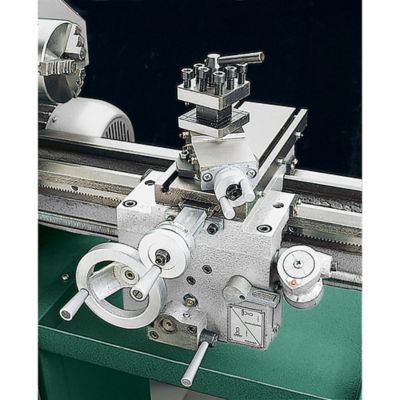

Grizzly G4000-9 in. x 19 in. Bench Lathe, G4000

4.821 Reviews

Item # 229410999

Image showing G4000-9 in. x 19 in. Bench Lathe, G4000

$2,175.00See Price at Checkout

Neighbor’s Club Members earn points with purchases.

Shop all Grizzly

Grizzly G4000-9 in. x 19 in. Bench Lathe, G4000

4.821 Reviews

Item # 229410999

$2175^.00See Price at Checkout

This item is available online only

Delivering to

37027

Neighbor’s Club Members earn points with purchases.

The perfect combination of price and performance. The Grizzly G4000 9" x 19" Bench Lathe is a great lathe for those getting started in metalworking.

It has a number of features and capabilities typically only found on higher-end lathes and it's jam-packed with standard accessories.

The compact size allows this lathe to be mounted to an existing workbench or on the optional G4001 stand.

You won't find a better combination of price and performance on a full-featured 9" x 19" lathe anywhere!

Like all Grizzly lathes, the G4000 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G4000 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the lathe are available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

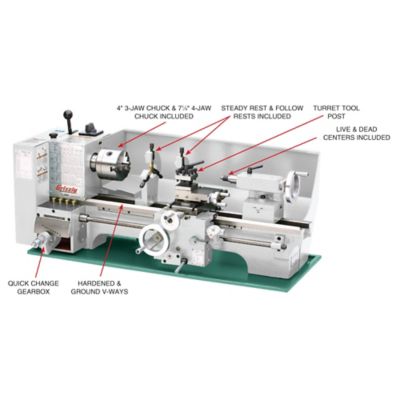

INCLUDES:

4" Three-jaw chuck with two sets of jaws
7-1/4" Four-jaw chuck with reversible jaws
Steady rest
Follow rest
MT#2 dead center
MT#3 dead center
MT#2 live center
4-way tool post
Faceplate
Extra C-type tool post
Tool box & tool kit

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Motor: 3/4 HP, 110V, single-phase 9A
Swing over bed: 8-3/4"
Swing over cross slide: 5"
Distance between centers: 19"
Bed width: 4-1/2"
Spindle bore: 0.78" (20mm)
Spindle type: Threaded, M39-4.0
Spindle taper: MT#3
Tailstock taper: MT#2
Tailstock quill travel: 1-9/16"
Cross slide travel: 4-1/4"
Compound travel: 1-7/8"
Maximum tool bit size: 3/8"
Spindle speeds: (6) 130–2000 RPM
Leadscrew: 9/16" x 16 TPI
Longitudinal feeds: (4) 0.0047–0.0120 in./rev.
Inch thread range: (27) 8–56 TPI
Metric thread range: (11) 0.5–3.0mm
Footprint: 16" x 37"
Overall dimensions: 37" W x 20" D x 15" H
Approximate shipping weight: 294 lbs.

Items You May Like

Reviews

Rating Snapshot

Select a row below to filter reviews.

19 reviews with 5 stars.

1 review with 4 stars.

0 reviews with 3 stars.

0 reviews with 2 stars.

1 review with 1 star.

Overall Rating

4.8

2 out of 2 (100%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

Customer Images and Videos

satisfaction
purchase
small
cutting
noise level
accuracy
instructions
for beginners

1 to 4 of 21 Reviews

1 – 4 of 21 Reviews

Oracle Arizona

Review 1

5 out of 5 stars.

Grizzly G4000 Lathe, great machine for the price

9 months ago

There's not a lot of reviews on the Internet regarding this specific model but the few that I did see pretty accurately describes the pros and cons and I preface my short review with the fact that I am a complete novice when it comes to machining equipment and I am a professional land surveyor by trade so take my short review with a healthy dose of salt. As everyone else has mentioned, you'll spend a fair amount of time cleaning and deburring many of the parts but once that was completed it operated quietly and seemed to have more than adequate power for its intended use. I intended to use this for a project where I have to turn some 5 inch HDPE plastic to make sanitary water well seals and it works fantastic for that but I am also in the process of making a small ship cannon and am using carbon steel and it IS work fantastic in the finishes are good as long as I'm using the correct cutting bit. So far, I'm quite pleased with the performance and considering the price the finish as well but I'm still on a very large learning curve and sometimes ignorance can be bliss.

Yes, I recommend this product.

Response from Grizzly Customer Service:

9 months ago

Grizzly Customer Service

We appreciate your perspective and are glad to hear that the lathe is performing well for your projects. Cleaning and deburring are often part of the setup process, and it’s great to hear that once completed, it’s running smoothly and delivering good results. Your feedback on using it for both HDPE and carbon steel is valuable, and we're happy to know it’s meeting your expectations. Thank you for taking the time to share your experience, and we appreciate your support.

Sonoma, CA

Review 1

5 out of 5 stars.

Works great.

9 months ago

Works great. Glad I didn’t get one of the cheaper lathes on the market. Speed changed with belt and pulleys instead of a variable speed motor like most newer models. Added quick change tool post and some lights. I chose this lathe as it was the only one with available spare parts. I have big trust in Grizzly customer service. Would buy this model again. $100 shipping is a bargain

SweepstakesYes

Yes, I recommend this product.

Response from Grizzly Customer Service:

9 months ago

Grizzly Customer Service

We’re glad to hear that your new lathe is meeting your expectations in the shop. It’s fantastic that you’ve made some great additions. Thank you for choosing our lathe and sharing your feedback. Wishing you lots of success with your projects.

Review 1

5 out of 5 stars.

A very nice benchtop lathe.

9 months ago

As a 46 year master machinist, I knew what I wanted. Based on reviews and company info, I ordered the Grizzly 9X19. After setting it up, lubricating it, and running some parts, I'm not disappointed. It's no Monarch EE, but for a benchtop lathe I'm happy with it.

SweepstakesYes

Response from Grizzly Customer Service:

9 months ago

Grizzly Customer Service

We're pleased to hear the lathe is meeting your expectations. Your feedback is valuable given your 46 years of machining experience, and we truly appreciate you sharing it. Happy woodworking.

WESLEY T

Review 1

5 out of 5 stars.

So far, so good

4 years ago

I've only done some light test cuts with it, but it seems to be a good, light-duty machine. Comes with all the accessories to get started (except tooling).

Originally posted on grizzly.com
