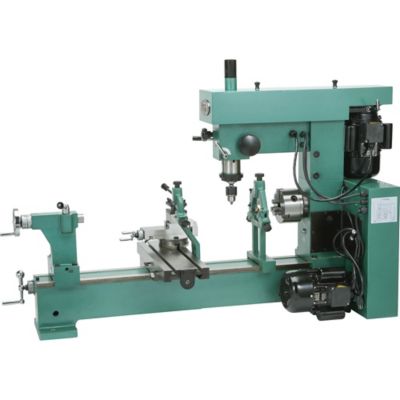

Need a larger combo machine? One with an awesome 31" between centers and 16-1/2" swing? The G9729 31" 3/4 HP Combo Lathe/Mill is the answer.

The lathe cuts inch and metric threads with ease and features a steady rest and a follow rest.

With great features like a magnetic controller and a forward/reverse switch, hardened and ground bedways, two motors for extra power, a built-in milling table with T-slots, and a 4-way turret tool post makes this a real do-it-all machine.

Convenient window allows easy verification of drill spindle speeds.

An incredible machine at an unbeatable price!

Like all lathe mills, the G9729 comes with a 1-year limited warranty.

The G9729 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe mill.

The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

LATHE SPECIFICATIONS: MILL SPECIFICATIONS:
  • Motor: 3/4 HP, 110V, single-phase, 8.8A
  • Swing: 22"
  • Distance from spindle to table: 12"
  • Distance from spindle to bed: 14-1/2"
  • Spindle speeds: 16, 120-3000 RPM
  • Spindle travel: 4-5/16"
  • Spindle taper: MT #3
  • Table dimensions: 6-1/4" W x 18-3/4" L x 1-1/4" H
  • T-slots: two at 7/16", 3.54" (90mm) on center
  • Maximum tool bit size: 1/2"
  • Drilling capacity: 1/2" (steel)
MAIN SPECIFICATIONS:
  • Dimensions: 58" W x 40-1/2" D x 40" H
  • Approximate shipping weight: 692 lbs.
FEATURES:
  • T-slots in cross slide
  • Carriage lock
  • Power cross feed
  • Power longitudinal feed
  • Fine downfeed
  • Hardened and ground bedways
  • Two separate motors
  • Built-in vise
  • Adjustable mill/drill head
STANDARD EQUIPMENT:
  • 1/2" Drill chuck with arbor
  • 2 Dead centers

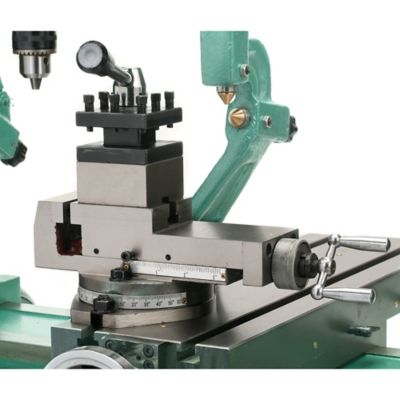

  • 4-Way tool post
  • 5" 3-Jaw chuck
  • 9" Faceplate
  • Change gears
  • Follow rest
  • MT #3 chuck arbor 3/8" x 16 TPI
  • Steady rest
  • Threading dial


    For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

    Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

    • Motor: 3/4 HP, 110V, single-phase, 8.8A
    • Swing over bed: 16-1/2"
    • Swing over cross slide: 11-1/2"
    • Distance between centers: 31"
    • Spindle speeds: 7, 175-1425 RPM
    • Spindle bore: 1-1/8"
    • Spindle taper: MT #4
    • Tailstock barrel taper: MT #3
    • Tailstock travel: 2-1/2"
    • Cross slide travel: 7-1/2"
    • Compound travel: 3"
    • Longitudinal feeds: 24, 0.002-0.014 in/rev
    • Inch thread range: 44, 4-120 TPI
    • Metric thread range: 14, 0.75-6.0mm

    Similar Items

    Items You May Like

    Customers Also Bought

    Reviews

    Rating Snapshot

    Select a row below to filter reviews.
    3 reviews with 5 stars.
    1 review with 4 stars.
    1 review with 3 stars.
    0 reviews with 2 stars.
    1 review with 1 star.

    Overall Rating

    3.8
    1 out of 2 (50%) reviewers recommend this product

    Review this Product

    Select to rate the item with 1 star. This action will open submission form.
    Select to rate the item with 2 stars. This action will open submission form.
    Select to rate the item with 3 stars. This action will open submission form.
    Select to rate the item with 4 stars. This action will open submission form.
    Select to rate the item with 5 stars. This action will open submission form.
    Adding a review will require a valid email for verification

    Customer Images and Videos

    • large
    • disappointing
    • small
    • space saving
    • wheels
    1 to 2 of 6 Reviews
    1 – 2 of 6 Reviews
    Portland Oregon
    Review 1

    Combo mill/ lathe

    2 months ago
    This appear to be a good hobby lathe. I am disappointed with the finish. The manufacturer covered poor casting finish with a polyester filler and then painted it. I would not have noticed, but as there was no surface cleaning the filler fell off the mounting legs legs on the right side of the machine. I will clean the area and repaint hoping not to find large voids or casting sand pockets.

    Yes, I recommend this product.

    Originally posted on grizzly.com

    Response from grizzly.com:
    2 months ago
    Customer Experience Team
    We’re sorry to hear about the finish issue you experienced. This is not typical for our machines, and we want to make it right. Please email us at [email protected] with photos of the areas you mentioned so we can review and assist you further.
    Review 1

    31" 3/4 HP Combo Lathe/Mill

    2 years ago
    So many problems. Even with the gibs tight the saddle wobbles leaving the article you’re working on with a candy cane pattern. The spindle is about four inches to short so you can’t reach small parts mounted on the table to mill, everything needs to be up on stilts or in a large enough vice to take up the space. The lathe spindle continuously leaks oil. The tool rest assembly is so flexible you can see it flex taking as little as a 10 thousands cut on mild steel. The marks on the hand wheels are not to the right scale so they’re useless.

    No, I do not recommend this product.

    Originally posted on grizzly.com

    Response from grizzly.com:
    2 years ago
    Grizzly Customer Experience Team
    We apologize for the challenges encountered with the machine. Please reach out to our Customer Service team to go over available options if you are not satisfied with your purchase. We value your feedback and appreciate your patience as we work towards resolving these matters.

    4 Ratings-Only Reviews
