Grizzly G0632Z-16 in. x 42 in. Variable-Speed Wood L, G0632Z

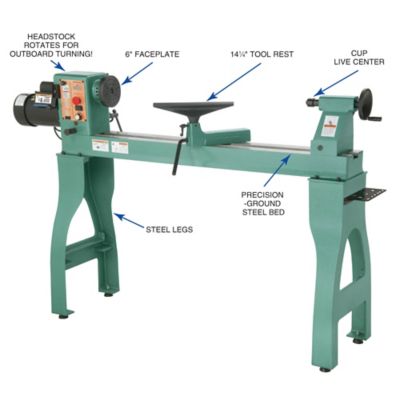

G0632Z 16" x 42" Variable-Speed Wood Lathe If you're looking for a lathe that will handle all of your turning needs, this is the one! The G0632Z 16" x 42" Wood Lathe uses a variable-frequency inverter to control motor speed. The variable-frequency drive runs the 3-phase motor to provide variable-speed control and maximum torque at low speeds.
The variable-speed control allows for spindle speed adjustment from 100-3200 RPM and the digital readout provides a precise reading of the current spindle speed.

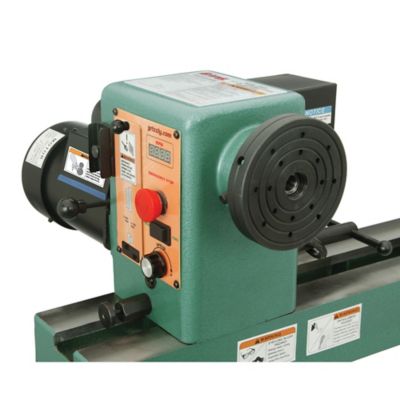

The headstock swivels for outboard turning and can be positioned anywhere along the bed for increased flexibility in workpiece setup. The swivel pin can lock the headstock at 0°, 45°, 90°, 135°, 180°, and 270°.

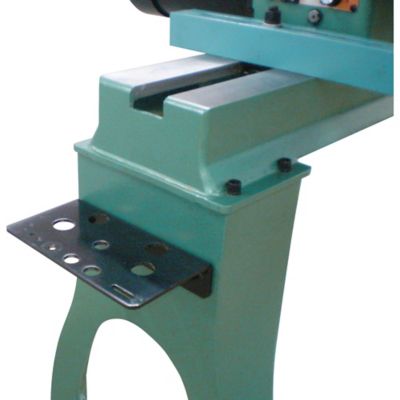

The bed is precision-ground steel for strength and durability and the steel legs can be easily adapted for adding more mass.
The tailstock, headstock, and tool rest support have lever-action cam locks for quick positioning.
Aside from its large turning capacities, this machine has all of the features you would hope for in a heavy-duty wood lathe. FEATURES:- Electronic variable-speed control
- Digital spindle-speed indicator
- 30° direct indexing using one indexing hole
- 10° indexing using all three indexing holes
- Headstock can be positioned anywhere along the bed
- Belt drive offers two speed ranges to maximize spindle torque
- Spindle lock pin
- Outboard spindle handle
- Forward/reverse switch
- Emergency stop switch
- 1-year limited warranty
- Spur center
- Cup live center
- Knockout tool
- Indexing pin
- Tool rest
- 6" face plate
- Hex wrenches
- Motor: 2 HP, 220V, 3-phase (with inverter for single-phase power), 8A
- Required power source: 220V, single-phase, min. 15A circuit
- Swing over bed: 16"
- Swing over tool rest: 11-1/2"
- Distance between centers: 42"
- Spindle taper: MT#2
- Spindle thread size: 1-1/4" x 8 TPI RH
- Tailstock taper: MT#2
- Spindle speed: Variable, 100-3200 RPM
- Headstock rotation: 0°, 45°, 90°, 135°, 180°, 270°
- Tool rest width: 14-1/8"
- Overall dimensions: 77-1/16" L x 22-1/16" W x 47" H
- Approximate shipping weight: 394 lbs.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- SPECIFICATIONS:
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 15 A |
| Bed Length | 42 in. |
| Chuck Capacity | 0 in. |
| Chuck Size | 0 in. |
| Cord Length | 6 ft. |
| Decibel Rating | 0 - Not rated |
| Features | Variable Speed |
| Horsepower | 2 hp |
| Material Compatibility | Wood |
| Maximum Speed | 3200 RPM |
| Minimum Speed | 100 RPM |
| Power Type | Electric |
| Product Height | 47 in. |
| Product Length | 77.5 in. |
| Product Weight | 386 lb. |
| Product Width | 22.5 in. |
| Table Length | 2.56 in. |
| Table Width | 14.125 in. |
| Variable Speed | Variable Speed |
| Voltage | 220 V |
| Warranty | 1 |
| Manufacturer Part Number | G0632Z |
